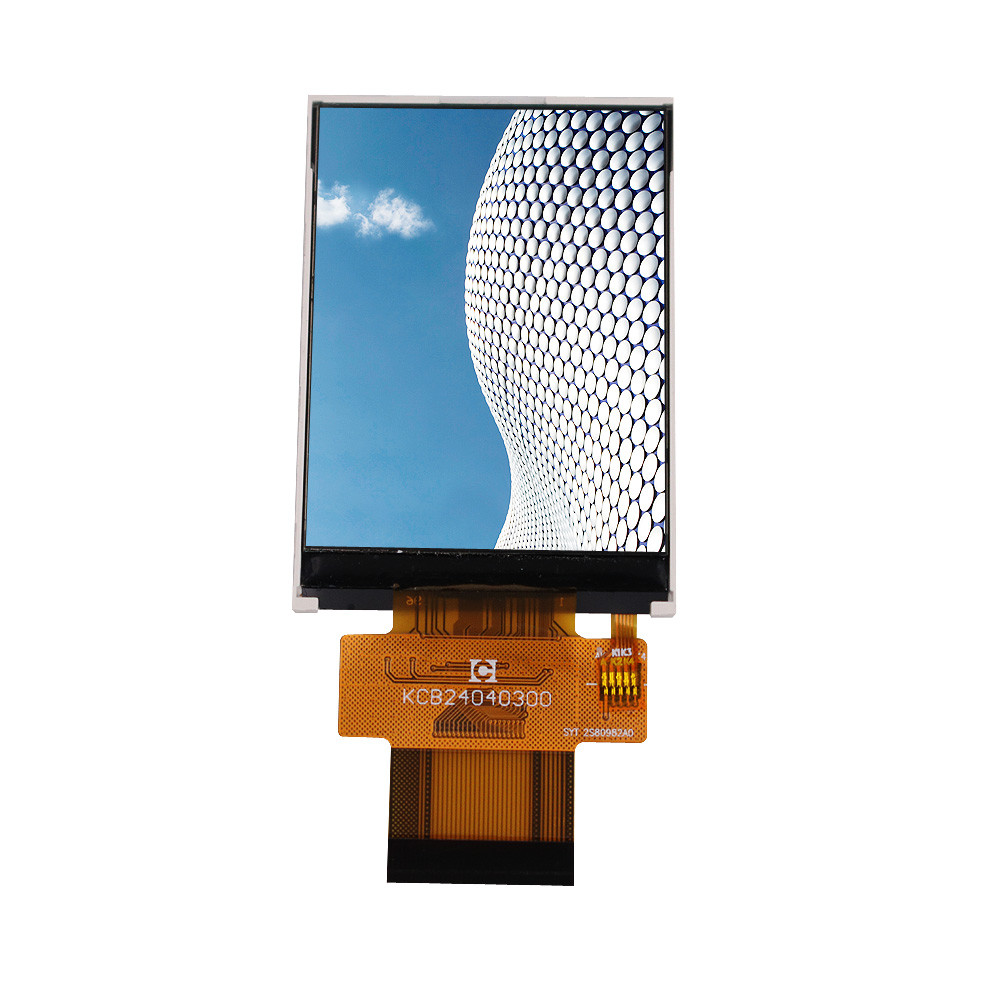

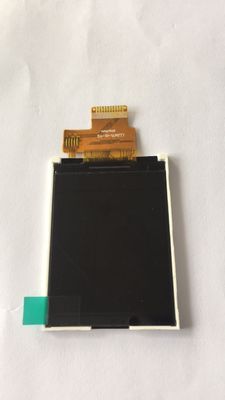

2.4 Inch TFT LCD Touch Screen 350cd/m² TFT Capacitive Touchscreen
General Specifications
Features
| Size | 2.4 |
| Display Format | 240(RGB) × 320 |
| LCD Type | TFT, Transflective, Positive |
| Viewing Direction (Gray Inversion) | 12 O'clock |
| Polaroid | Up: 0.17mm, Down: 0.17mm |
| Backlight | White LED |
| Interface | RGB/MCU |
| Driver IC | ILI9341V |
Mechanical Specifications
| Item | Standard Value | Unit |
|---|
| Outline Dimension | 42.72 (W) × 59.26 (L) × 2.5 (H) ±0.05 | mm |
| Active Area | 36.72 (W) × 48.96 (L) | mm |
| Dot Size | 0.153 (W) × 0.153 (L) | mm |
Note: For detailed information please refer to LCM drawing
Absolute Maximum Ratings (Ta=25℃ VSS=0V)
| Item | Symbol | Min. | Type | Max. | Unit | Humidity |
|---|
| Supply Voltage for Logic | VCI | 2.8 | 3.2 | 3.4 | V | -- |
| IOVCC | | 2.8 | 3.2 | 3.4 | V | -- |
| Power Supply for LCD | VGH-VGL | -0.3 | -- | 32 | V | -- |
| Operating Temperature | TOP | -20 | -- | 70 | °C | Note1 |
| Storage Temperature | TST | -30 | -- | 80 | °C | Note2 |
BIBUKE TFT LCD Module Series
- Our standard TFT LCD Module sizes: 1.44'', 1.77", 2.0", 2.4", 2.8", 3.2", 3.5", 4"(3.97"), 4.3", 5", 7", 8", 9'', 10.1"
- Developed 4.0''(3.97'') LCD module with IPS glass
- Developed 2.4'' to 7.0'' TFT LCD with ZIF FPC connection
- Standard CTP for 3.2'', 3.5'', 4.3", 5.0", 7'', 8'', 10.1''
- High transmittance RTP for 4.3" and 7"
- Can make customized CTP
Packaging & Shipping
Packaging
Carton boxes, Cupboard, EPE, Blister Tray. About the package way, it is up to the size of products, according to customer request and demand. Different countries have not same requirements.
Shipping
Express way as DHL, Fedex, EMS, UPS, air shipping, sea shipping. Any shipping method you prefer.
Payment Method
Products Application Field
- Audio products
- Medical Equipment
- Industrial products (water meter, electronic meter, equipment)
- Automobiles
- Sports Equipment
- Watches
- Household appliances (air condition/wash machine/electronic cooler/refrigerator/disinfection cabinet/wash bowl machine/calculator/electronic scale etc.)
FAQ
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
Answer: No problem. Firstly, please kindly send us your specification/drawing paper. If you have not the specification, you can also provide your samples; we will recommend the suitable one if it is standard products. Or we can customize for you based on your own requirement.
2. This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
Answer: For the segment type LCD module, if you need modify the outline size or display content, a new LCD glass module is needed. We have to open new tooling for you.
3. This LCD display is HTN type, but I want STN type, can you make?
Answer: That's all right. We can change for you as per your request.
4. I want to customize a new LCD module. Can you do?
Answer: Yes, we can. Please send your drawing paper. If you have not, please advise me the outline size of the LCD display, display information (Glass thickness, Polarizer, Display Type, Connector mode, Storage Temp, Operating Temp, Supply Voltage, Viewing direction, drive condition), we can customize for you.
5. What is leading time for tooling?
Answer: Generally speaking, it will cost 15 to 25 days after drawing paper confirmation and tooling charge payment. We can report you the exact time when you confirm the drawing paper.
6. Can you send us samples for checking?
Answer: Yes. Samples order is available.
7. What is the Leading Time?
Answer: If we have stock for the standard ones, the leading time is one day after payment. If it is the mass production for special ones, the leading time is about 15-30 days. Suppose we can finish earlier, we will report the information in advance.
Our Services
- Free repair within one year after the shipment of products from us
- Replacement within 30 days after the shipment of products from us due to products' problems
- We can print your logo and stick your model No. on the cameras
- We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts
- Professional technician supports. We have a good after-sales service team. They can solve your problems in time
- All goods will be inspected and tested by our engineers and QC/QA before packing and shipment
- Customer satisfaction is most important to us. If you have any problem or questions regarding our transaction, please contact us by Email or online. It will be responded within 24 hours
- Products pictures only for your reference. Please kindly refer to the specification. We can provide the products based on the specification. Or you can offer your own specification or drawing, we can customize all kinds of LCD displays for you
List of Existing COB LCD Modules
| Model |
Content Chars×Lines |
Module size W×H(mm) |
View area W×H(mm) |
Dot size W×H(mm) |
Character size W×H(mm) |
Driving Method |
Controller LSI or Equiv |
IC Package |
STN-TYPE |
FSTN-TYPE |
| 8D-C0802A | 8×2 | 84.0×44.0 | 63.0×25.0 | 1.15×1.36 | 6.07×11.56 | 1/16 | S6A0069 | COB | Y | Y |
| 8D-C0802B | 8×2 | 58.0×32.0 | 38.0×16.0 | 0.56×0.66 | 2.95×5.56 | 1/16 | S6A0069 | COB | Y | Y |
| 8D-C1202A | 12×2 | 55.7×32.0 | 46.7×17.5 | 0.45×0.6 | 2.65×5.5 | 1/16 | S6A0069 | COB | Y | Y |
| 8D-C1601A | 16×1 | 80.0×36.0 | 64.5×13.8 | 0.55×0.65 | 3.2×5.95 | 1/16 | S6A0069 | COB | Y | Y |
| 8D-C1601B | 16×1 | 122.0×33.0 | 99.0×13.0 | 0.92×1.1 | 4.84×8.06 | 1/16 | S6A0069 | COB | Y | Y |
| 8D-C1601C | 16×1 | 80.0×36.0 | 64.5×13.8 | 0.6×0.7 | 3.2×8.2 | 1/11 | S6A0069 | COB | Y | Y |
| 8D-C1601D | 16×1 | 85.0×28.0 | 65.0×16.0 | 0.55×0.75 | 3.07×6.56 | 1/16 | S6A0069 | COB | Y | Y |
| 8D-C1601E | 16×1 | 80.0×36.0 | 64.5×13.8 | 0.55×0.75 | 3.07×6.56 | 1/16 | S6A0069 | COB | Y | Y |
| 8D-C1602A | 16×2 | 80.0×36.0 | 64.5×13.8 | 0.55×0.5 | 2.95×4.35 | 1/16 | S6A0069 | COB | Y | Y |
| 8D-C1602B | 16×2 | 122.0×44.0 | 99.0×24.0 | 0.92×1.1 | 4.84×9.66 | 1/16 | S6A0069 | COB | Y | Y |
| 8D-C1602C | 16×2 | 80.0×36.0 | 64.5×15.5 | 0.55×0.66 | 2.96×5.56 | 1/16 | S6A0069 | COB | Y | Y |
| 8D-C1602D | 16×2 | 84.0×44.0 | 64.5×15.5 | 0.55×0.66 | 2.96×5.56 | 1/16 | S6A0069 | COB | Y | Y |
| 8D-C1602E | 16×2 | 85.0×36.0 | 64.5×15.5 | 0.56×0.66 | 2.96×5.56 | 1/16 | S6A0069 | COB | Y | Y |
| 8D-C1602F | 16×2 | 72.0×36.0 | 64.5×15.5 | 0.56×0.66 | 2.96×5.56 | 1/16 | S6A0069 | COB | Y | Y |
| 8D-C1604A | 16×4 | 87.0×60.0 | 62.0×25.6 | 0.55×0.55 | 2.95×4.75 | 1/16 | S6A0069 | COB | Y | Y |
| 8D-C2001A | 20×1 | 116.0×37.0 | 83.0×18.6 | 0.6×0.65 | 3.2×5.55 | 1/16 | S6A0069 | COB | Y | Y |
| 8D-C2002A | 20×2 | 98.0×60.0 | 83.0×18.6 | 0.6×0.65 | 3.2×5.55 | 1/16 | S6A0069 | COB | Y | Y |
| 8D-C2002B | 20×2 | 116.0×37.0 | 83.0×18.6 | 0.6×0.65 | 3.2×5.55 | 1/16 | S6A0069 | COB | Y | Y |
| 8D-C200C | 20×2 | 146.0×43.0 | 123.0×23.0 | 0.92×1.1 | 0.98×1.17 | 1/16 | S6A0069 | COB | Y | Y |
| 8D-C2004A | 20×4 | 98.0×60.0 | 76.0×25.2 | 0.55×0.55 | 2.95×4.75 | 1/16 | S6A0069 | COB | Y | Y |
| 8D-C2004B | 20×4 | 77.0×47.0 | 60.0×22.0 | 0.42×0.46 | 2.3×4.03 | 1/16 | S6A0070 | COB | Y | Y |
| 8D-C2004C | 20×4 | 146.0×62.5 | 123.5×43.0 | 0.92×1.1 | 4.84×9.22 | 1/16 | S6A0069 | COB | Y | Y |
| 8D-C2402A | 24×2 | 118.0×36.0 | 93.5×16.0 | 0.6×0.65 | 3.2×5.55 | 1/16 | S6A0069 | COB | Y | Y |
| 8D-C2402B | 24×2 | 208.0×40.0 | 178.0×23.0 | 1.16×1.16 | 6.0×9.63 | 1/16 | S6A0069 | COB | Y | Y |
| 8D-C4001A | 40×1 | 182.0×33.5 | 154.4×16.5 | 0.6×0.75 | 3.2×6.35 | 1/16 | S6A0069 | COB | Y | Y |
| 8D-C4002B | 40×2 | 182.0×33.5 | 154.4×16.5 | 0.6×0.65 | 3.2×5.55 | 1/16 | S6A0069 | COB | Y | Y |
| 8D-C4004A | 40×4 | 190.0×54.0 | 147.0×29.5 | 0.5×0.55 | 2.78×4.89 | 1/16 | S6A0069 | COB | Y | Y |
| 8D-G12232A | 122×32 | 84.0×44.0 | 60.0×18.5 | 0.4×0.4 | 0.44×0.44 | 1/32 | SED1520 | COB | Y | Y |
| 8D-G12232B | 122×32 | 80.0×36.0 | 55.0×18.5 | 0.36×0.41 | 0.4×0.45 | 1/32 | SED1520 | COB | Y | Y |
| 8D-G12232C | 122×32 | 98.0×60.0 | 76.0×25.2 | 0.53×0.61 | 0.57×0.65 | 1/32 | SED1520 | COB | Y | Y |
| 8D-G12232D | 122×32 | 80.2×47.4 | 76.0×25.2 | 0.53×0.61 | 0.57×0.65 | 1/32 | SED1520 | COB | Y | Y |
| 8D-G12864A | 128×64 | 78.0×70.0 | 62.0×44.0 | 0.39×0.55 | 0.44×0.6 | 1/64 | S6B0108A | COB | Y | Y |
| 8D-G12864B | 128×64 | 105.0×60.5 | 72.0×40.0 | 0.48×0.48 | 0.52×0.52 | 1/64 | S6B0108A | COB | Y | Y |
| 8D-G12864C | <td
