3.5 Inch 240*320 Dots ST7789 Driver 20PIN TFT LCD Display With Capacitive Touch

1000
MOQ
DISCUSSABLE
Price
3.5 Inch 240*320 Dots ST7789 Driver 20PIN TFT LCD Display With Capacitive Touch
Features Gallery Product Description Chat Now
Features
Specifications
Operating Temperature: -20~+70℃
Backlight Type: LED
Panel Type: IPS TFT LCD Display
Tp Option: With Capacitive Touch Panel
Luminace: 250cd/m2
Fpc: 20pin
Highlight:

3.5 inch TFT LCD display with capacitive touch

,

240x320 ST7789 driver TFT screen

,

20PIN capacitive touch LCD panel
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
3.5 Inch 240*320 Dots ST7789 Driver 20PIN TFT LCD Display With Capacitive Touch
Product Overview
High-quality 3.5-inch TFT LCD display featuring capacitive touch technology, ideal for various industrial and consumer applications.
Technical Specifications
LCD Type TFT
Panel Size 3.5 Inch (Diagonal)
Resolution 240*320 Pixels
LCD Driver IC ST7789T3
TP Driver IC FT6347
LCD Interface SPI
Detailed Product Specifications
NO. ITEM SPECIFICATIONS
1 Product Name 3.5-inch TFT LCD Display with capacitive touch
2 LCD Type Transmissive, IPS
3 Resolution 240x320 dots
4 Structure G+F
5 LCD Operating Temperature -20~+70℃
6 FPC Connector 20 pins, ZIF type, 0.5 mm
7 Interface SPI(LCD)+IIC(Touch screen)
8 Backlight Type 8 LEDs, White, 160mA
9 Outline Dimension 57.96(W)* 93.00(H)* 3.65(T) mm
10 LCD Active Area 51.27(W)* 68.36(H) mm
11 Driver IC ST77989T3 + FT6347

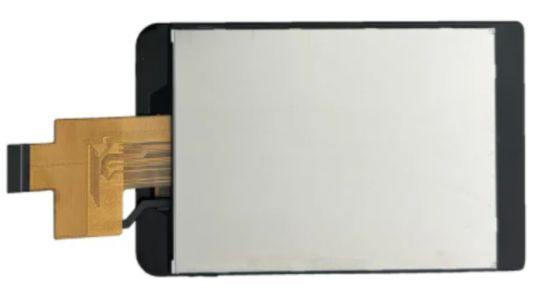

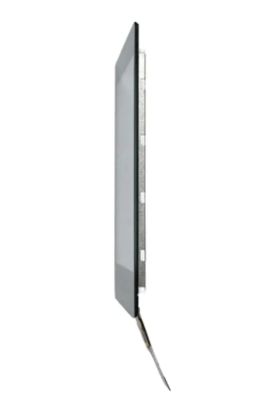

3.5 Inch 240*320 Dots ST7789 Driver 20PIN TFT LCD Display With Capacitive Touch 0 3.5 Inch 240*320 Dots ST7789 Driver 20PIN TFT LCD Display With Capacitive Touch 1
Packaging & Shipping

Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements, with variations for different countries.

3.5 Inch 240*320 Dots ST7789 Driver 20PIN TFT LCD Display With Capacitive Touch 2

Shipping: Available via DHL, Fedex, EMS, UPS, air shipping, or sea shipping. Customers can choose preferred shipping method.

3.5 Inch 240*320 Dots ST7789 Driver 20PIN TFT LCD Display With Capacitive Touch 3

Payment Method:

3.5 Inch 240*320 Dots ST7789 Driver 20PIN TFT LCD Display With Capacitive Touch 4
Frequently Asked Questions
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?

Answer: Please send us your specification/drawing. If unavailable, we can recommend suitable standard products or customize based on your requirements.

2. This LCD is just what we want, but it is big size, do you have any smaller size?

Answer: For segment type LCD modules requiring size or display content modifications, new LCD glass modules with tooling would be required.

3. This LCD display is HTN type, but I want STN type, can you make?

Answer: Yes, we can modify the display type according to your requirements.

4. I want to customize a new LCD module. Can you do?

Answer: Yes, we can customize based on your specifications. Please provide drawings or details including outline size, display information, glass thickness, polarizer type, connector mode, temperature requirements, and drive conditions.

5. What is lead time for tooling?

Answer: Typically 15-25 days after drawing confirmation and tooling payment. Exact timeline will be confirmed upon drawing approval.

6. Can you send us samples for checking?

Answer: Yes, sample orders are available.

7. What is the Lead Time?

Answer: Standard products in stock ship within 1 day after payment. Special mass production orders typically require 15-30 days, with updates provided if completion is earlier than expected.

Our Services
  • Free repair within one year after shipment
  • Replacement within 30 days for product-related issues
  • Custom logo and model number printing available
  • Competitive shipping rates through established partnerships
  • Professional technical support and after-sales service
  • Rigorous quality inspection before shipment
  • 24-hour response to customer inquiries
  • Customization services based on customer specifications
Product Applications
  • Household appliances: refrigerators, air conditioners, fans, heaters, washing machines, etc.
  • Communication equipment: telephones, interphones, fax machines, wireless wifi
  • Automotive electronics: entertainment systems, navigators, car audio, cameras
  • Instruments: water meters, electric meters, multimeters, electronic scales
  • Fitness equipment: treadmills, fitness bikes, training devices
  • Financial equipment: POS machines, banknote counting machines
  • Consumer electronics: MP3/MP4 players, electronic dictionaries, calculators

Features: High resolution, high definition, high brightness, cost-effective, energy efficient, wide temperature range operation.


3.5 Inch 240*320 Dots ST7789 Driver 20PIN TFT LCD Display With Capacitive Touch 5
