Home /Products/TFT LCD Touch Screen/5.0 Inch TFT Lcd Touch Screen 800 * 480 RGB Interface High Brightness

5.0 Inch TFT Lcd Touch Screen 800 * 480 RGB Interface High Brightness

1000
MOQ
DISCUSSABLE
Price
5.0 Inch TFT Lcd Touch Screen 800 * 480 RGB Interface High Brightness
Features Gallery Product Description Chat Now
Features
Specifications
Panel Size: 5inch(diagonal)
Backlight: LED
Number Of Pins: 40 Pins
Brightness: 300 Cd / M2
Tft Interface: RGB
Display Outline Size: 120.70 ( W ) X 76.30 ( H ) X 4.4 ( D ) Mm
Highlight:

5.0 inch TFT LCD touch screen

,

800x480 RGB interface display

,

high brightness TFT LCD Display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description

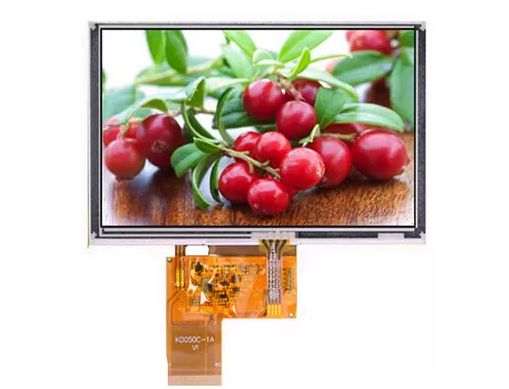

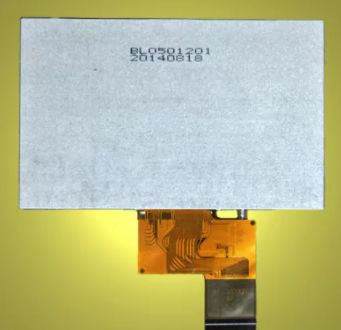

5.0 Inch TFT LCD Touch Screen 800×480 RGB Interface High Brightness
Product Overview

High-quality 5.0 inch TFT LCD display with 800×480 resolution, RGB interface, and optional touch screen capability. Features high brightness of 300 cd/m² and 16M colors for vibrant visual performance.

Key Specifications
Resolution 800×480
Size 5.0 Inch
Viewing Direction 12 O'Clock
TFT Mode TFT, Transmissive
Detailed Technical Parameters
Item Content Description
1 Display outline size 120.70 (W) × 76.30 (H) × 4.4 (D) mm
2 VA size 108.00 (W) × 64.80 (H)
3 Resolution 800 (RGB) × 480
4 With/Without Touch screen RTP optional / Without
5 Interface 24-bit RGB Strip
6 Brightness 300 Cd/m²
7 Color 16M Colors
8 Drive IC ILI9881C
Our Certificates
  • GB/T19001-2016 idt ISO9001:2015
  • CE & ROHS
  • SGS of LCD Display
Structure Diagram
5.0 Inch TFT Lcd Touch Screen 800 * 480 RGB Interface High Brightness 0
5.0 Inch TFT Lcd Touch Screen 800 * 480 RGB Interface High Brightness 1 5.0 Inch TFT Lcd Touch Screen 800 * 480 RGB Interface High Brightness 2
5.0 Inch TFT Lcd Touch Screen 800 * 480 RGB Interface High Brightness 3 5.0 Inch TFT Lcd Touch Screen 800 * 480 RGB Interface High Brightness 4
Product Demonstration
