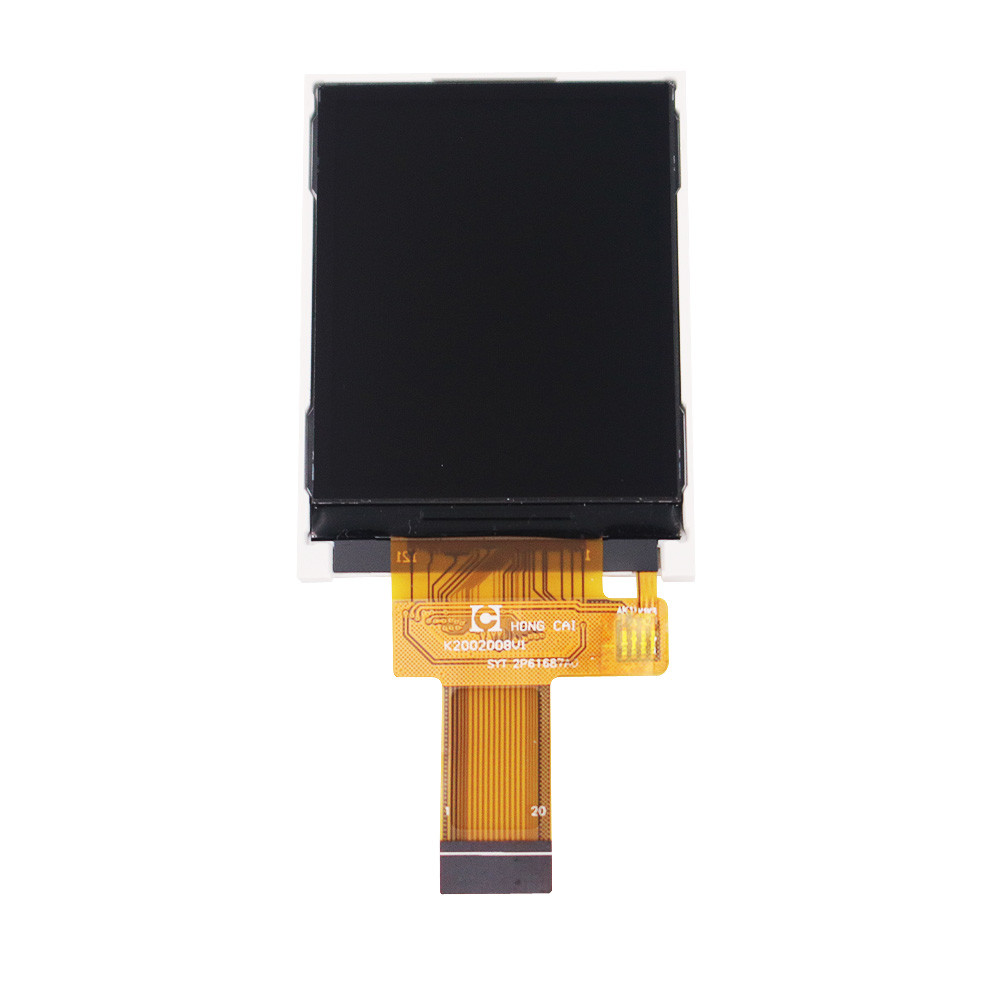

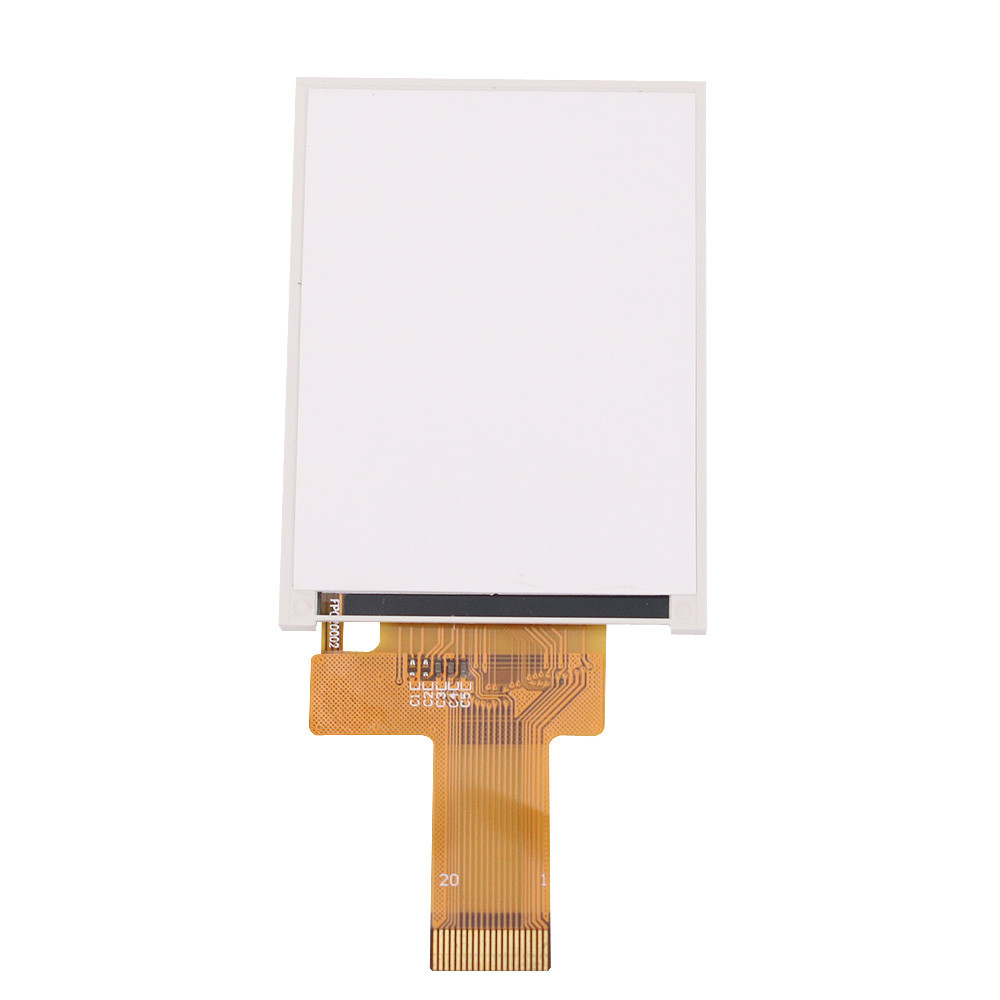

Transflective / Positive TFT LCD Touch Screen 3.3V 4.3 Inch ST7775R
General Specifications
Features
| Item |
Standard Value |
| Display Format |
176(RGB) * 220 |
| LCD Type |
TFT, Transflective, Positive |
| Viewing Direction |
12 O'clock |
| Polaroid |
Up:0.17mm, Down:0.17mm |
| Backlight |
White LED |
| Interface |
MCU |
| Driver IC |
ST7775R |
Mechanical Specifications
| Item |
Standard Value |
Unit |
| Outline Dimension |
51.30 (W) * 37.68 (L) * 2.2(H)(±0.05) |
mm |
| Active Area |
39.60 (W) * 31.68 (L) |
mm |
| Dot Size |
0.180 (W) * 0.180 (L) |
mm |
Note: For detailed information please refer to LCM drawing
Absolute Maximum Ratings (Ta=25℃ VSS=0V)
| Item |
Symbol |
Min. |
Type |
Max. |
Unit |
Humidity |
| Supply Voltage for Logic |
VCI |
-0.3 |
-- |
4.6 |
V |
-- |
| IOVCC |
|
-0.3 |
-- |
4.6 |
V |
-- |
| Power Supply for LCD |
VGH-VGL |
-0.3 |
-- |
32 |
V |
-- |
| Operating Temperature |
TOP |
-20 |
-- |
70 |
°C |
Note1 |
| Storage Temperature |
TST |
-30 |
-- |
80 |
°C |
Note2 |
