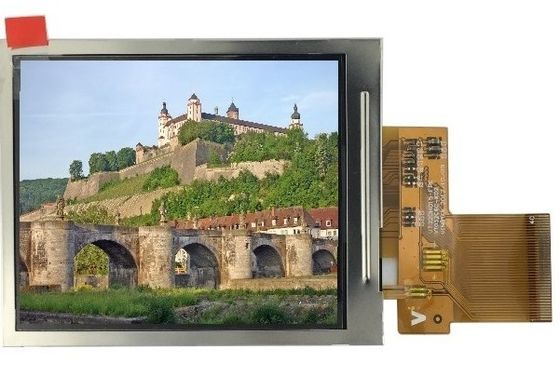

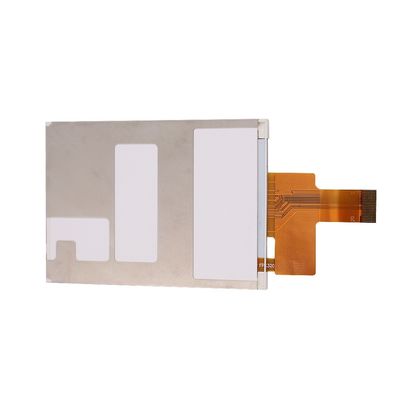

300nits TFT LCD Touch Screen 240 * RGB * 320 A-Si TFT Driver IC ST7789V
Product Description
High-performance TFT LCD Touch Screen with 240 × RGB × 320 resolution, featuring A-Si TFT technology and ST7789V driver IC.
General Specifications
| Item |
Specification |
| Display Format |
240 × RGB × 320 pixel |
| Outline Dimension |
55.04(W) × 77.20(H) × 2.5±0.05(T) mm |
| LCD Dimension |
51.60 × 71 mm |
| Active Area |
48.60 × 64.80 mm |
| Dot Size |
0.2025 × 0.2025 mm |
| Backlight |
Normal Black |
| Interface |
R.G.B Stripe |
| Viewing Direction |
12 o'clock |
| LCD Type |
a-Si TFT |
| Driver IC |
ST7789V |
Pin Assignments
| PIN |
Pin Definition |
Function Declaration |
| 1 |
LEDK |
Cathode of backlight |
| 2 |
LEDA |
Anode of backlight |
| 3 |
GND |
Ground |
| 4 |
RESET |
Reset signal, keep Low for more than 10ms after power-on |
| 5 |
SDA |
DIN/SDA: serial data input/output bi-direction pin. Fix to DGND level when not in use |
| 6 |
SCL |
Serial data output bi-direction pin. Let it open in MPU interface mode |
| 7 |
RS |
Read signal, rising-edge-active |
| 8 |
CS |
Chip select input signal. Low: selected and accessible. High: not selected |
| 9 |
TE |
Tearing Effect output signal. Leave pin open when not in use |
| 10-16 |
GND |
Ground |
| 17-20 |
NC |
No connection |
