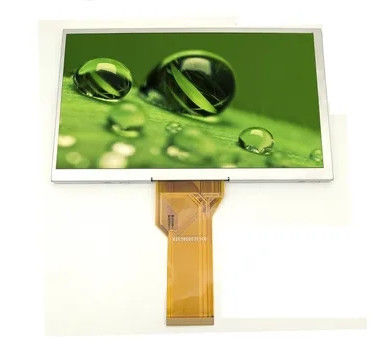

Digital Interface 7 Inch TFT LCD Screen 50 Pin LCD Display RGB 800×480 Resolution

1000
MOQ
DISCUSSABLE
Price
Digital Interface 7 Inch TFT LCD Screen 50 Pin LCD Display RGB 800×480 Resolution
Features Gallery Product Description Chat Now
Features
Specifications
Name: 7 Inch TFT LCD Screen
Viewing: 6 O'clock
Supplier Type: OEM/ODM
Customize: Support
Viewing Area: 154.08(W) × 85.92(H) Mm
Optimum Resolution: 800*480
Screen Size: 7 Inches
Highlight:

7 Inch TFT LCD Screen 800×480

,

7 Inch TFT LCD Screen Display

,

7 Inch 50 Pin LCD Display RGB
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Model Number: BBI-001
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
Digital Interface 7 Inch TFT LCD Screen 50 Pin LCD Display RGB 800×480 Resolution
Key Features and Specifications
  • Screen Size: 7 inches measured diagonally
  • Resolution:
    • 800x480 (WVGA) - Most common resolution for 7-inch TFT LCDs
    • 1024x600 - Available in higher-end 7-inch screens
  • Aspect Ratio: 16:9 widescreen format
  • Display Technology:
    • TFT (Thin Film Transistor) for superior color reproduction and refresh rates
    • LED backlighting for energy efficiency and brightness
Technical Specifications
No. Item Specifications
1 Product Name 7.0 Inch TFT display
2 Display Mode Normally white, Transmissive
3 Viewing Angle 6 O'clock
4 Pixel arrangement RGB Vertical stripe
5 Resolution 800 RGB(H) x 480(V) Dots
6 Operating Temperature -20~+70℃
7 Storage Temperature -30~+80℃
8 FPC Connector 50PIN, socket type
9 FPC PITCH 0.5 mm
10 Backlight Power Consumption 1.674W (Typ.)
11 Panel Power Consumption 0.226W (Typ.)
12 Interface Digital/RGB
13 Luminance 250 cd/m2
14 Contrast ratio 500
15 Outline Dimension 164.9(W) ×100.0(H) ×5.7(D) mm
16 Active Area 154.08(W) × 85.92(H) mm
Digital Interface 7 Inch TFT LCD Screen 50 Pin LCD Display RGB 800×480 Resolution 0 Digital Interface 7 Inch TFT LCD Screen 50 Pin LCD Display RGB 800×480 Resolution 1
Packaging & Shipping

Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements, which may vary by country.

Digital Interface 7 Inch TFT LCD Screen 50 Pin LCD Display RGB 800×480 Resolution 2

Shipping: Available via DHL, Fedex, EMS, UPS, air shipping, or sea shipping - customer preference.

Digital Interface 7 Inch TFT LCD Screen 50 Pin LCD Display RGB 800×480 Resolution 3

Payment Method: Various options available

Digital Interface 7 Inch TFT LCD Screen 50 Pin LCD Display RGB 800×480 Resolution 4
Frequently Asked Questions
Can you customize LCD displays with different specifications?

Yes, we can customize LCD displays based on your specifications or samples. Please provide your detailed requirements or drawings.

Can you modify display content or size?

For segment type LCD modules, modifying outline size or display content requires new tooling for LCD glass modules.

Can you change display types (e.g., from HTN to STN)?

Yes, we can modify display types according to your requirements.

What is the lead time for tooling?

Typically 15-25 days after drawing confirmation and tooling payment.

Do you provide samples?

Yes, sample orders are available.

What is the production lead time?

For standard products in stock: 1 day after payment. For custom mass production: 15-30 days.

Our Services
  • Free repair within one year after shipment
  • Replacement within 30 days for defective products
  • Custom logo printing and model number labeling
  • Competitive shipping rates through established partnerships
  • Professional technical support and after-sales service
  • Rigorous quality control and testing before shipment
  • 24-hour response to customer inquiries
  • Custom LCD display manufacturing based on specifications
Product Applications
  • Household appliances: Refrigerators, air conditioners, washing machines, microwave ovens, etc.
  • Communication equipment: Telephones, interphones, fax machines, wireless wifi
  • Automotive electronics: On-board entertainment systems, navigation, cameras
  • Instruments: Water meters, electric meters, multimeters, analytical instruments
  • Fitness equipment: Treadmills, fitness bikes, electronic scales
  • Financial equipment: POS machines, tax control invoice machines
  • Consumer electronics: MP3/MP4 players, electronic dictionaries, calculators
