Home /Products/IPS TFT LCD Display/NT35510 Driver IC IPS TFT LCD Display 3.97 Inch with MCU 16bit Interface 16.7M Colors

NT35510 Driver IC IPS TFT LCD Display 3.97 Inch with MCU 16bit Interface 16.7M Colors

1000
MOQ
DISCUSSABLE
Price
NT35510 Driver IC IPS TFT LCD Display 3.97 Inch with MCU 16bit Interface 16.7M Colors
Features Gallery Product Description Chat Now
Features
Specifications
Resolution: 480*800 Pixels
Product Type: IPS TFT LCD Screen
Screen Type: TFT
Screen Size: 3.97 Inches
Interface: MCU16 Bit
Light Source: White LED*8
Colors: 16.7M
Aspect Ratio: 16:9
Highlight:

MCU 16bit interface IPS TFT LCD Display

,

16.7M colors TFT LCD Screen

,

NT35510 driver IC LCD Display Module
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
NT35510 Driver IC IPS TFT LCD Display 3.97 Inch with MCU 16bit Interface 16.7M Colors
3.97inch MCU 16bit IPS TFT LCD Display With Capacitive Touch Panel
NT35510 Driver IC IPS TFT LCD Display 3.97 Inch with MCU 16bit Interface 16.7M Colors 0 NT35510 Driver IC IPS TFT LCD Display 3.97 Inch with MCU 16bit Interface 16.7M Colors 1
Key Specifications

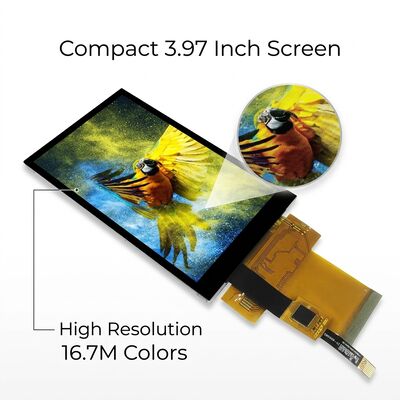

Display Size 3.97 Inch
Resolution 480RGB × 800
Viewing Angle 12 O'Clock

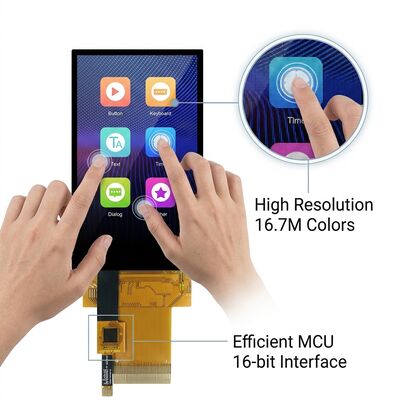

Interface MCU16 Bit
Driver IC NT35510
Detailed Dimensions
Component Dimensions (mm)
LCM Dimensions 57.14 × 96.85 × 2.30
CTP Dimensions 57.86 × 97.70 × 1.38
Assembly Dimensions 57.86 × 97.70 × 3.93
Display Characteristics
  • IPS Technology: Wide viewing angle (80° typical) with consistent color and contrast
  • Color Depth: 16.7 million colors for realistic image reproduction
  • Brightness: 380Cd/m² for clear visibility in most environments
  • Contrast Ratio: 800:1 for excellent light/dark differentiation
  • Response Time: 35ms for smooth image transitions

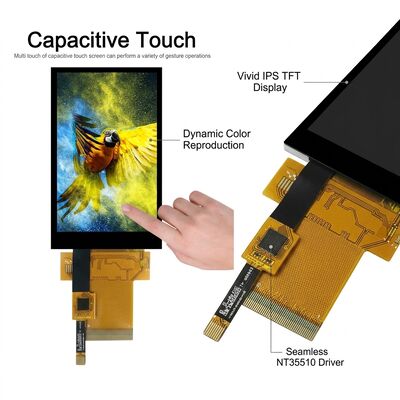

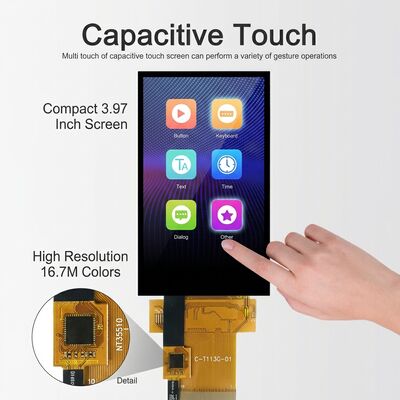

Capacitive Touch Panel Features
  • Technology: Projected capacitive (5-point multi-touch)
  • Transparency: ≥85% for clear display visibility
  • Surface Hardness: ≥6H for scratch resistance
  • Structure: G+F+F (glass + film + film)
  • Interface: IIC for easy system integration
Environmental Specifications
Compliant with RoHS environmental standards for reduced environmental impact.
Temperature Range Specification
Operating Temperature -20℃ to 70℃
Storage Temperature -30℃ to 80℃

NT35510 Driver IC IPS TFT LCD Display 3.97 Inch with MCU 16bit Interface 16.7M Colors 2
