Home /Products/IPS TFT LCD Display/7 Inch IPS TFT LCD Module 1024x600 200 cd/m² Brightness

7 Inch IPS TFT LCD Module 1024x600 200 cd/m² Brightness

1000
MOQ
DISCUSSABLE
Price
7 Inch IPS TFT LCD Module 1024x600 200 cd/m² Brightness
Features Gallery Product Description Chat Now
Features
Specifications
Brightness: 200 Cd/m²
Backlight Technology: LED
Display Mode: Normal Black
Size: 7 Inches
Connectivity: RGB
Resolution: 1024x 600 Pixels
Lcd Type: TFT
Touch Screen: Customized
Highlight:

7 inch IPS TFT LCD module

,

1024x600 resolution LCD screen

,

200 cd/m² brightness TFT display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description

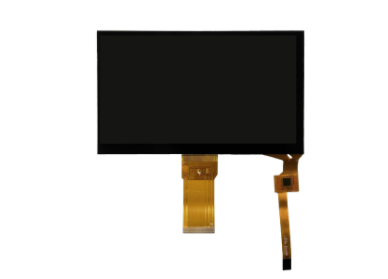

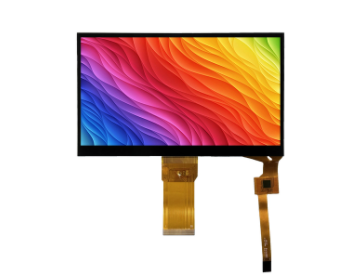

7 Inch IPS TFT LCD Module 1024x600 200 cd/m² Brightness
High-quality 7-inch IPS TFT LCD module featuring 1024x600 resolution with capacitive touch screen. Designed for indoor use with 200nits brightness, this display module offers excellent viewing angles and reliable performance.
Key Features
  • 7-inch IPS TFT LCD display with 1024×600 resolution
  • Capacitive touch screen with GT911 TP IC
  • 200 cd/m² brightness for indoor applications
  • Wide operating temperature range: -20°C to +70°C
  • Compact module size: 165×100×5.4 mm
  • 3.3V operating voltage with HX8282+HX8696 driver IC
Technical Specifications
Type TFT
Display Size 7 inch
Backlight Type LED
Resolution 1024×600
Brightness 200cd/㎡
Operating Temperature -20°C~+70°C
Display Type IPS
Mounting Type PCB
Driver IC HX8282+HX8696
Dot Matrix 1024×600 dots
Display Mode Normal Black
Viewing Angle ALL
Module Size 165(W)×100(H)×5.4(T) mm
Active Area 154.21(W)×85.92(H) mm
Storage Temperature -30°C~+80°C
TP IC GT911
Operate Voltage 3.3V
7 Inch IPS TFT LCD Module 1024x600 200 cd/m² Brightness 0
7 Inch IPS TFT LCD Module 1024x600 200 cd/m² Brightness 1
Manufacturer Information

We are a professional LCD display manufacturer with extensive experience, located in Dongguan, Guangdong Province, China - the world's manufacturing center.

Our capabilities include customizing various LCD displays with glass thickness options from 1.1mm to 0.4mm, and producing TN, HTN, STN, FSTN LCM models with COB, TAB, COG, TFT technologies and LED backlight solutions.

Certified with ISO 9001, RoHS, SGS, and Reach CE standards, we maintain strict quality control with multiple production lines to ensure timely delivery and product excellence.

DONG GUAN BIBUKE Electronics Technology Co., Ltd. welcomes your business inquiries.

Production Line Capabilities
  • Clean Room class 10k@0.8um, Pressure 0.8kgf
  • Antistatic floor, resistance: 1x10 ohm to 1x10 ohm
  • 4 COG production lines
  • 2 Backlight production lines
  • Monthly production capacity of 1 million units
7 Inch IPS TFT LCD Module 1024x600 200 cd/m² Brightness 2
7 Inch IPS TFT LCD Module 1024x600 200 cd/m² Brightness 3
7 Inch IPS TFT LCD Module 1024x600 200 cd/m² Brightness 4

7 Inch IPS TFT LCD Module 1024x600 200 cd/m² Brightness 5
