Home /Products/IPS TFT LCD Display/2.2 " Small TFT LCD Display Transflective LCD Display Components With IPS Viewing

2.2 " Small TFT LCD Display Transflective LCD Display Components With IPS Viewing

1000
MOQ
DISCUSSABLE
Price
2.2 " Small TFT LCD Display Transflective LCD Display Components With IPS Viewing
Features Gallery Product Description Request A Quote
Features
Specifications
Color: 262K
Touch Screen: No
Number Of Dots: 320RGB * 320
Outline Size: 40.6 ( W ) × 56.6 ( H ) × 2.7 ( T )
Display Area: 36.72(H)x48.96(V)mm
Display Type: IPS TFT LCD
Highlight:

2.2 inch small TFT LCD display

,

transflective LCD display components

,

IPS viewing TFT LCD display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
2.2" Small TFT LCD Display Transflective LCD Display Components With IPS Viewing
Key Specifications
Resolution 240 (RGB) × 320
Size 2.2 Inch
Viewing Direction 12 O'Clock
TFT Mode TFT, Transmissive
Detailed Product Features
Item Content Description
1 Display outline size 40.6 (W) × 56.6 (H) × 2.7 (T)
2 VA size 33.84 (W) × 45.12 (H)
3 Resolution 320RGB × 320
4 Viewing Direction ALL
5 Interface RGB
6 Technology Type a-Si TFT
7 Color 262K
8 Controller IC ST7789V

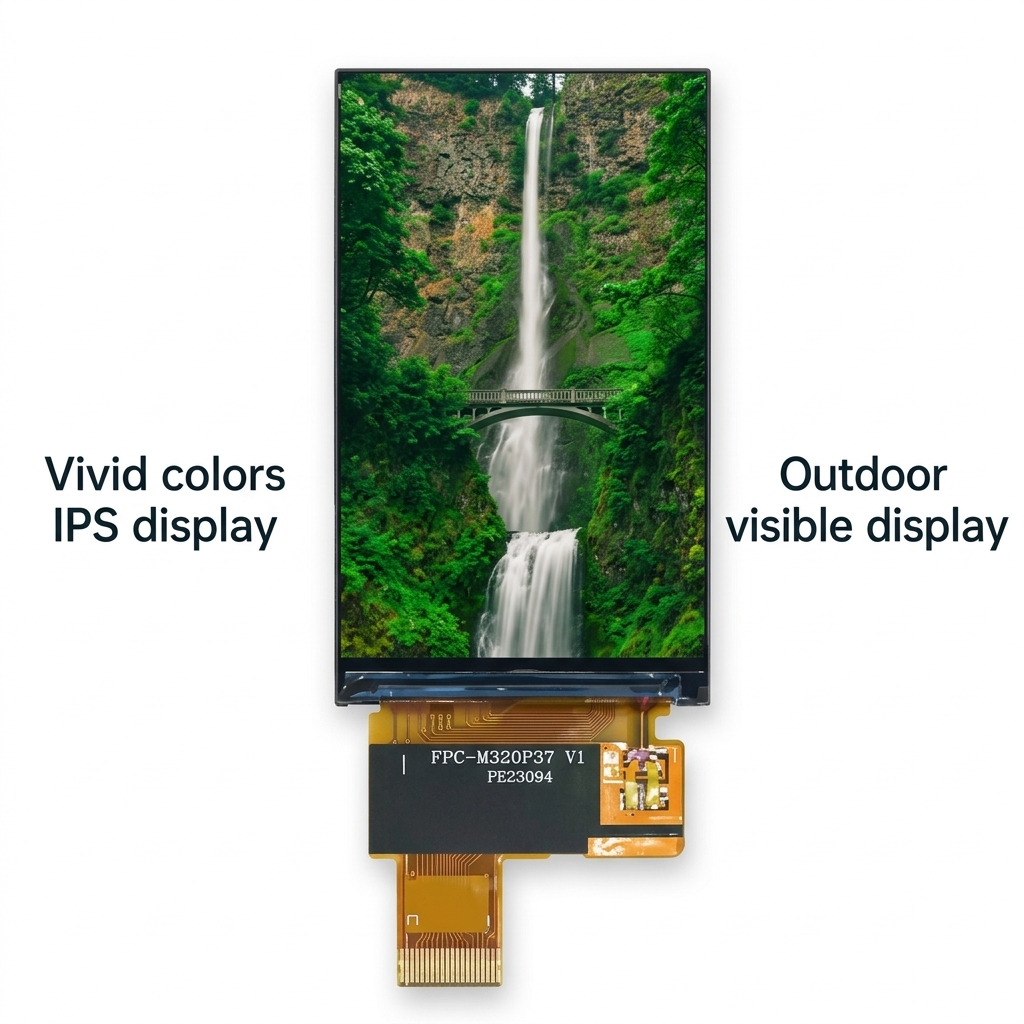

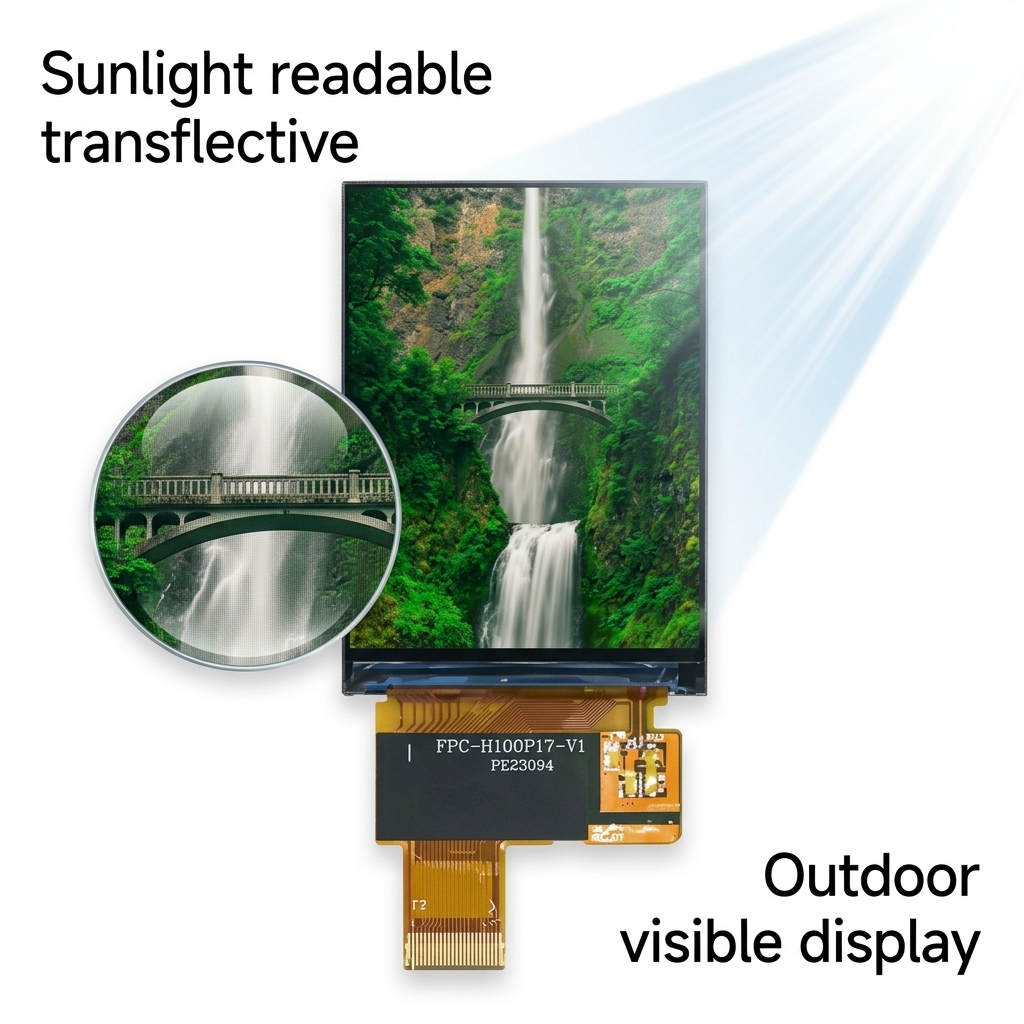

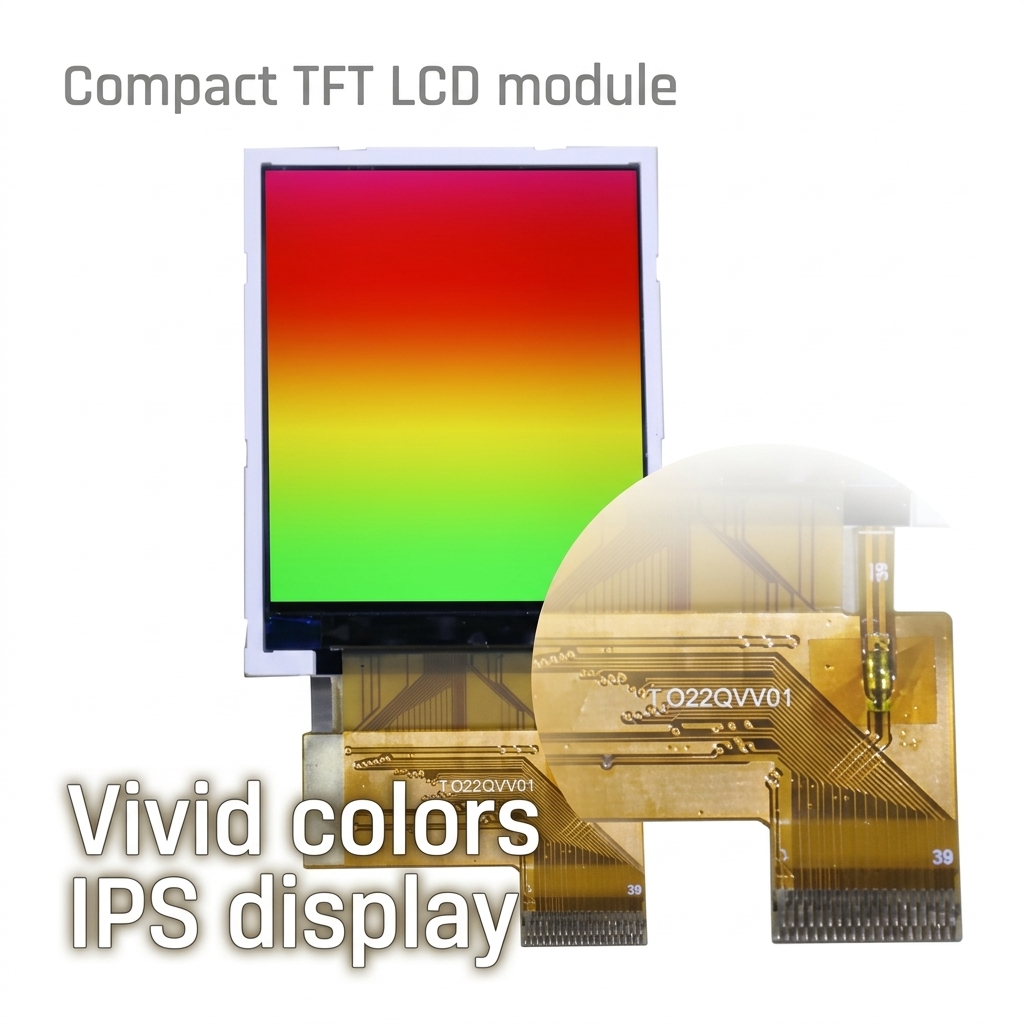

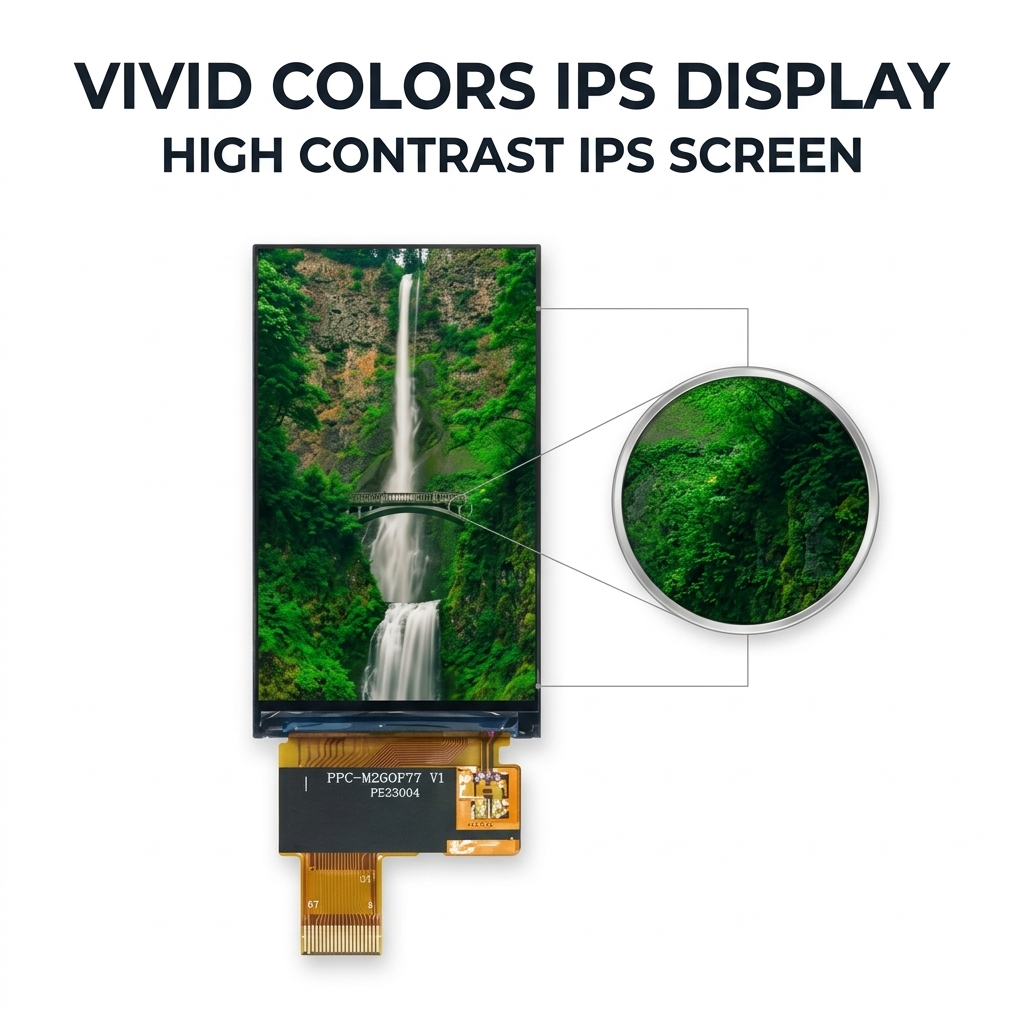

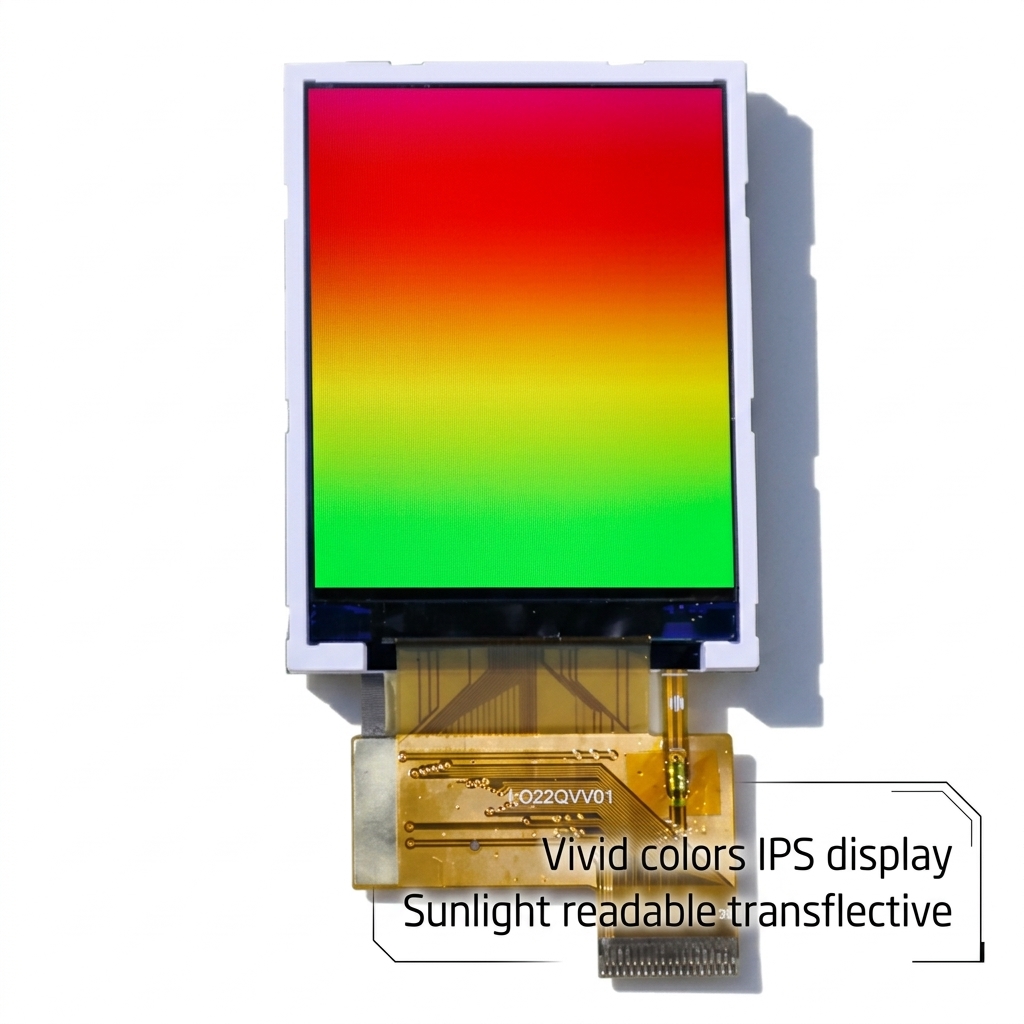

2.2 inch TFT LCD display front view 2.2 inch TFT LCD display side view
TFT LCD display technical diagram TFT LCD display pin configuration
