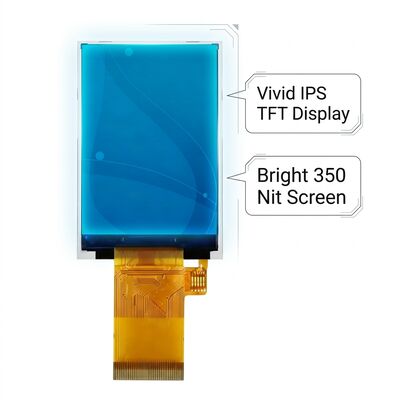

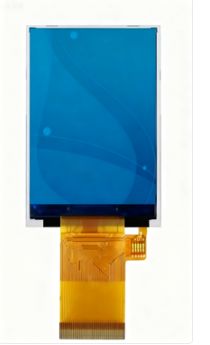

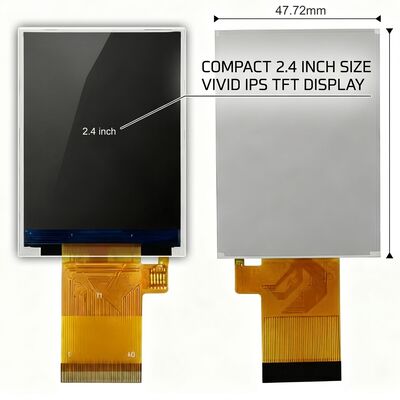

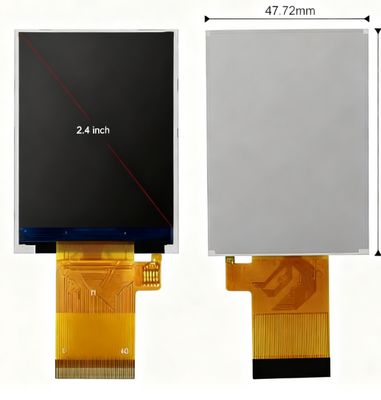

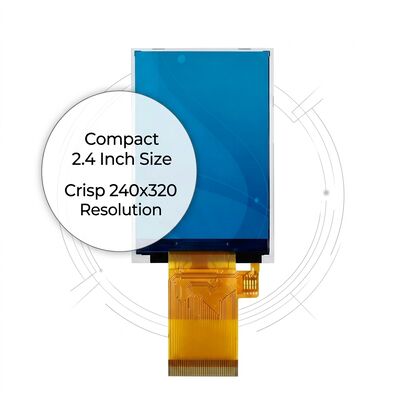

2.4 Inch IPS TFT LCD Display 240x320 with 350 Nit Brightness / MCU RGB Interface

2.4 Inch IPS TFT LCD Display 240x320 with 350 Nit Brightness / MCU RGB Interface
Features Gallery Product Description Chat Now
Features
Specifications
Storage Temperature: -30 To 80 Degrees Celsius
Outline Dimensions: 42.72*60.26*2.30
Operating Temperature: -20 To 70 Degrees Celsius
Display Mode: TFT
Supplier Type: Manufacturer
Active Area: 36.72*48.96
Lcd Resolution: 240x320 Dots
Touch Type: With/without RTP/CTP
Highlight:

350 Nit IPS TFT LCD Display

,

2.4 Inch TFT LCD Display

,

240x320 Resolution LCD Display Module
Basic Infomation
Payment & Shipping Terms
Product Description
2.4 Inch IPS TFT LCD Display 240x320 with 350 Nit Brightness / MCU RGB Interface
350 Nit 2.4 Inch IPS TFT LCD Display 240x320 48.96mm MCU RGB Interface. Newly published IPS TFT LCD display designed for commercial and industrial applications. This high-quality display features a 2.4-inch diagonal screen with 240×320 resolution and 350 nits brightness, delivering clear visibility in various lighting conditions.
Technical Specifications
Parameter Value
Size (inch) 2.4
Resolution 240×320
Active Area (mm) 36.72×48.96
Pixel Pitch (μm) 51×153
Outline Dimension (mm) 42.72×60.26×2.30
Pixel Arrangement RGB Vertical Stripe
Display Mode Normally Black
Viewing Angle ALL
Display Colors 262K
Brightness (cd/m²) 350
Contrast Ratio 600:1
Interface MCU 8/16 BIT RGB 16/18BIT
Back-light LED Side-light type
Driver IC ST7789V
Operation Temperature (°C) -20~70
Storage Temperature (°C) -30~80
Response Time (ms) 35
Pin Number 40
2.4 Inch IPS TFT LCD Display 240x320 with 350 Nit Brightness / MCU RGB Interface 0 2.4 Inch IPS TFT LCD Display 240x320 with 350 Nit Brightness / MCU RGB Interface 1
Key Features
  • High-Quality Display: 2.4-inch diagonal size with 36.72mm × 48.96mm active area
  • Sharp Resolution: 240×320 QVGA resolution with high pixel density for clear text and graphics
  • Bright Visibility: 350nit brightness ensures clear display in various lighting conditions
  • Advanced IPS Technology: 170° wide viewing angle with consistent colors from any angle
  • Flexible Interface Options: Supports MCU (8/16-bit) and RGB (16/18-bit) interfaces
  • Reliable Driver: ST7789V driver IC ensures stable operation
  • Wide Temperature Range: Operates from -20°C to +70°C, stores from -30°C to +80°C
  • Environmentally Friendly: Complies with REACH and RoHS standards

2.4 Inch IPS TFT LCD Display 240x320 with 350 Nit Brightness / MCU RGB Interface 2
