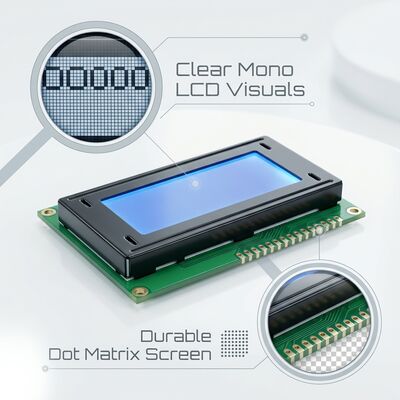

15.6 inches Mono LCD Display 240x128 Dot Matrix 1/128 Duty 5V DC/DC
Monochrome LCD Display 240x128 Dot Matrix 1/128 Duty 5V DC/DC
General Specification
Features
- Display format: 240 × 128 dot-matrix; 1/128 duty
- Construction: STN/FSTN LCD, Bezel, Zebra, PCB
- Optional LED/EL/CCFL back-light
- Built-in controller T6963C or equivalent
- 5V single power input with built-in DC/DC converter for LCD driving
- Available in normal or extended temperature types
Mechanical Data
| Parameter |
Standard Value |
Unit |
| Dot size |
0.40 (W) × 0.40 (H) |
mm |
| Dot pitch |
0.45 (W) × 0.45 (H) |
mm |
| Viewing area |
114.0 (W) × 64.0 (H) |
mm |
| Module size (LED/CCFL back-light) |
144.0 (W) × 104.0 (H) × 13.7 max (T) |
mm |
Absolute Maximum Ratings
| Parameter |
Symbol |
Min |
Max |
Unit |
| Logic Circuit Supply Voltage |
VDD-VSS |
0 |
7.0 |
V |
| LCD Driving Voltage |
VDD-VO |
0 |
26 |
V |
| Input Voltage |
VI |
VSS |
VDD |
V |
| Normal temp. type Operating Temp. |
TOP |
0 |
50 |
°C |
| Normal temp. type Storage Temp. |
TSTG |
-20 |
70 |
°C |
| Extended temp. type Operating Temp. |
TOP |
-20 |
70 |
°C |
| Extended temp. type Storage Temp. |
TSTG |
-30 |
80 |
°C |
Packaging & Shipping
Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements, which may vary by country.
Shipping: Available via DHL, FedEx, EMS, UPS, air shipping, or sea shipping - any preferred method.
Payment Method: Multiple options available.
FAQ
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
Answer: Please send us your specification/drawing. If unavailable, we can recommend suitable standard products or customize based on your requirements.
2. This LCD is what we want but too large - do you have smaller sizes?
Answer: For segment type LCD modules requiring size or content modification, we can create new tooling for customized solutions.
3. This LCD display is HTN type, but I want STN type - can you make?
Answer: Yes, we can modify the display type per your request.
4. I want to customize a new LCD module. Can you do this?
Answer: Yes, please provide your drawing or specifications including outline size, display information, glass thickness, polarizer type, etc.
5. What is the lead time for tooling?
Answer: Typically 15-25 days after drawing confirmation and tooling payment.
6. Can you send samples for checking?
Answer: Yes, sample orders are available.
7. What is the lead time?
Answer: 1 day for standard products in stock, 15-30 days for mass production of special orders.
Our Services
- Free repair within one year after shipment
- Replacement within 30 days for product issues
- Custom logo and model number printing available
- Discounted shipping rates through our partnerships
- Professional technical support and after-sales service
- All products inspected and tested before shipment
- 24-hour response to customer inquiries
- Custom LCD display solutions available
Product Applications
Household appliances: Refrigerators, air conditioners, fans, heaters, water heaters, electric blankets, air purifiers, washing machines, dryers, vacuum cleaners, microwave ovens, cookers, rice cookers, etc.
Communication equipment: Telephones, interphones, fax machines, wireless wifi
Automotive electronics: Entertainment systems, navigators, audio systems, reverse radars, cameras, anti-theft devices
Instruments: Water meters, electric meters, multimeters, electronic scales, pressure meters, temperature meters
Fitness equipment: Treadmills, exercise bikes, training devices, pedometers, weighing scales
Financial: Tax control cash machines, POS systems, banknote counting machines
Consumer electronics: MP3/MP4 players, DVDs, electronic dictionaries, calculators
Features: High resolution, high definition, high brightness, energy efficient, wide temperature range
List of Existing COB LCD Modules
| Model |
Content |
Module Size (W×H mm) |
View Area (W×H mm) |
Dot Size (W×H mm) |
Character Size (W×H mm) |
Driving Method |
Controller LSI |
IC Package |
STN-Type |
FSTN-Type |
| 8D-C0802A |
8×2 |
84.0×44.0 |
63.0×25.0 |
1.15×1.36 |
6.07×11.56 |
1/16 |
S6A0069 |
COB |
Y |
Y |
List of Existing COB LCD Modules (Continued)
| Model |
Content (W×H) |
Module Size (W×H mm) |
View Area (W×H mm) |
Dot Size (W×H mm) |
Dot Pitch (W×H mm) |
Driving Method |
Controller LSI |
IC Package |
STN-Type |
FSTN-Type |
| 8D-C2004A |
20×4 |
98.0×60.0 |
76.0×25.2 |
0.55×0.55 |
2.95×4.75 |
1/16 |
S6A0069 |
COB |
Y |
Y |
