STN Yellow Green Monochrome LCD Display Module 20x4 Character LCD Display 16 pin

1000
MOQ
DISCUSSABLE
Price
STN Yellow Green Monochrome LCD Display Module 20x4 Character LCD Display 16 pin
Features Gallery Product Description Chat Now
Features
Specifications
Name: Monochrome LCD Display Module
Viewing Direction: 6 O'clock
Strorage Temp: -30-80'C
Dot Size: 0.55mm(L)*0.4mm(W)
Viewing Area: 76(W)*26(H) Mm
PCB Size: 98(L)*60(W)*13(D) Mm
Highlight:

Monochrome LCD Display 20x4

,

Monochrome LCD Display Module

,

20x4 Character LCD Display 16 pin
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Model Number: BBI-001
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
STN Yellow Green Monochrome LCD Display Module 20x4 Character LCD Display 16 pin
High-quality STN Yellow Green Monochrome LCD Display Module featuring 20x4 character display with 16-pin interface.
Key Specifications
  • Display Type: STN/Yellow-green, Transflective, Positive
  • Display Mode: 20 characters x 4 lines
  • Backlight Type: Side LEDs, Olive
  • Driving Method: 1/16 Duty, 1/5 Bias, 4.7V
  • Interface: 4-bits or 8-bits interface
  • Viewing Angle: 6 O'clock
Technical Details
Structure LCD + IC + ZEBRA + BL + PCB
PCB Size 98(L)*60(W)*13(D) mm
Viewing Area 76(W)*26(H) mm
Dot Size 0.55(W)*0.55(H) mm
Operating Temperature -20~+70 °C
Storage Temperature -30~+80 °C

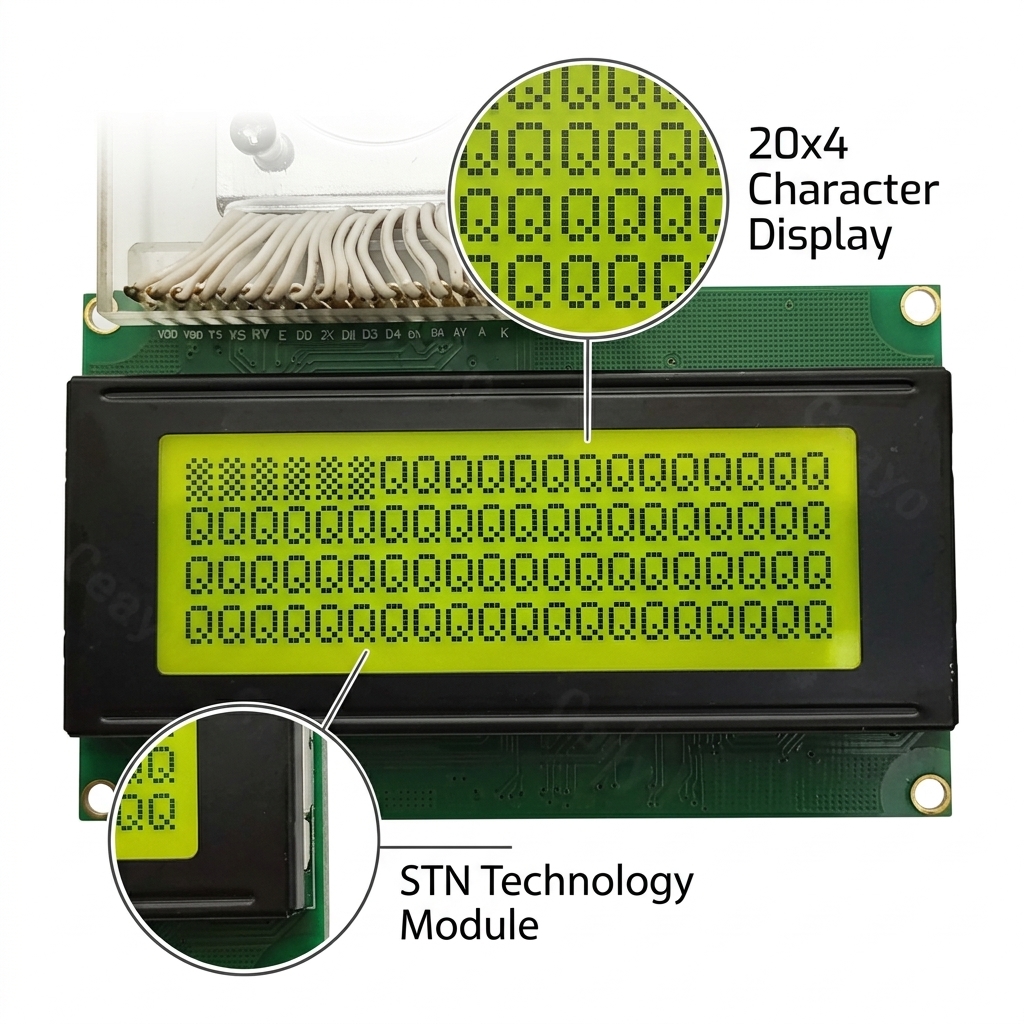

STN Yellow Green Monochrome LCD Display Module 20x4 Character LCD Display 16 pin 0 STN Yellow Green Monochrome LCD Display Module 20x4 Character LCD Display 16 pin 1
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
No problem. Please send us your specification/drawing. If you don't have specifications, you can provide samples and we'll recommend suitable products or customize based on your requirements.
This LCD is what we want but too large. Do you have smaller sizes?
For segment type LCD modules requiring size or content modifications, we'll need to create new tooling for a custom LCD glass module.
This LCD is HTN type, but I want STN type. Can you make it?
Yes, we can modify the display type according to your requirements.
I want to customize a new LCD module. Can you do this?
Yes, we offer custom LCD solutions. Please provide your specifications including outline size, display information, glass thickness, polarizer type, connector mode, and operating conditions.
What is the lead time for tooling?
Typically 15-25 days after drawing confirmation and tooling payment. Exact timeline will be confirmed upon specification approval.
Can you send samples for evaluation?
Yes, sample orders are available for standard products.
What is the lead time?
For standard products in stock: 1 day after payment. For custom mass production: 15-30 days (we'll update if completed earlier).
Our Services
  • Free repair within one year after shipment
  • Replacement within 30 days for defective products
  • Custom logo and model number printing
  • Competitive shipping rates through established partnerships
  • Professional technical support and responsive after-sales service
  • Rigorous quality control with pre-shipment testing
  • 24-hour response time for customer inquiries
  • Full customization services for LCD displays
LCD Module Product Line
Character/Graphic LCD Modules
Model Content (W×H) Module Size (W×H mm) View Area (W×H mm) Dot Size (W×H mm) Dot Pitch (W×H mm) Driving Method Controller LSI IC Package STN-Type FSTN-Type
8D-C2004A 20×4 98.0×60.0 76.0×25.2 0.55×0.55 2.95×4.75 1/16 S6A0069 COB Y Y
Small LCD Display Screens
Model Content (Chars×Lines) Module Size (W×H mm) View Area (W×H mm) Dot Size (W×H mm) Character Size (W×H mm) Driving Method Controller LSI IC Package STN-Type FSTN-Type
8D-C0802A 8×2 84.0×44.0 63.0×25.0 1.15×1.36 6.07×11.56 1/16 S6A0069 COB Y Y

STN Yellow Green Monochrome LCD Display Module 20x4 Character LCD Display 16 pin 2
