6 O'clock Monochrome LCD Panel , Dot Matrix LCD Display 160x128

1000
MOQ
DISCUSSABLE
Price
6 O'clock Monochrome LCD Panel , Dot Matrix LCD Display 160x128
Features Gallery Product Description Chat Now
Features
Specifications
Name: Monochrome LCD Display
Operation Temperature: -20℃~+70℃
Storage Temp: -30- 80degreee
View Angel: 6 O'clock
Dot: 160*128
Display Backgrountnd: YELLOW-GREEN
Backlight Luminance: 200 Cd/m2
Highlight:

Dot Matrix LCD Display 160x128

,

Dot Matrix LCD Display Monochrome

,

6 O'clock Monochrome LCD Panel
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description

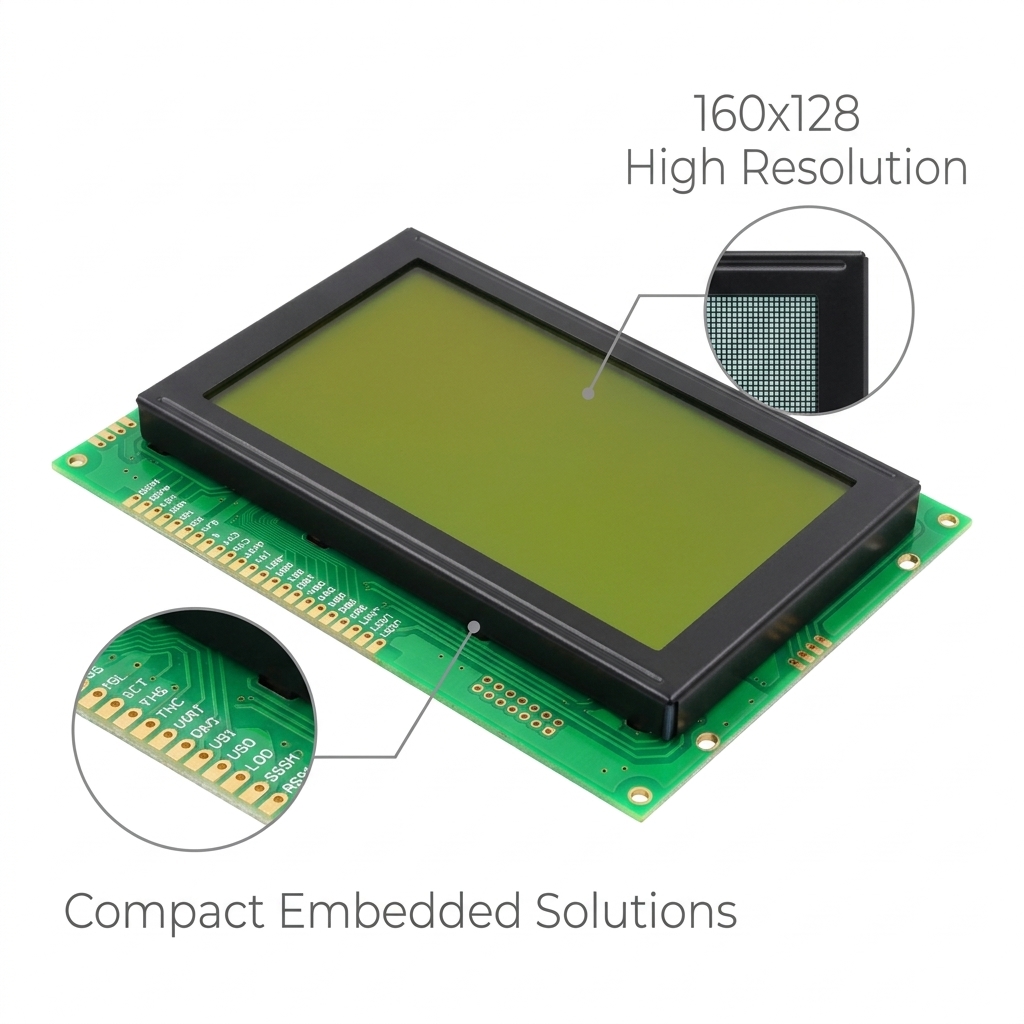

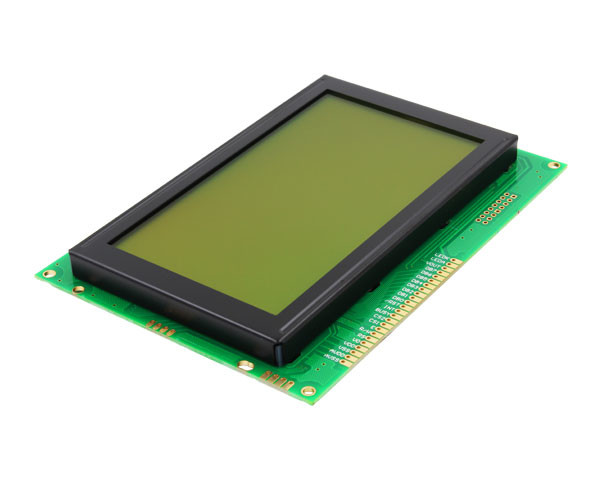

6 O'clock Monochrome LCD Panel, Dot Matrix LCD Display 160x128
General Specification
  • Display format: 160×128 dot-matrix; 1/128 duty
  • Construction: LCD, Bezel, Zebra and PCB
  • Optional Edge LED back-light
  • Controller: T6963C OR EQU
  • 5V single power input with built-in DC/DC converter for LCD driving
  • Extended temperature type available
Mechanical Data
Parameter Standard Value Unit
Dot size 0.54 (W) × 0.54(H) mm
Dot pitch 0.58(W) × 0.58(H) mm
Viewing area 101.0(W) × 82.2(H) mm
Module size (w/ LED back-light) 129.0(W) × 102.0(H) × 14 max (T) mm
Absolute Maximum Ratings
Parameter Symbol Min Max Unit
Logic Circuit Supply Voltage VDD-VSS -0.3 5.0 V
LCD Driving Voltage VDD-VO -0.3 16.0 V
Input Voltage VI -0.3 VDD+0.3 V
Normal temp. type Operating Temp. TOP 0 50 °C
Storage Temp. TSTG -10 60 °C
Extended temp. type Operating Temp. TOP -20 70 °C
Storage Temp. TSTG -30 80 °C
6 O'clock Monochrome LCD Panel , Dot Matrix LCD Display 160x128 0 6 O'clock Monochrome LCD Panel , Dot Matrix LCD Display 160x128 1 6 O'clock Monochrome LCD Panel , Dot Matrix LCD Display 160x128 2
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm?

Answer: No problem. Please send us your specification/drawing paper. If you don't have specifications, you can provide samples; we will recommend suitable standard products or customize based on your requirements.

This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.

Answer: For segment type LCD modules requiring size or content modifications, we need to create new LCD glass modules with custom tooling.

This LCD display is HTN type, but I want STN type, can you make?

Answer: Yes, we can modify the display type according to your request.

I want to customize a new LCD module. Can you do?

Answer: Yes, we can customize LCD modules. Please send your drawing or provide specifications including outline size, display information (glass thickness, polarizer, display type, connector mode, storage/operating temperature, supply voltage, viewing direction, drive condition).

What is lead time for tooling?

Answer: Typically 15 to 25 days after drawing confirmation and tooling payment. Exact timing will be confirmed upon drawing approval.

Can you send us samples for checking?

Answer: Yes, sample orders are available.

What is the Lead Time?

Answer: Standard products in stock ship within 1 day after payment. Special mass production orders take 15-30 days, with earlier completion updates when possible.

Our Services
  • Free repair within one year after shipment
  • Replacement within 30 days for product-related issues
  • Custom logo printing and model number labeling
  • Competitive shipping rates through established partnerships
  • Professional technical support and responsive after-sales service
  • Comprehensive pre-shipment inspection and testing
  • 24-hour response guarantee for all inquiries
  • Custom LCD display solutions based on your specifications
Product Applications
  • Household appliances: Refrigerators, air conditioners, fans, heaters, water heaters, electric blankets, air purifiers, washing machines, vacuum cleaners, microwave ovens, rice cookers
  • Communication equipment: Telephones, interphones, fax machines, wireless wifi
  • Automotive electronics: On-board entertainment systems, navigators, car audio, reverse radar, cameras
  • Instruments: Water meters, electric meters, multimeters, electronic scales, pressure/temperature/flow meters
  • Fitness equipment: Treadmills, fitness bikes, pedometers, electronic sphygmomanometers
  • Financial: POS machines, tax control cash machines, banknote counters
  • Consumer electronics: MP3/MP4 players, electronic dictionaries, e-readers, calculators
Key Features

High resolution, high definition, high brightness, cost-effective, energy efficient, wide temperature range operation (positive/negative), suitable for high/low temperature environments.
