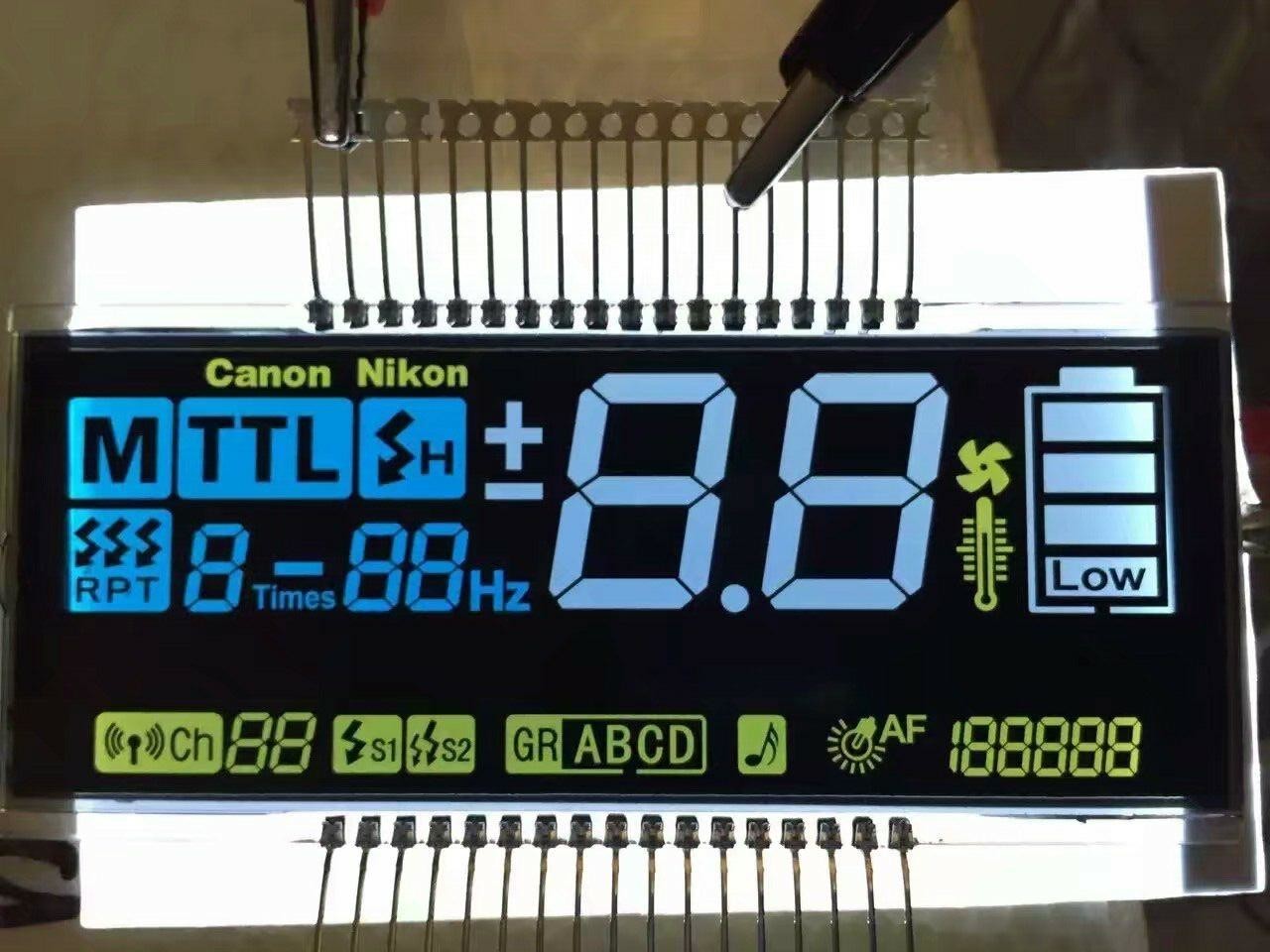

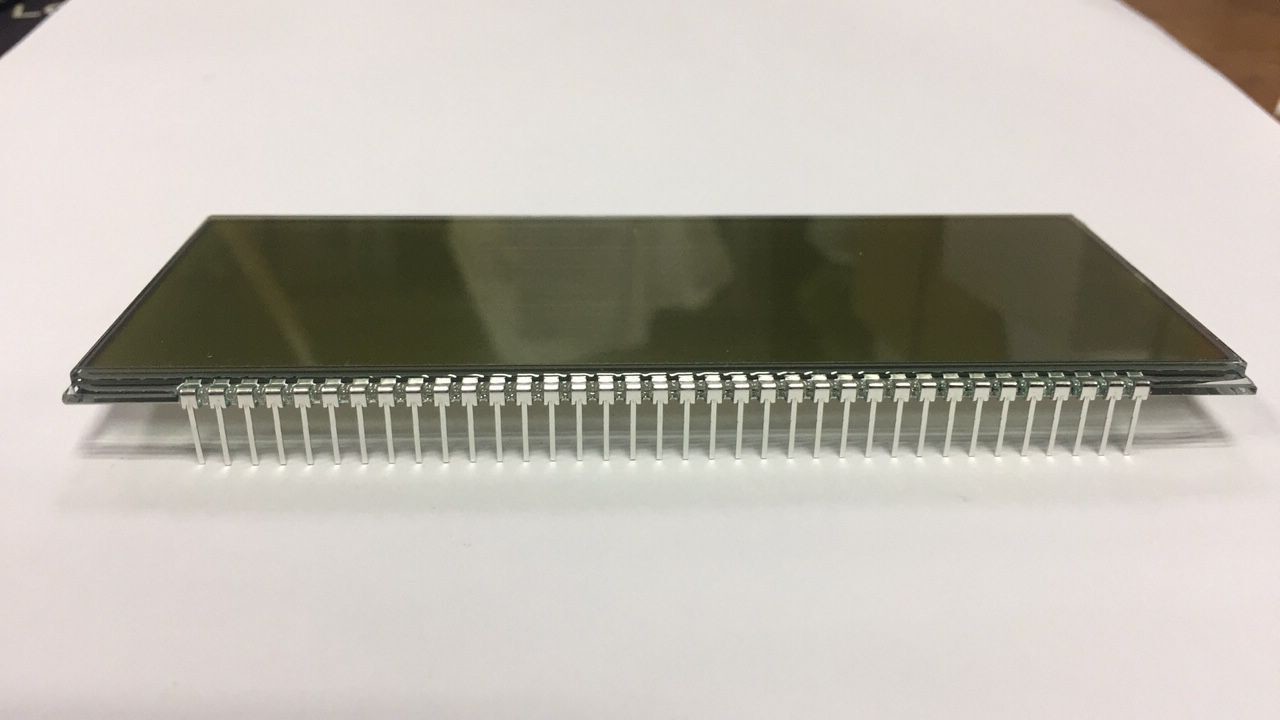

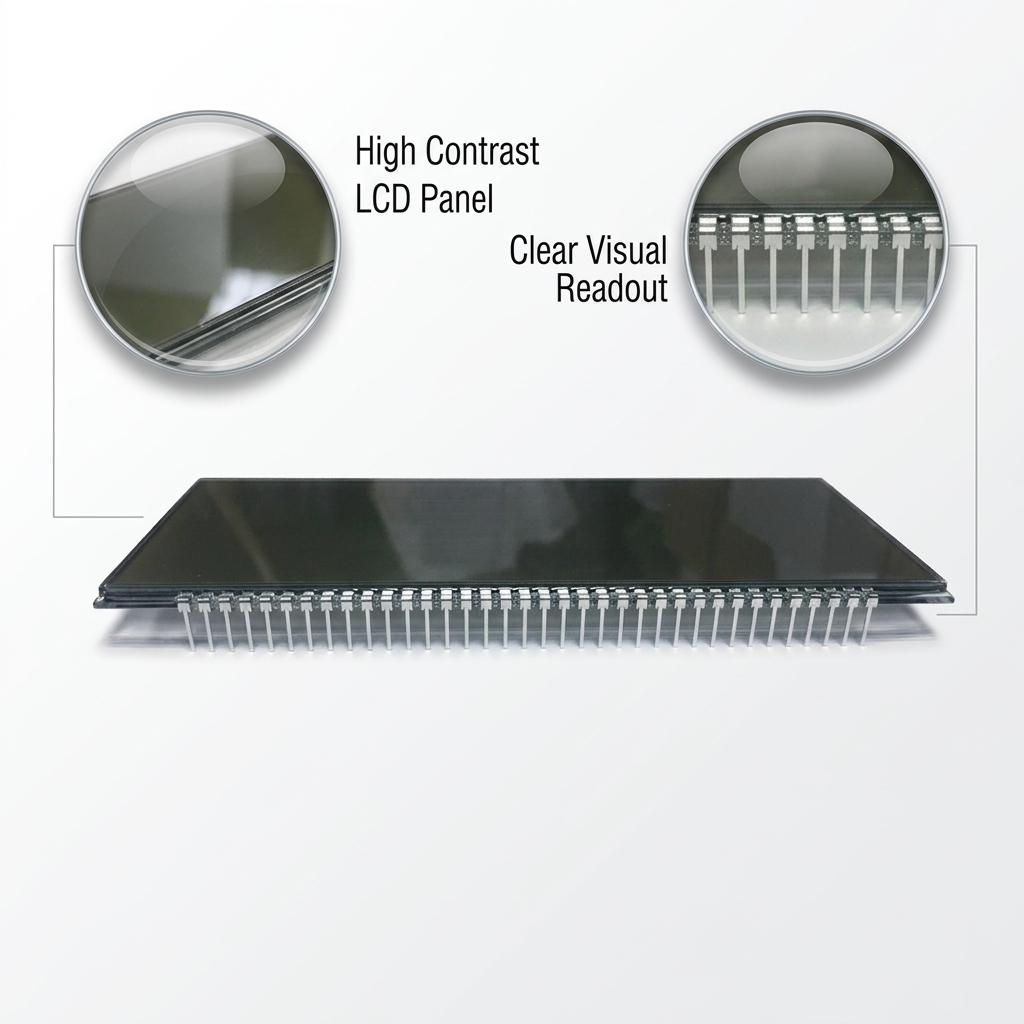

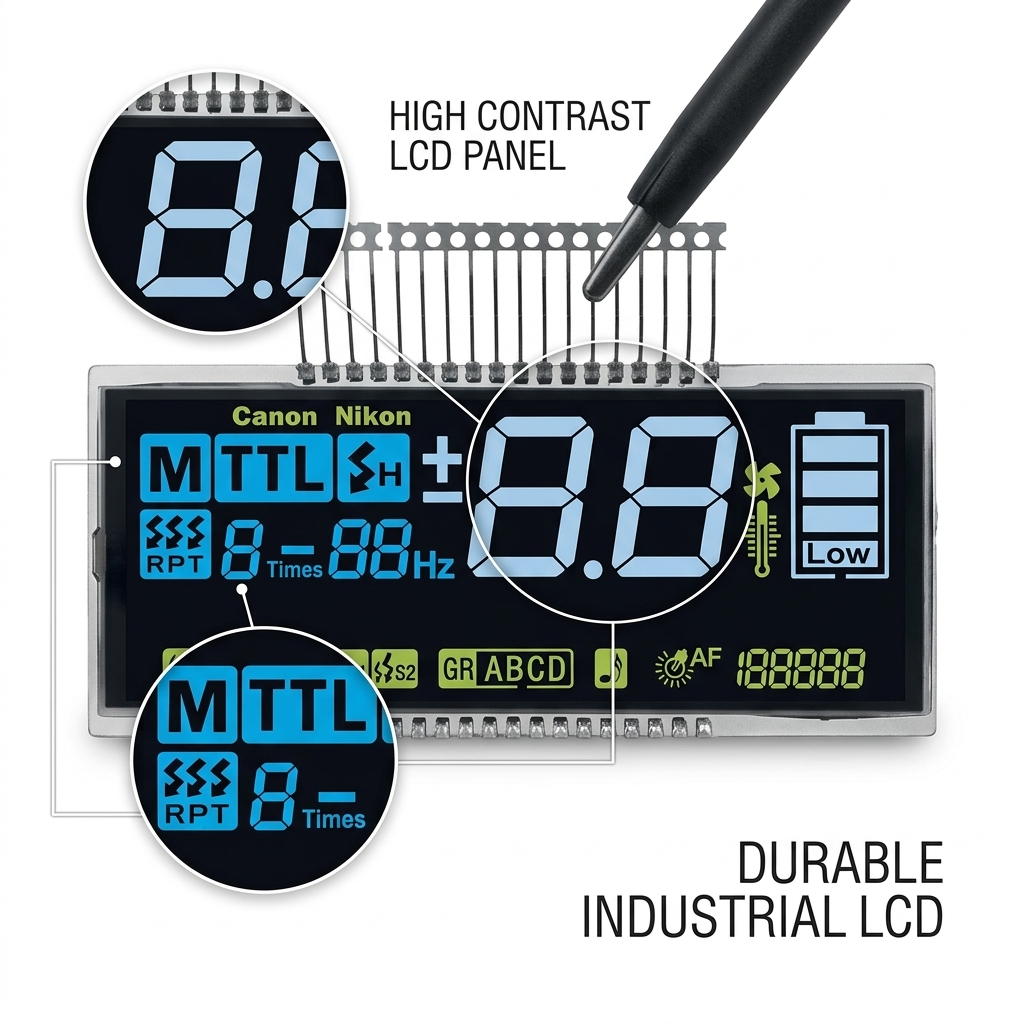

BBI Monochrome LCD Display HTN Positive Polarizer LCD Display 12 O'Clock
Monochrome LCD Display HTN Positive Polarizer 102.00mm*34.50mm 12 O'Clock.
General Specification
- Display Type: HTN
- Display Mode: Positive
- Polarizer Mode: Transflective
- Driving Method: Vop 3.0, Duty 1/4, Bias 1/3
- Viewing Direction: 12 o'clock
- Display Color: Black (On Stage, Pixel Color)
- Background: Gray (Off stage, Display Color)
Mechanical Specification
| Item |
Specifications |
Unit |
| Dimensional Outline |
102.00*34.50 |
mm |
| Viewing Area |
99.00(L)MIN X 27.50(W)MIN |
mm |
| PIN Pitch |
2.54 |
mm |
| PIN Length |
6.35 |
mm |
| Number of PIN |
36 |
----- |
Absolute Maximum Ratings
| No. |
Item |
Min. |
Typ. |
Max. |
Unit |
Remark |
| 1 |
Operating temperature range |
-15 |
---- |
50 |
°C |
|
| 2 |
Storage temperature range |
-20 |
---- |
70 |
°C |
|
| 3 |
AC voltage |
---- |
---- |
10 |
V |
1hr |
| 4 |
DC voltage |
---- |
---- |
3 |
V |
1hr |
| 5 |
Tolerable DC component |
---- |
0 |
30 |
mV |
|
| 6 |
Tolerable atmospheric pressure |
86 |
---- |
106 |
kPa |
|
| 7 |
Tolerable vibration |
---- |
0 |
50 |
m/s² |
|
Packaging & Shipping
Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements. Different countries may have specific packaging requirements.
Shipping: Express options include DHL, Fedex, EMS, UPS. Also available by air or sea shipping. Any preferred shipping method can be accommodated.
Payment Method: Various payment options available.
Frequently Asked Questions
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
Answer: Please send us your specification/drawing. If unavailable, we can recommend suitable standard products or customize based on your requirements.
2. This LCD is what we want, but it's too large. Do you have smaller sizes?
Answer: For segment type LCD modules requiring size or content modification, we can create new tooling for customized solutions.
3. This LCD display is HTN type, but I want STN type. Can you make it?
Answer: Yes, we can modify the display type according to your requirements.
4. I want to customize a new LCD module. Can you do it?
Answer: Yes, we can customize LCD modules. Please provide your drawing or specifications including outline size, display information, and technical requirements.
5. What is the lead time for tooling?
Answer: Typically 15-25 days after drawing confirmation and tooling payment. Exact timeline will be confirmed upon order.
6. Can you send us samples for checking?
Answer: Yes, sample orders are available.
7. What is the lead time?
Answer: Standard products in stock ship within 1 day. Custom production typically takes 15-30 days, with updates provided if completed earlier.
Our Services
- Free repair within one year after shipment
- Replacement within 30 days for defective products
- Custom logo and model number printing available
- Discounted shipping rates through established partnerships
- Professional technical support and after-sales service
- Rigorous quality control before shipment
- 24-hour response to customer inquiries
- Custom LCD display solutions based on your specifications
Product Applications
- Household appliances: refrigerators, air conditioners, fans, heaters, washing machines, microwave ovens
- Communication equipment: telephones, interphones, fax machines, wireless wifi
- Automotive electronics: entertainment systems, navigators, audio systems, reverse cameras
- Instruments: water meters, electric meters, multimeters, electronic scales, pressure meters
- Fitness equipment: treadmills, fitness bikes, training devices, pedometers
- Financial equipment: tax control machines, POS systems, banknote counters
- Consumer electronics: MP3/MP4 players, electronic dictionaries, calculators, electronic clocks
Features: High resolution, high definition, high brightness, cost-effective, energy efficient, wide temperature range (positive/negative), durable performance.
