5V LCD Display Monochrome 20x2 LCD Display Screen For Industrial

1000
MOQ
DISCUSSABLE
Price
5V LCD Display Monochrome 20x2 LCD Display Screen For Industrial
Features Gallery Product Description Chat Now
Features
Specifications
Name: 5V LCD Display Monochrome
Backlight Color: White, 3.0V, 90mA
Voltage: 3.3V
Dots Size: 0.32×0.32mm
Storage Temp: -30~+80°C
Outline Drawing: According To The Annexed Outline Drawing
Numbr Of Dots: 20x2
Highlight:

5V LCD Display Monochrome

,

Industrial 20x2 LCD Display

,

20x2 LCD Display Screen
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
5V LCD Display Monochrome 20x2 LCD Display Screen For Industrial
General Specification
ITEMDESCRIPTIONUNIT
Outline Size(mm)80.0(L) ×72.5(W)×5.0(T) (Not Include Connector)mm
LCD TypeFSTN, Transflecitve/Positive,1/160Duty,1/10Bias---

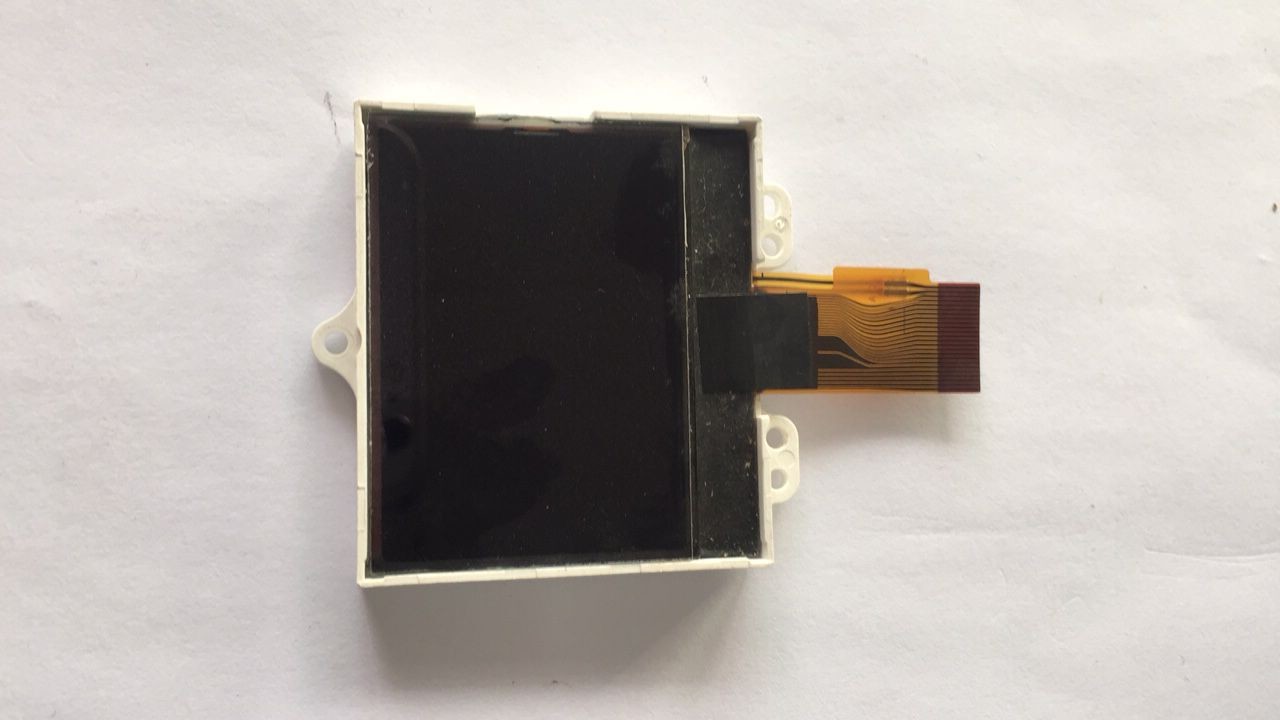

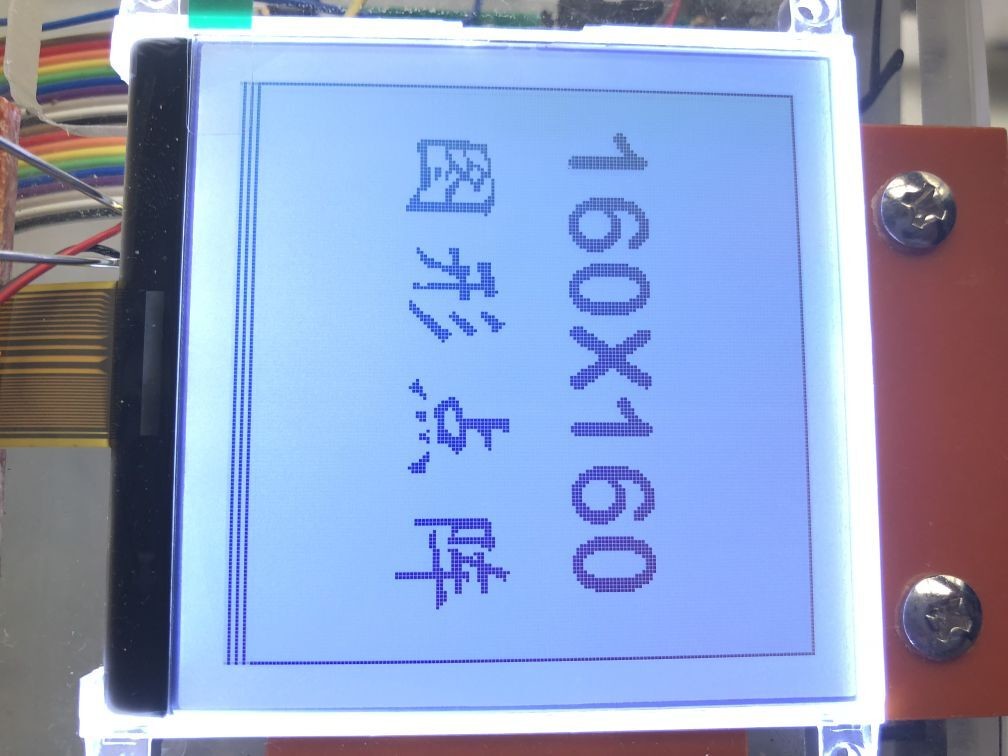

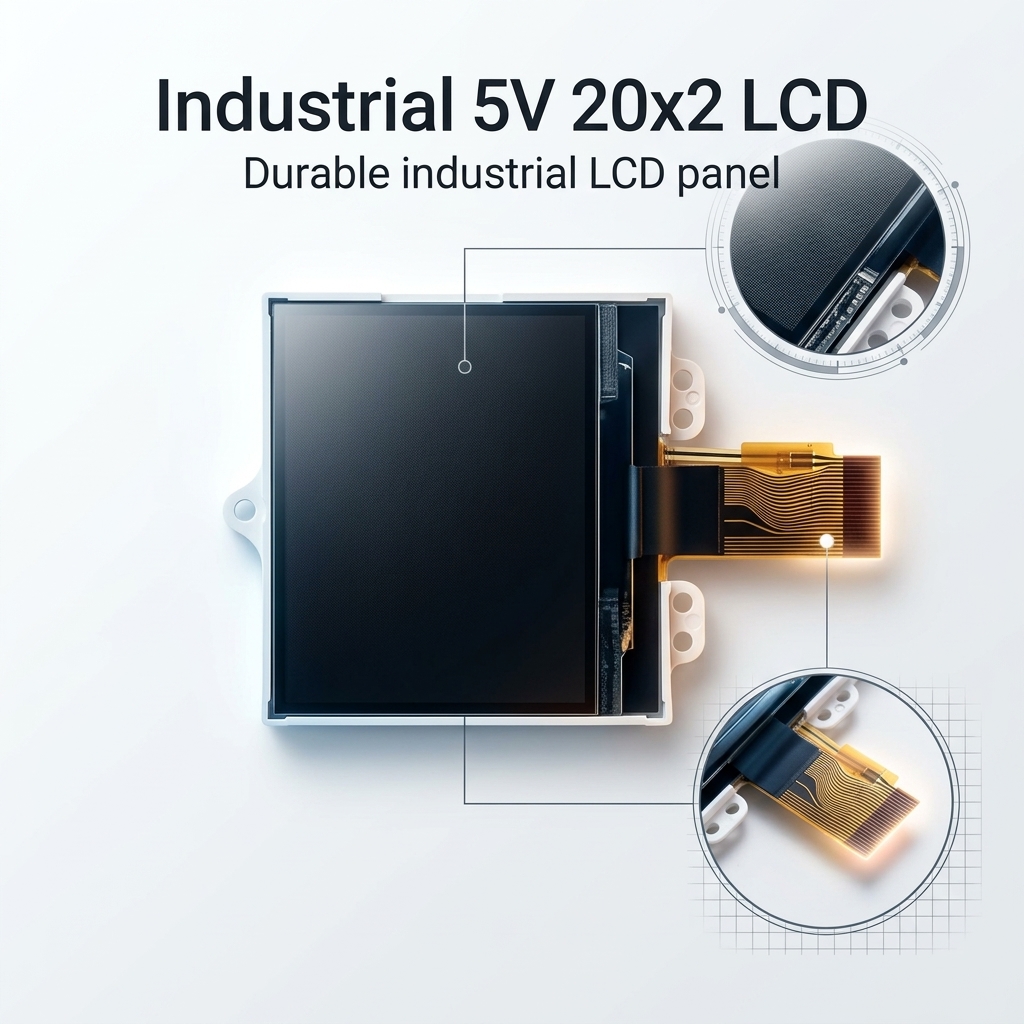

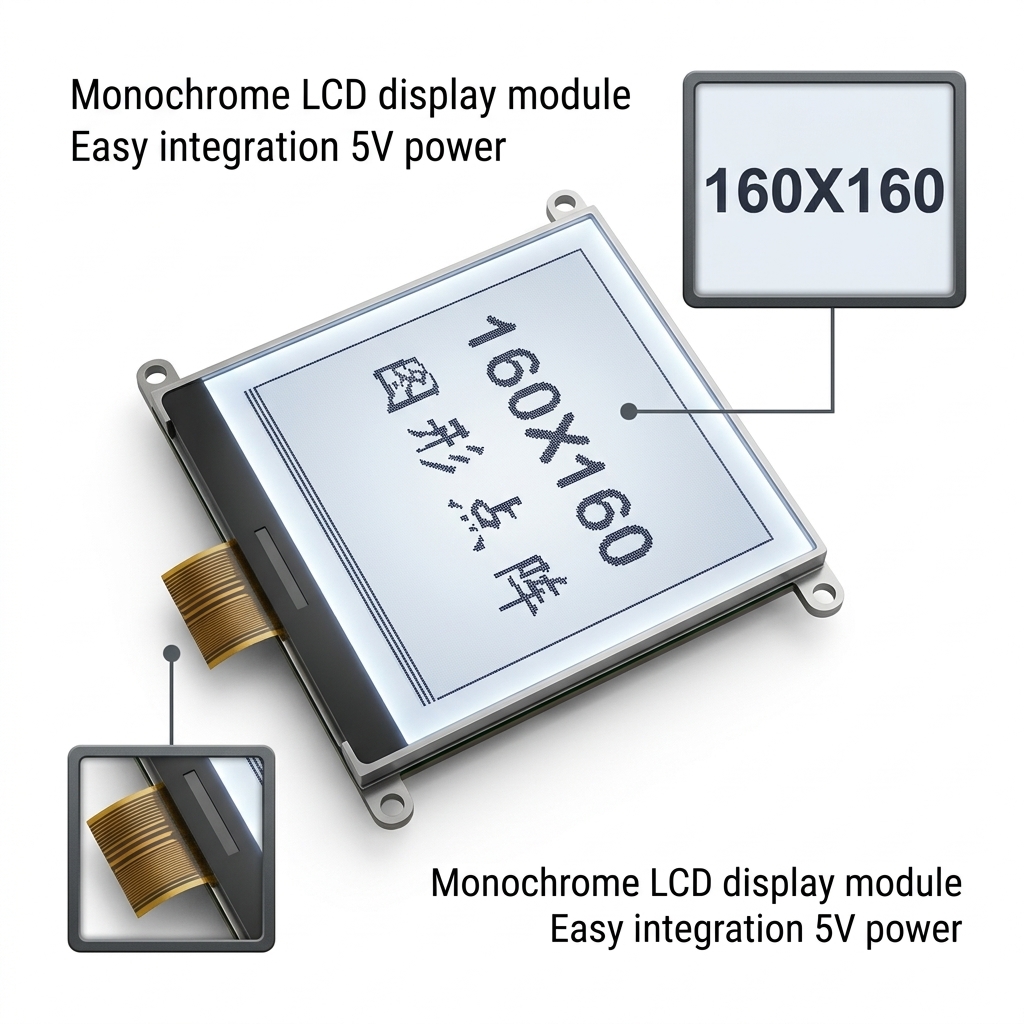

Display Type160×160 dots---
View Area60.00×60.00mm
Display Area54.38×54.38mm
Dots Size0.32×0.32mm
Dots Pitch0.34×0.34mm
Controller & DriverUC1698U (COG)---
View Direction6 O'Clock---
Interface Mode8 bit 6800,8 bit 8080---
VDD&VOP(Type)3.3 V & 16.3 VV
Backlight ColorWhite, 3.0V, 90mA---
Operation Temp.-20~+70℃
Storage Temp.-30~+80℃
PIN CONNECTIONS
Pin No.Pin OutDescription
1-2NCNo connection.
3-4VLCDHigh voltage LCD Power Supply. When internal VLCD is used, connect these pins together. When external VLCD source is used, connect external VLCD source to VLCDIN, pins and leave VLCDOUT open.
5VS+LCD Bias Voltages. These are the voltage sources to provide SEG driving currents. These voltages are generated internally. Connect capacitors of CAX / CBX value between VAX+ / VBX+ and VAX- / VBX-, respectively.
6VS-
7VB0-
8VB1-
9VB1+
10VB0+
11-12VDDPower supply for LCD circuit.
13-14VSSGround.
15BM0Bus Mode: The interface bus mode is determined by BM0 with the following relationship: | BM 0 | Mode | 1 | 6800/8-bit | 0 | 8080/8-bit
16CS0Chip Selection. Chip is selected when CS0 = "L". When the chip is not selected, DB [7:0] will be high impedance.
17A0(CD)Selects Control data or Display data for read/write operation. In S9 mode, CD pin is not used. Connect to VSS when not used. "L": Control data "H": Display data
18WR1(RD)WR[1:0] control the read/write operation of the host interface. See section Host Interface for more detail. In parallel mode, the meaning of WR[1:0] depends on whether the interface is in the 6800 mode or the 8080 mode. In serial interface modes, these two pins are not used, connect them to VSS.
19WR0(WR)
20RSTWhen RST="L", all control registers are re-initialized by their default states. Since UC1698u has built-in Power-ON reset and software reset commands, RST pin is not required for proper chip operation. An RC Filter has been included on-chip. There is no need for external RC noise filter. When RST is not used, connect the pin to VDD.
21DB0Bi-directional bus for parallel host interface.
22DB1
23DB2
24DB3
25DB4
26DB5
27DB6
28DB7
5V LCD Display Monochrome 20x2 LCD Display Screen For Industrial 05V LCD Display Monochrome 20x2 LCD Display Screen For Industrial 15V LCD Display Monochrome 20x2 LCD Display Screen For Industrial 2
Packaging & Shipping

Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements, with variations based on country-specific regulations.

5V LCD Display Monochrome 20x2 LCD Display Screen For Industrial 3

Shipping: Available via DHL, Fedex, EMS, UPS, air shipping, or sea shipping. Customers may choose their preferred shipping method.

5V LCD Display Monochrome 20x2 LCD Display Screen For Industrial 4
Payment Method
5V LCD Display Monochrome 20x2 LCD Display Screen For Industrial 5
Our Services
  • Free repair within one year after shipment
  • Replacement within 30 days for product-related issues
  • Custom logo printing and model number labeling
  • Discounted shipping rates through established partnerships
  • Professional technical support and responsive after-sales service
  • Rigorous quality inspection before shipment
  • 24-hour response time for customer inquiries
  • Custom LCD display solutions based on customer specifications
FAQ
I want the LCD display 8 digits and the outline size is 65x30x2.8mm?

No problem. Please send us your specification/drawing or samples. We can recommend suitable standard products or customize based on your requirements.

This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.

For segment type LCD modules requiring size or content modifications, we can create new tooling for customized solutions.

This LCD display is HTN type, but I want STN type, can you make?

Yes, we can modify the display type according to your requirements.

I want to customize a new LCD module. Can you do?

Yes, we can. Please provide your drawing or specifications including outline size, display information, glass thickness, polarizer type, connector mode, temperature requirements, and viewing direction.

What is leading time for tooling?

Typically 15-25 days after drawing confirmation and tooling payment. Exact timeline will be confirmed upon drawing approval.

Can you send us samples for checking?

Yes, sample orders are available.

What is the Leading Time?

For standard products in stock: 1 day after payment. For special mass production: 15-30 days (we'll update if completed earlier).

Product Application
  • Household appliances: refrigerators, air conditioners, fans, heaters, washing machines, microwave ovens
  • Communication equipment: telephones, interphones, fax machines, wireless wifi
  • Automotive electronics: entertainment systems, navigators, cameras, anti-theft devices
  • Instruments: water meters, electric meters, multimeters, analytical instruments
  • Fitness equipment: treadmills, training devices, electronic scales
  • Financial equipment: POS machines, tax control cash machines, banknote counters
  • Consumer electronics: MP3/MP4 players, electronic dictionaries, calculators

Features: High resolution, high definition, high brightness, cost-effective, energy efficient, wide temperature range operation.
