High Resolution Monochrome LCD Display 128x128 50 Pins FPC

1000
MOQ
DISCUSSABLE
Price
High Resolution Monochrome LCD Display 128x128 50 Pins FPC
Features Gallery Product Description Chat Now
Features
Specifications
Name: Monochrome LCD Display
Operating Temp: 0~+50°C
Display Color: Black
Dot: 128*128
Lcd Drive Voltage: 5.0V
Display Backgrountnd: Gray
Fpc Pin Number: 50 Pins
Highlight:

High Resolution Monochrome LCD Display

,

Monochrome LCD Display 128x128

,

High Resolution LCD Display Monochrome
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
High Resolution Monochrome LCD Display 128x128 50 Pins FPC
General Specifications
  • Display Type: HTN
  • Display Mode: Positive
  • Polarizer Mode: Transflective
  • Driving Method: Vop 3.0, Duty 1/4, Bias 1/3
  • Viewing Direction: 12 o'clock
  • Display Color: Black (On Stage, Pixel Color)
  • Background: Gray (Off Stage, Display Color)
Dimensional Outline and Display Pattern
Item Specifications Unit
Dimensional Outline 99.00±0.20(L) × 43.00±0.20(W) × 2.80(MAX) mm
Viewing Area 98.00(L)MIN × 39.50(W)MIN mm
PIN Pitch 2.54 mm
PIN Length 6.35 mm
Number of PIN 36 -----
Absolute Maximum Ratings
No. Item Characteristic values Unit Remark
1 Operating temperature range 0 - 50 °C
2 Storage temperature range -10 - 60 °C
3 AC voltage Max 10 V 1hr
4 DC voltage Max 3 V 1hr
5 Tolerable DC component 0 - 30 mV
6 Tolerable atmospheric pressure 86 - 106 kPa
7 Tolerable vibration Max 50 m/s²
Electro-optical Characteristics
Item Symbol Measurement temperature Min Typ. Max Unit Remark Note
Operating voltage Vop 25°C 3.0 V (1)
Response Time (Rise) Tr 25°C - 100 150 ms Vop= V (2)
Response Time (Decay) Td 25°C - 100 150 ms Vop= V (2)
Current consumption (all seg on) Iop 25°C - - 1 μA/cm² (3)
Contrast ratio Cr 25°C 2 - - - Vop= V (4)
Frame frequency f 32 64 128 Hz (1)
Capacitance (all seg) C 25°C - - 2 nF/cm² (5)
Viewing angle (F=180°) q 25°C 0 - 40 Deg F=180° (6)
Viewing angle (F=270°) q 25°C 0 - 30 Deg F=270° (6)
Viewing angle (F=90°) q 25°C 0 - 30 Deg F=90° (6)

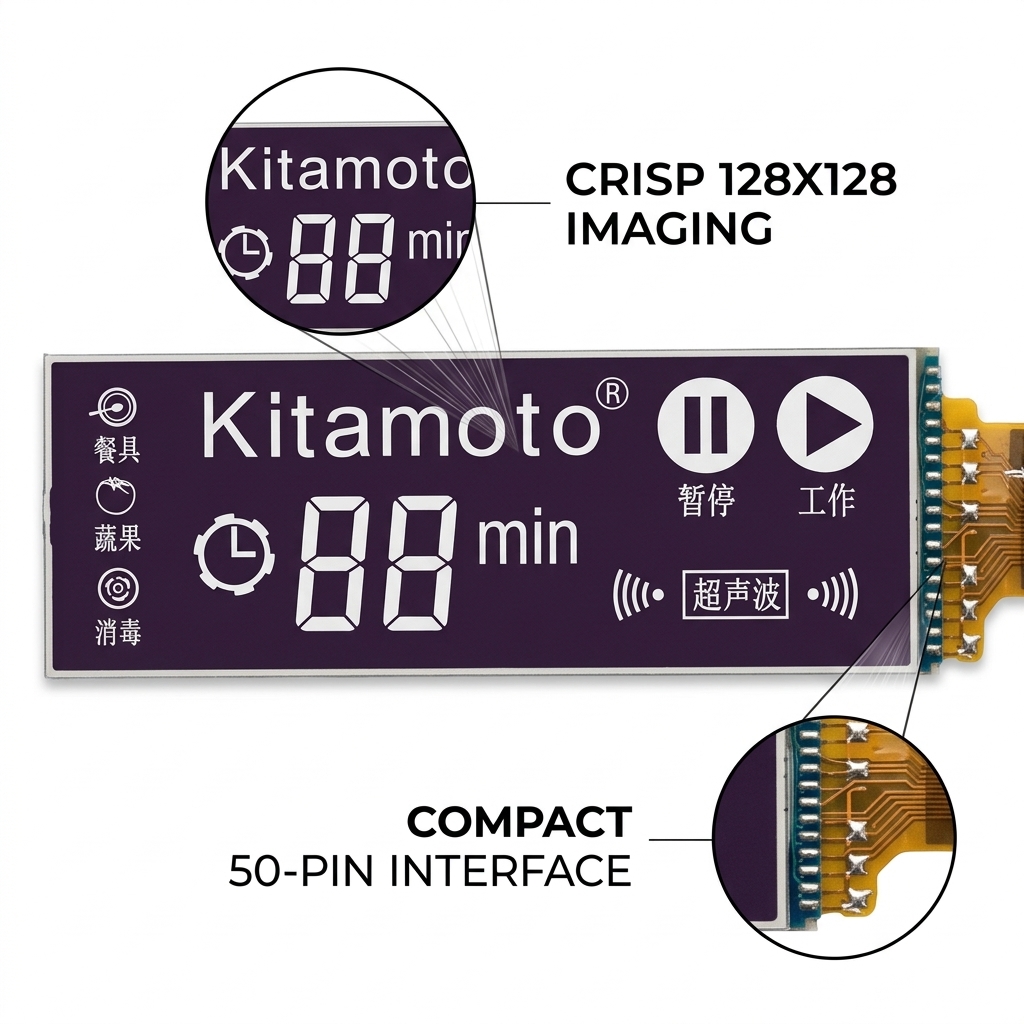

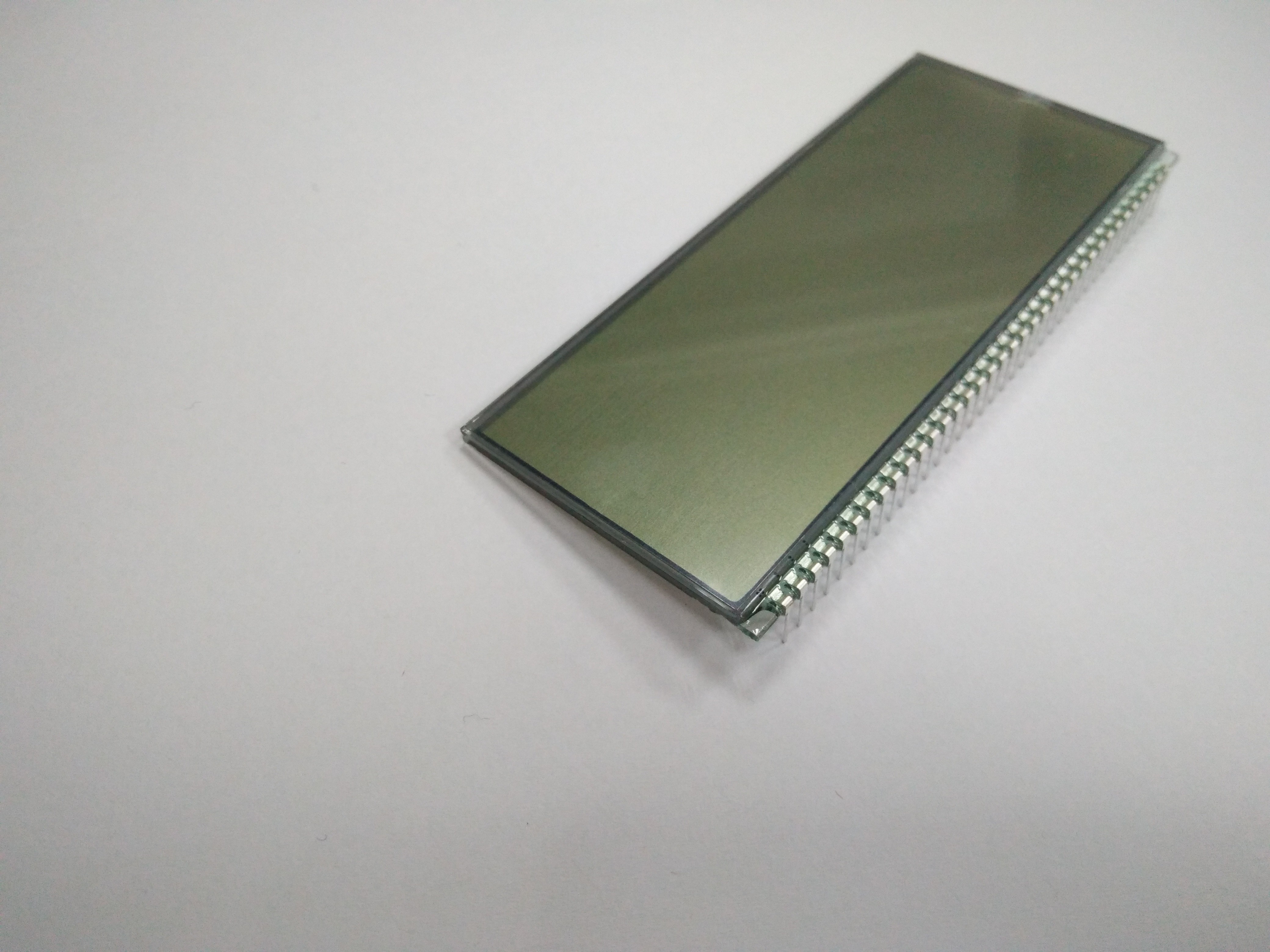

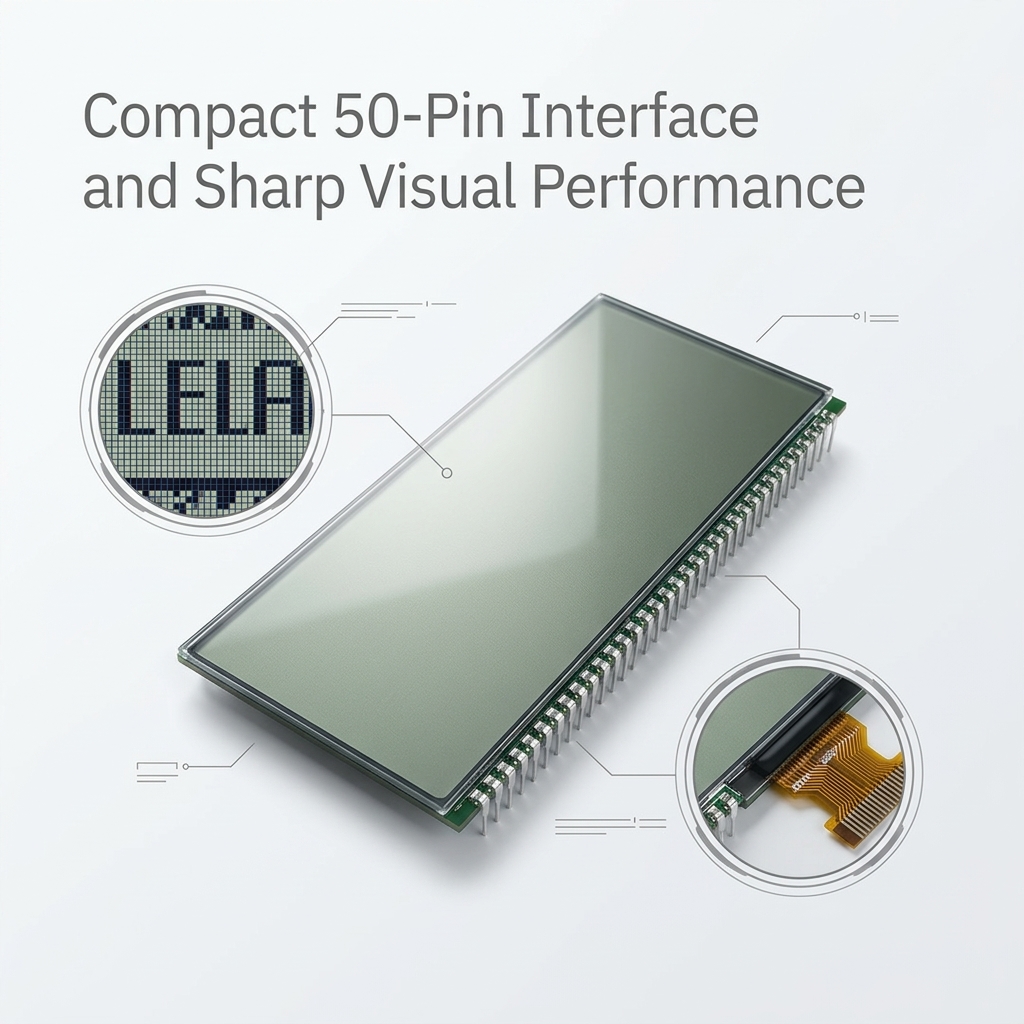

High Resolution Monochrome LCD Display 128x128 50 Pins FPC 0 High Resolution Monochrome LCD Display 128x128 50 Pins FPC 1 High Resolution Monochrome LCD Display 128x128 50 Pins FPC 2

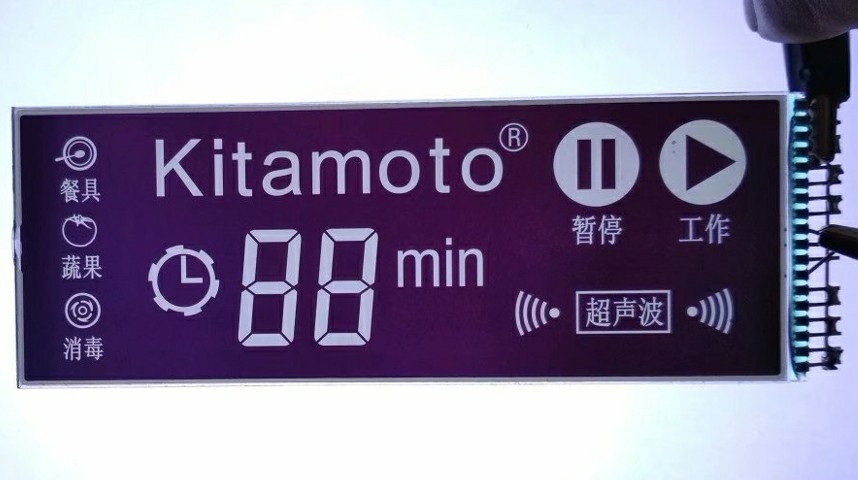

High Resolution Monochrome LCD Display 128x128 50 Pins FPC 3
