BBI Monochrome LCD Display 122x32 with STN / FSTN LCD Construction

1000
MOQ
DISCUSSABLE
Price
BBI Monochrome LCD Display 122x32 with STN / FSTN LCD Construction
Features Gallery Product Description Chat Now
Features
Specifications
Name: Monochrome LCD Display
Number Of Characters: 16 Characters X 2 Lines
Controller: SED1520 Or Equivalent.
Dot Pitch: 0.6mm(L)*0.49mm(W)
Module Size: 84.0(W) ´ 44.0(H) ´ 9.3 Max (T)
Polarizer Mode: Reflective
Construction: STN / FSTN LCD, Bezel, Zebra And PCB
Highlight:

BBI Monochrome LCD Display

,

Monochrome OLED Display 122x32

,

Monochrome FSTN LCD Display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
BBI Monochrome LCD Display 122x32 with STN / FSTN LCD Construction
Monochrome LCD Display STN / FSTN LCD, Bezel, Zebra And PCB
General Specification
1 FEATURES
  • Display format: 122 × 32 dot-matrix; 1/32 duty
  • Construction: STN / FSTN LCD, Bezel, Zebra and PCB
  • Optional LED or EL back-light
  • Controller: SED1520 or Equivalent
  • Besides +5V for logic circuit
  • Normal / Extended temperature type
2 MECHANICAL DATA
Parameter Stand Value Unit
Dot size 0.36(W) × 0.41(H) mm
Dot pitch 0.40(W) × 0.45(H) mm
Viewing area 60.0(W) × 18.0(H) mm
Module size 84.0(W) × 44.0(H) × 9.3 max (T) mm
Module size (LED back-light) 84.0(W) × 44.0(H) × 13.0 max (T) mm
3 ABSOLUTE MAXIMUM RATINGS
Parameter Symbol Min Max Unit
Logic Circuit Supply Voltage VDD-VSS 0 8.0 V
LCD Driving Voltage VDD-VO 0 10.0 V
Input Voltage VI VSS VDD V
Operating Temp. TOP 0 50 °C
Storage Temp. TSTG -20 70 °C
Operating Temp. TOP -20 70 °C
Storage Temp. TSTG -30 80 °C

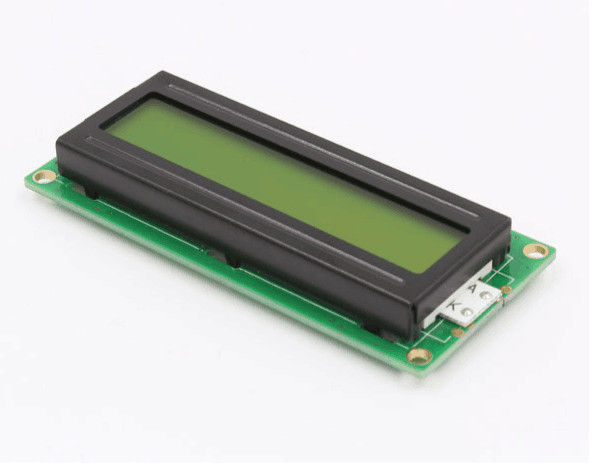

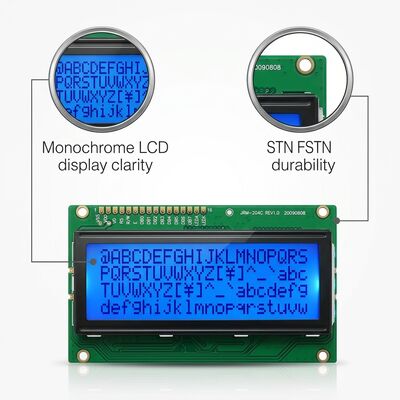

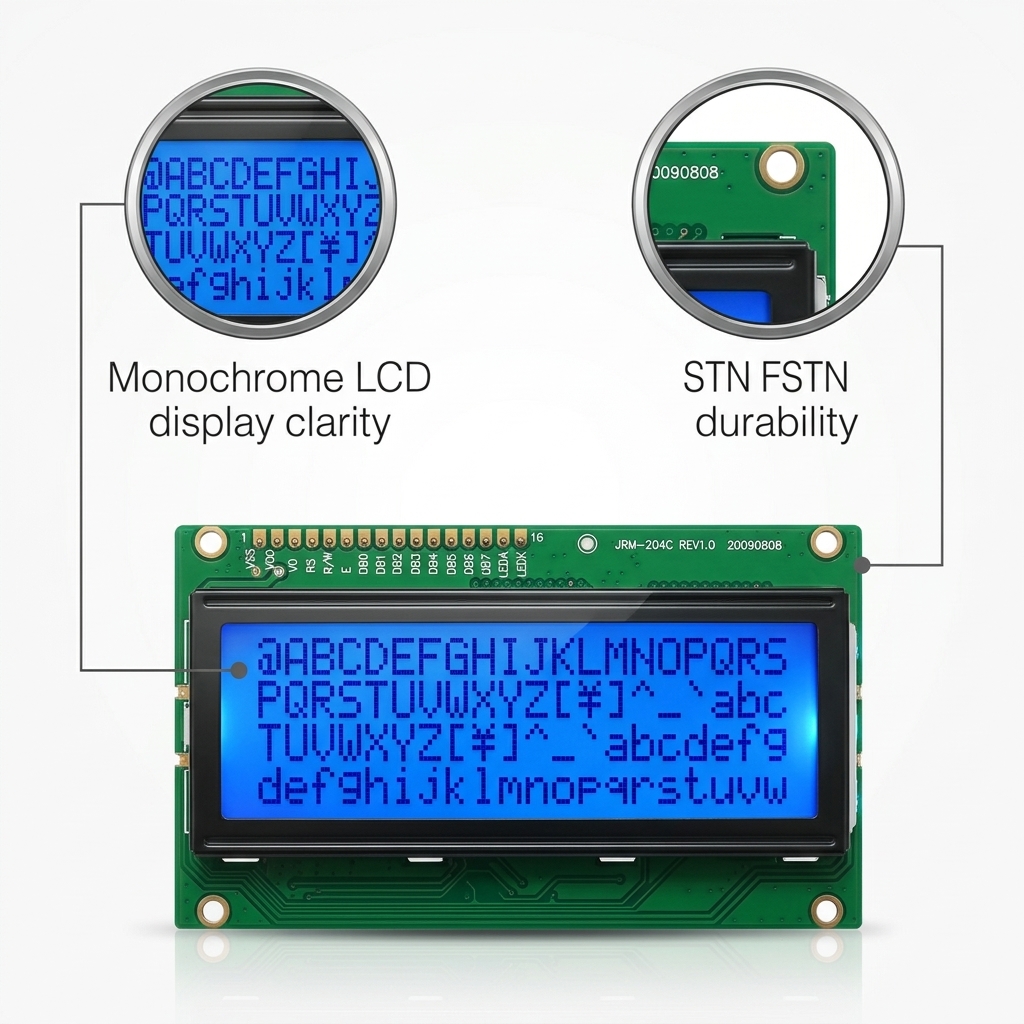

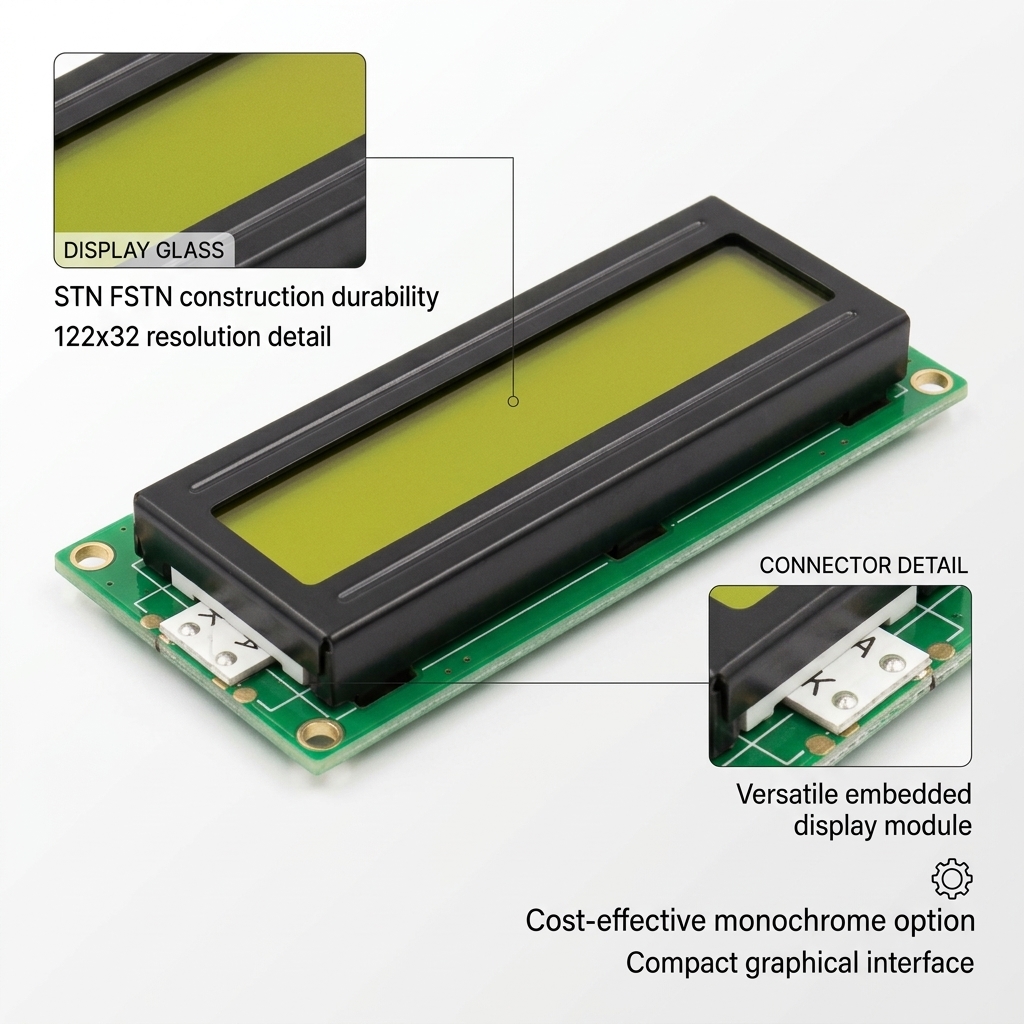

BBI Monochrome LCD Display 122x32 with STN / FSTN LCD Construction 0 BBI Monochrome LCD Display 122x32 with STN / FSTN LCD Construction 1 BBI Monochrome LCD Display 122x32 with STN / FSTN LCD Construction 2
FAQ
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm...?
Answer: No problem. Firstly, please kindly send us your specification/drawing paper. If you have not the specification, you can also provide your samples; we will recommend the suitable one if it is standard products. Or we can customize for you based on your own requirement.
2. This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
Answer: For the segment type LCD module, if you need modify the outline size or display content, a new LCD glass module is need. We have to open new tooling for you.
3. This LCD display is HTN type, but I want STN type, can you make?
Answer: That's all right. We can change for you as per you request.
4. I want customize a new LCD module. Can you do?
Answer: Yes, we can. Please send your drawing paper. If you have not, please advise me the outline size of the LCD display, display information (Glass thickness, Polarizer, Display Type, Connector mode, Storage Temp. Operating Temp. Supply Voltage, Viewing direction, drive condition), we can customize for you.
5. What is leading time for tooling?
Answer: General speaking, it will cost 15 to 25 days after drawing paper confirmation and tooling charge payment, we can report you the exact time when you confirm the drawing paper.
6. Can you send us samples for checking?
Answer: Yes. Samples order is available.
7. What is the Leading Time?
Answer: If we have stock for the standard ones, the leading time is one day after payment. If it is the mass production for special ones, the leading time is about 15-30 days. Suppose we can finish earlier, we will report the information in advanced.
Our Services
  • Free repair within one year after the shipment of products from us.
  • Replacement within 30 days after the shipment of products from us due to products' problems.
  • We can print your logo and stick your model No. on the cameras.
  • We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
  • Professional technician supports. We have a good after-sales service team. They can solve your problems in time.
  • All goods will be inspected and tested by our engineers and QC/QA before packing and shipment.
  • Customers satisfactory is most important to us. If you have any problem or questions regarding our transaction. Please contact us by Email or online. It will be responded within 24 hours.
  • Products pictures only for your reference. Please kindly refer to the specification. We can provide the products basic on the specification. Or you can offer your own specification or drawing, we can customize all kinds of LCD displays for you. Thanks for your kind support always.
List of Existing COB LCD Modules
Model Content Module size W x H(mm) View area W x H(mm) Dot size W x H(mm) Character size W x H(mm) Driving Method Controller LSI or Equiv IC Package STN-TYPE FSTN-TYPE
8D-C0802A 8X2 84.0X44.0 63.0X25.0 1.15X1.36 6.07X11.56 1/16 S6A0069 COB Y Y
8D-C0802B 8X2 58.0X32.0 38.0X16.0 0.56X0.66 2.95X5.56 1/16 S6A0069 COB Y Y
8D-C1202A 12X2 55.7X32.0 46.7X17.5 0.45X0.6 2.65X5.5 1/16 S6A0069 COB Y Y
8D-C1601A 16X1 80.0X36.0 64.5X13.8 0.55X0.65 3.2X5.95 1/16 S6A0069 COB Y Y
8D-C1601B 16X1 122.0X33.0 99.0X13.0 0.92X1.1 4.84X8.06 1/16 S6A0069 COB Y Y
8D-C1601C 16X1 80.0X36.0 64.5X13.8 0.6X0.7 3.2X8.2 1/11 S6A0069 COB Y Y
8D-C1601D 16X1 85.0X28.0 65.0X16.0 0.55X0.75 3.07X6.56 1/16 S6A0069 COB Y Y
8D-C1601E 16X1 80.0X36.0 64.5X13.8 0.55X0.75 3.07X6.56 1/16 S6A0069 COB Y Y
8D-C1602A 16X2 80.0X36.0 64.5X13.8 0.55X0.5 2.95X4.35 1/16 S6A0069 COB Y Y
8D-C1602B 16X2 122.0X44.0 99.0X24.0 0.92X1.1 4.84X9.66 1/16 S6A0069 COB Y Y
8D-C1602C 16X2 80.0X36.0 64.5X15.5 0.55X0.66 2.96X5.56 1/16 S6A0069 COB Y Y
8D-C1602D 16X2 84.0X44.0 64.5X15.5 0.55X0.66 2.96X5.56 1/16 S6A0069 COB Y Y
8D-C1602E 16X2 85.0X36.0 64.5X15.5 0.56X0.66 2.96X5.56 1/16 S6A0069 COB Y Y
8D-C1602F 16X2 72.0X36.0 64.5X15.5 0.56X0.66 2.96X5.56 1/16 S6A0069 COB Y Y
8D-C1604A 16X4 87.0X60.0 62.0X25.6 0.55X0.55 2.95X4.75 1/16 S6A0069 COB Y Y
8D-C2001A 20X1 116.0X37.0 83.0X18.6 0.6X0.65 3.2X5.55 1/16 S6A0069 COB Y Y
8D-C2002A 20X2 98.0X60.0 83.0X18.6 0.6X0.65 3.2X5.55 1/16 S6A0069 COB Y Y
8D-C2002B 20X2 116.0X37.0 83.0X18.6 0.6X0.65 3.2X5.55 1/16 S6A0069 COB Y Y
8D-C200C 20X2 146.0X43.0 123.0X23.0 0.92X1.1 0.98X1.17 1/16 S6A0069 COB Y Y
List of Existing COB LCD Modules
Model Content (W X H) Module size W x H(mm) View area W x H(mm) Dot size W x H(mm) Dot pitch W x H(mm) Driving Method Controller LSI or Equiv IC Package STN-TYPE FSTN-TYPE

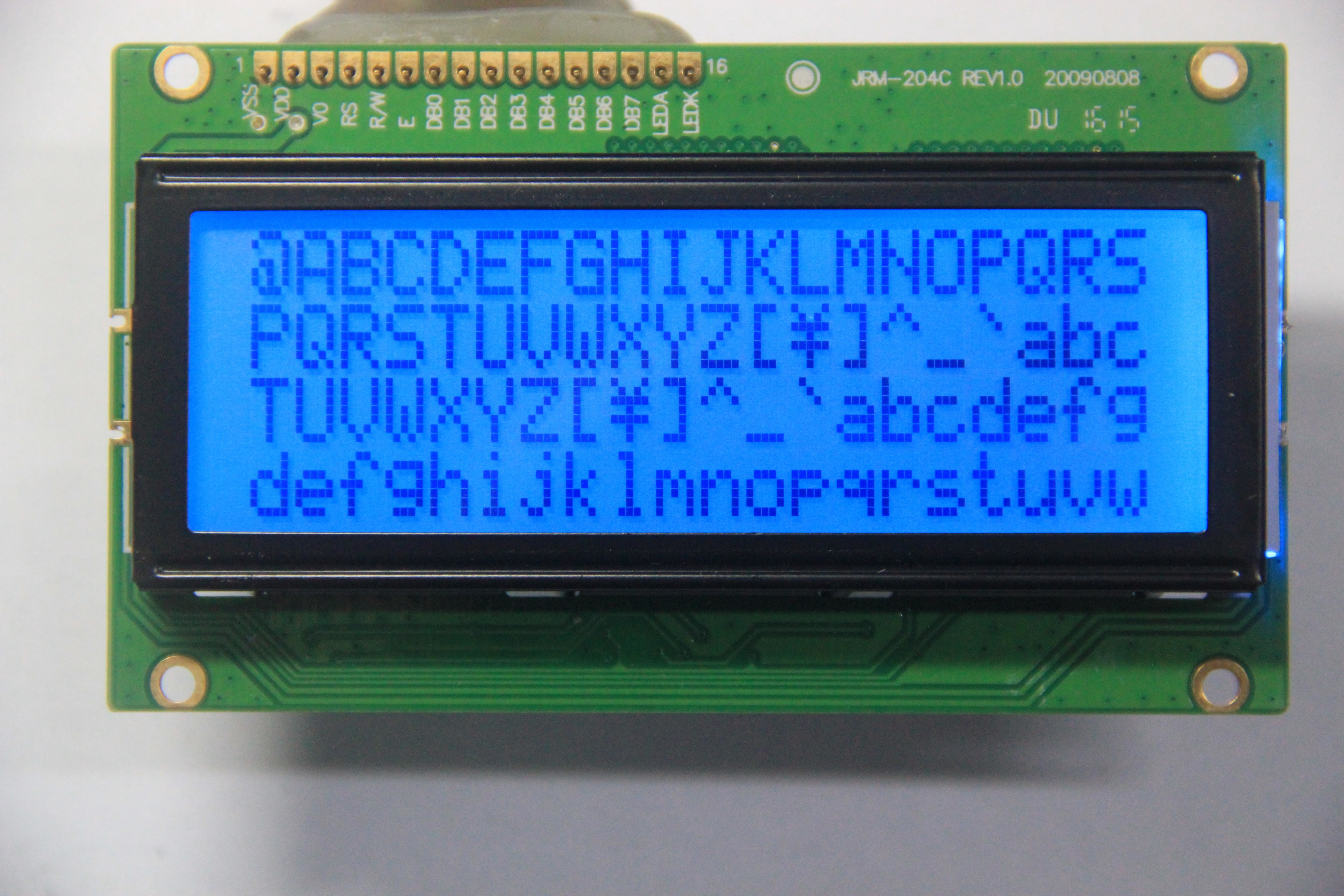

8D-C2004A 20X4 98.0X60.0 76.0X25.2 0.55X0.55 2.95X4.75 1/16 S6A0069 COB Y Y
8D-C2004B 20X4 77.0X47.0 60.0X22.0 0.42X0.46 2.3X4.03 1/16 S6A0070 COB Y Y
8D-C2004C 20X4 146.0X62.5 123.5X43.0 0.92X1.1 4.84X9.22 1/16 S6A0069 COB Y Y
8D-C2402A 24X2 118.0X36.0 93.5X16.0 0.6X0.65 3.2X5.55 1/16 S6A0069 COB Y Y
8D-C2402B 24X2 208.0X40.0 178.0X23.0 1.16X1.16</td
