Transflective Monochrome LCD Display 160X128 Dot Matrix LCD Screen

1000
MOQ
DISCUSSABLE
Price
Transflective Monochrome LCD Display 160X128 Dot Matrix LCD Screen
Features Gallery Product Description Chat Now
Features
Specifications
Name: Monochrome LCD Display
Polarzer Mode: Transflective
Display Resolution: 160x128 Pexels
Contrast Ratio: Varies Depending On Model
Duty: 1/128DUTY
Lcd Connector: COG+FPC
Controller: T6963C
Highlight:

Transflective Monochrome LCD Display

,

Monochrome LCD Display 160X128

,

160X128 Dot Matrix LCD Screen
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
Transflective Monochrome LCD Display 160X128 Dot Matrix LCD Screen
Features
  1. Display format: 160×128 dot-matrix; 1/128 duty
  2. Construction: LCD, Bezel, Zebra and PCB
  3. Optional Edge LED or EL back-light
  4. Controller: T6963C
  5. 5V single power input with built-in DC/DC converter for LCD driving
  6. Available in normal or extended temperature types
Mechanical Data
Parameter Standard Value Unit
Dot size 0.54 (W) × 0.54 (H) mm
Dot pitch 0.58 (W) × 0.58 (H) mm
Viewing area 101.0 (W) × 82.2 (H) mm
Module size (w/ LED back-light) 129.0 (W) × 102.0 (H) × 18.0 max (T) mm
Absolute Maximum Ratings
Parameter Symbol Min Max Unit
Logic Circuit Supply Voltage VDD-VSS -0.3 5.0 V
LCD Driving Voltage VDD-VO -0.3 16.0 V
Input Voltage VI -0.3 VDD+0.3 V
Normal temp. type Operating Temp. TOP 0 50 °C
Normal temp. type Storage Temp. TSTG -10 60 °C
Extended temp. type Operating Temp. TOP -20 70 °C
Extended temp. type Storage Temp. TSTG -30 80 °C

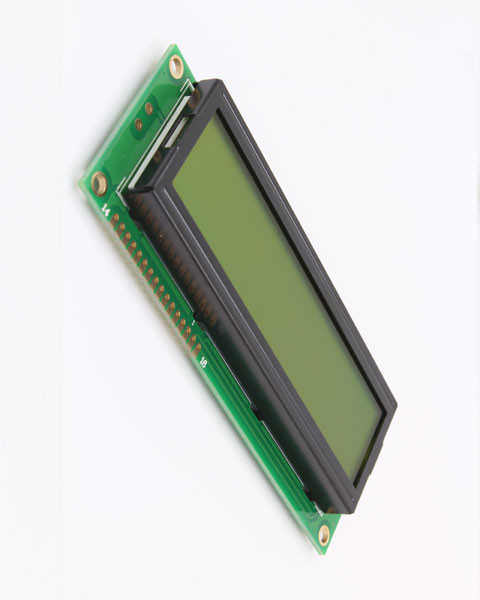

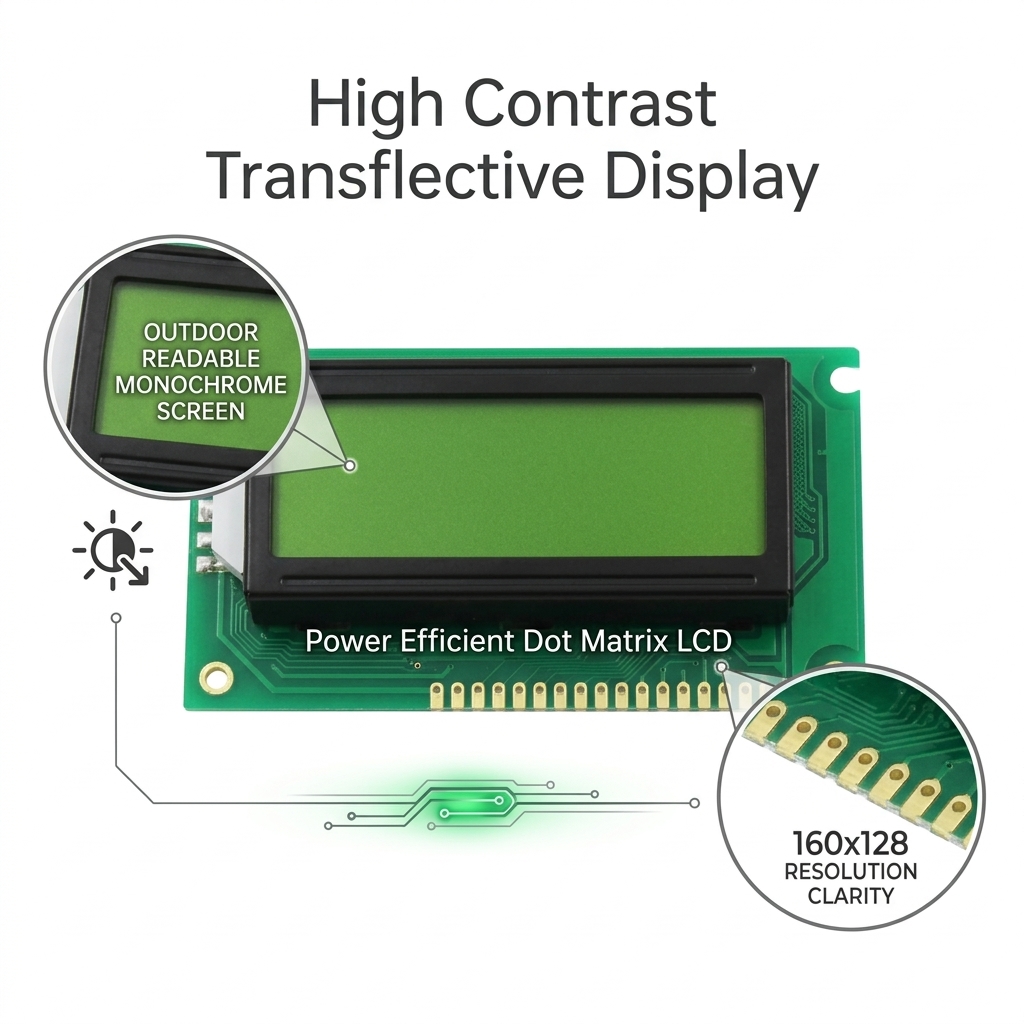

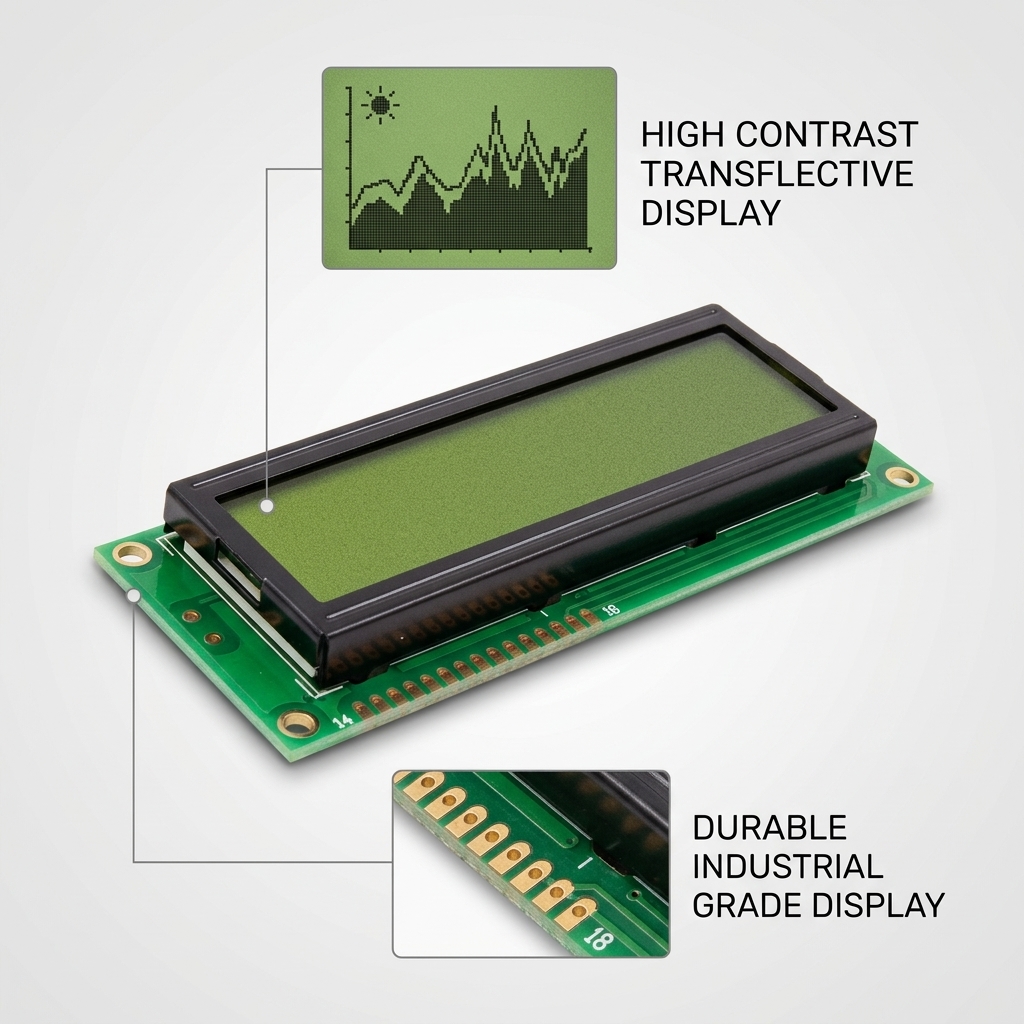

Transflective Monochrome LCD Display 160X128 Dot Matrix LCD Screen 0 Transflective Monochrome LCD Display 160X128 Dot Matrix LCD Screen 1 Transflective Monochrome LCD Display 160X128 Dot Matrix LCD Screen 2
Available COB LCD Modules
Character LCD Modules
Model Content Module Size (W×H mm) View Area (W×H mm) Dot Size (W×H mm) Character Size (W×H mm) Driving Method Controller IC Package STN-Type FSTN-Type
8D-C0802A 8×2 84.0×44.0 63.0×25.0 1.15×1.36 6.07×11.56 1/16 S6A0069 COB Y Y
Graphic LCD Modules
Model Content (W×H) Module Size (W×H mm) View Area (W×H mm) Dot Size (W×H mm) Dot Pitch (W×H mm) Driving Method Controller IC Package STN-Type FSTN-Type
8D-G12232A 122×32 84.0×44.0 60.0×18.5 0.4×0.4 0.44×0.44 1/32 SED1520 COB Y Y

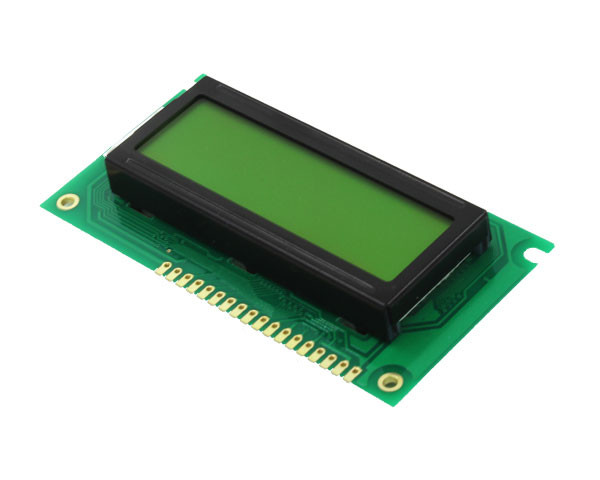

Transflective Monochrome LCD Display 160X128 Dot Matrix LCD Screen 3
