Transflecitve Positive Monochrome LCD Display 300cd/M2 6 O'Clock

1000
MOQ
DISCUSSABLE
Price
Transflecitve Positive Monochrome LCD Display 300cd/M2 6 O'Clock
Features Gallery Product Description Chat Now
Features
Specifications
Name: Monochrome LCD Display
Display Resolution: 160*160 Pexels
LCD Type: FSTN, Transflecitve/Positive,1/160Duty,1/10Bias
Display: OLED
Viewing Area: 60.00×60.00MM
Storage Temperature: -30℃~80℃
Brightness: 300cd/m2
Highlight:

Positive Monochrome LCD Display

,

Mono LCD Display 300cd/m2

,

LCD Monochrome Display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
Transflecitve Positive Monochrome LCD Display 300cd/M2 6 O'Clock
General Specification
ITEM DESCRIPTION UNIT
Outline Size(mm) 80.0(L)×72.5(W)×5.0(T) (Not Include Connector) mm
LCD Type FSTN, Transflecitve/Positive,1/160Duty,1/10Bias ---
Display Type 160×160 dots ---
View Area 60.00×60.00 mm
Display Area 54.38×54.38 mm
Dots Size 0.32×0.32 mm
Dots Pitch 0.34×0.34 mm
Controller & Driver UC1698U (COG) ---
View Direction 6 O'Clock ---
Interface Mode 8 bit 6800,8 bit 8080 ---
VDD&VOP(Type) 3.3 V & 16.3 V V
Backlight Color White, 3.0V, 90mA ---
Operation Temp. -20~+70 ℃
Storage Temp. -30~+80 ℃
Pin Connections
Pin No. Description
1-2 No connection
3-4 High voltage LCD Power Supply. When internal VLCD is used, connect these pins together. When external VLCD source is used, connect external VLCD source to VLCDIN, pins and leave VLCDOUT open.
5 LCD Bias Voltages. These are the voltage sources to provide SEG driving currents. These voltages are generated internally. Connect capacitors of CAX / CBX value between VAX+ / VBX+ and VAX- / VBX-, respectively.
6 VS-
7 VB0-
8 VB1-
9 VB1+
10 VB0+
11-12 Power supply for LCD circuit
13-14 Ground
15 Bus Mode: The interface bus mode is determined by BM0 with the following relationship: BM 0 | Mode 1 | 6800/8-bit 0 | 8080/8-bit
16 Chip Selection. Chip is selected when CS0 = "L". When the chip is not selected, DB [7:0] will be high impedance.
17 Selects Control data or Display data for read/write operation. In S9 mode, CD pin is not used. Connect to VSS when not used. "L": Control data "H": Display data
18 WR[1:0] control the read/write operation of the host interface. In parallel mode, the meaning of WR[1:0] depends on whether the interface is in the 6800 mode or the 8080 mode. In serial interface modes, these two pins are not used, connect them to VSS.
19 WR0(WR)
20 When RST="L", all control registers are re-initialized by their default states. Since UC1698u has built-in Power-ON reset and software reset commands, RST pin is not required for proper chip operation. An RC Filter has been included on-chip. There is no need for external RC noise filter. When RST is not used, connect the pin to VDD.
21-28 Bi-directional bus for parallel host interface (DB0-DB7)

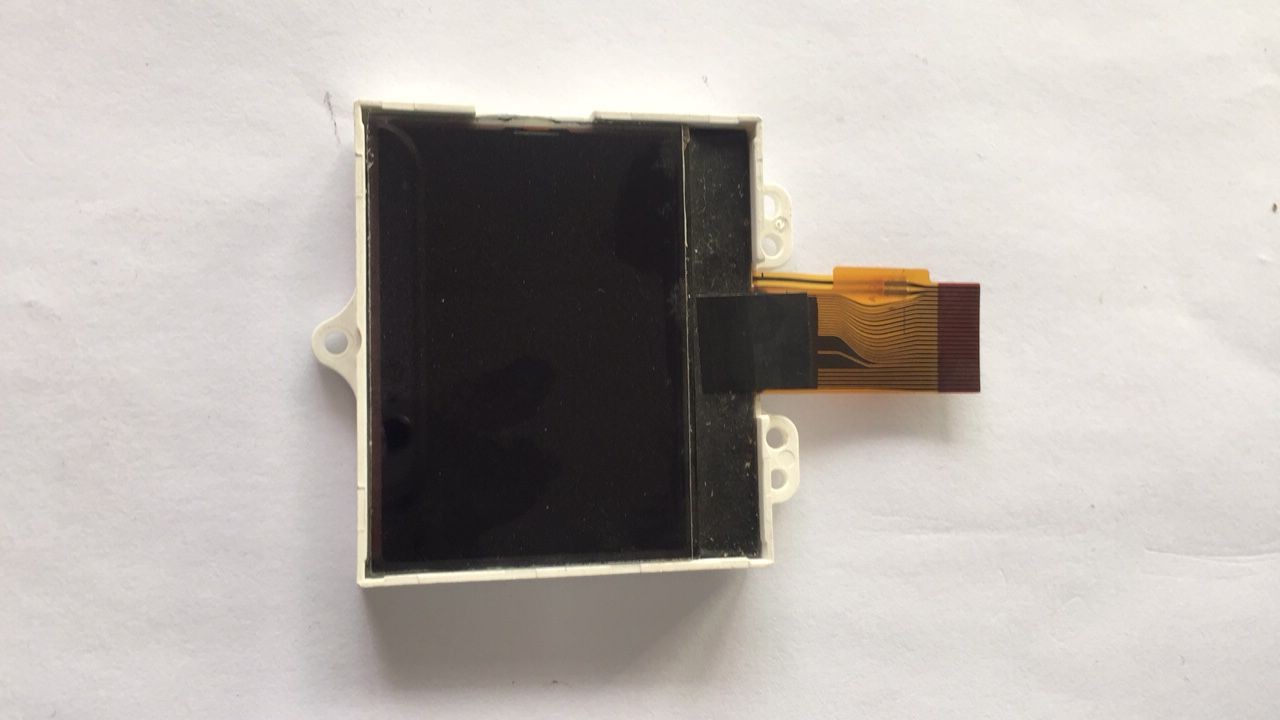

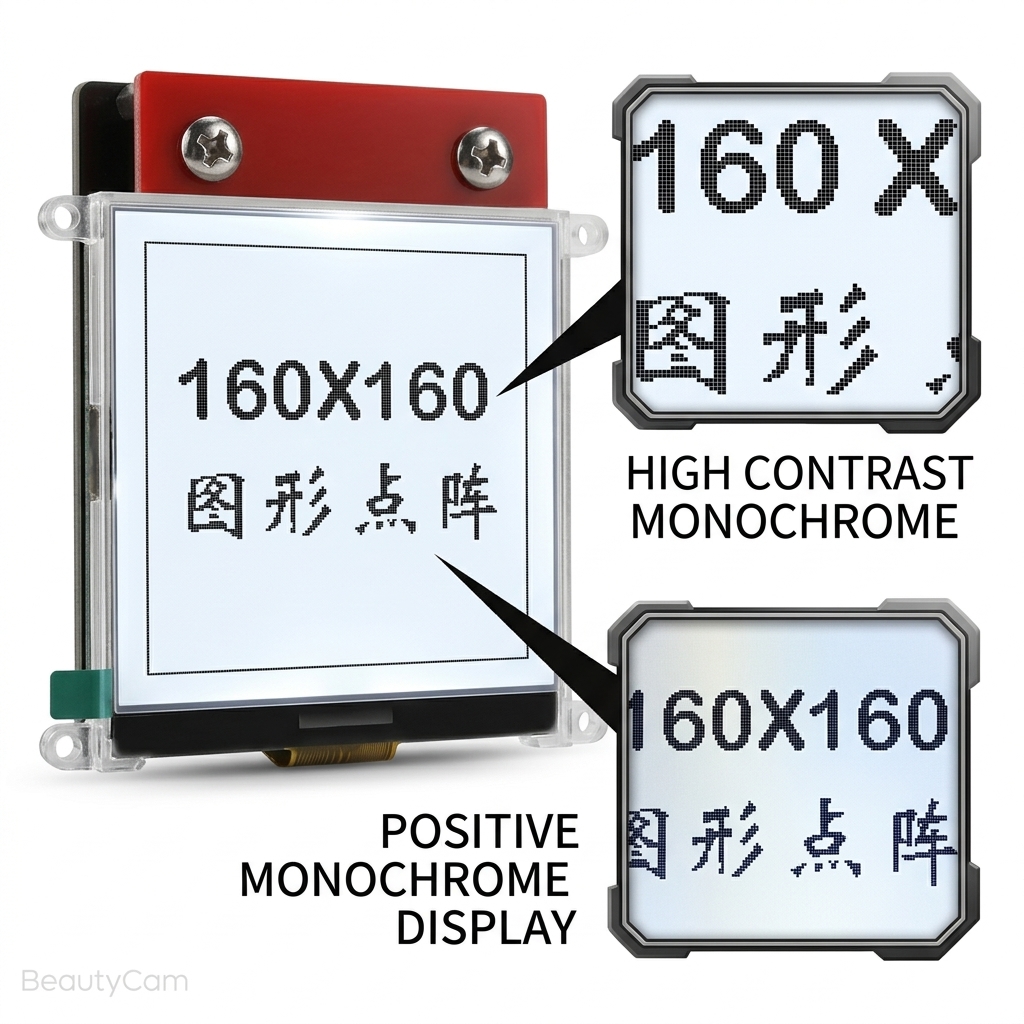

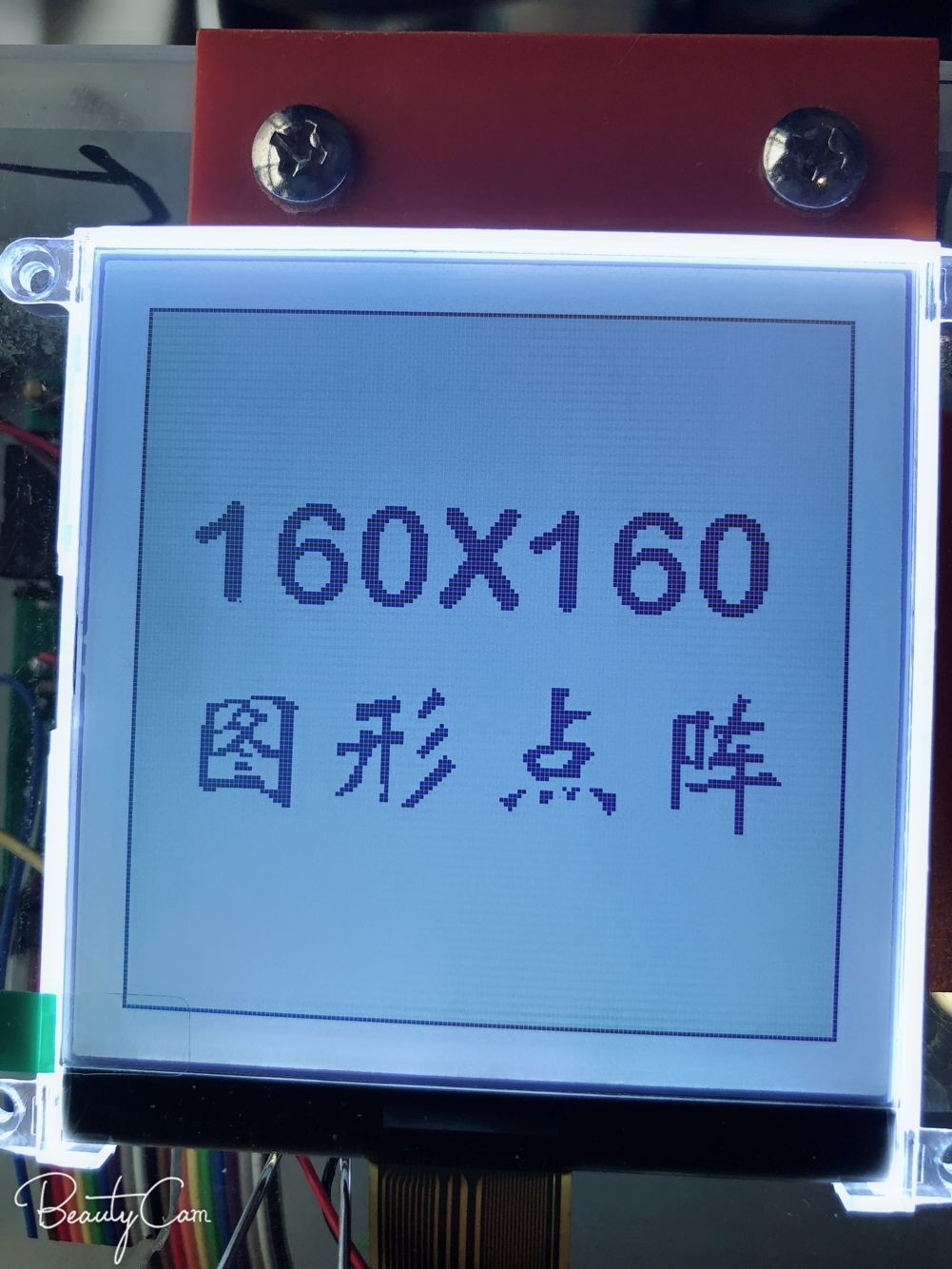

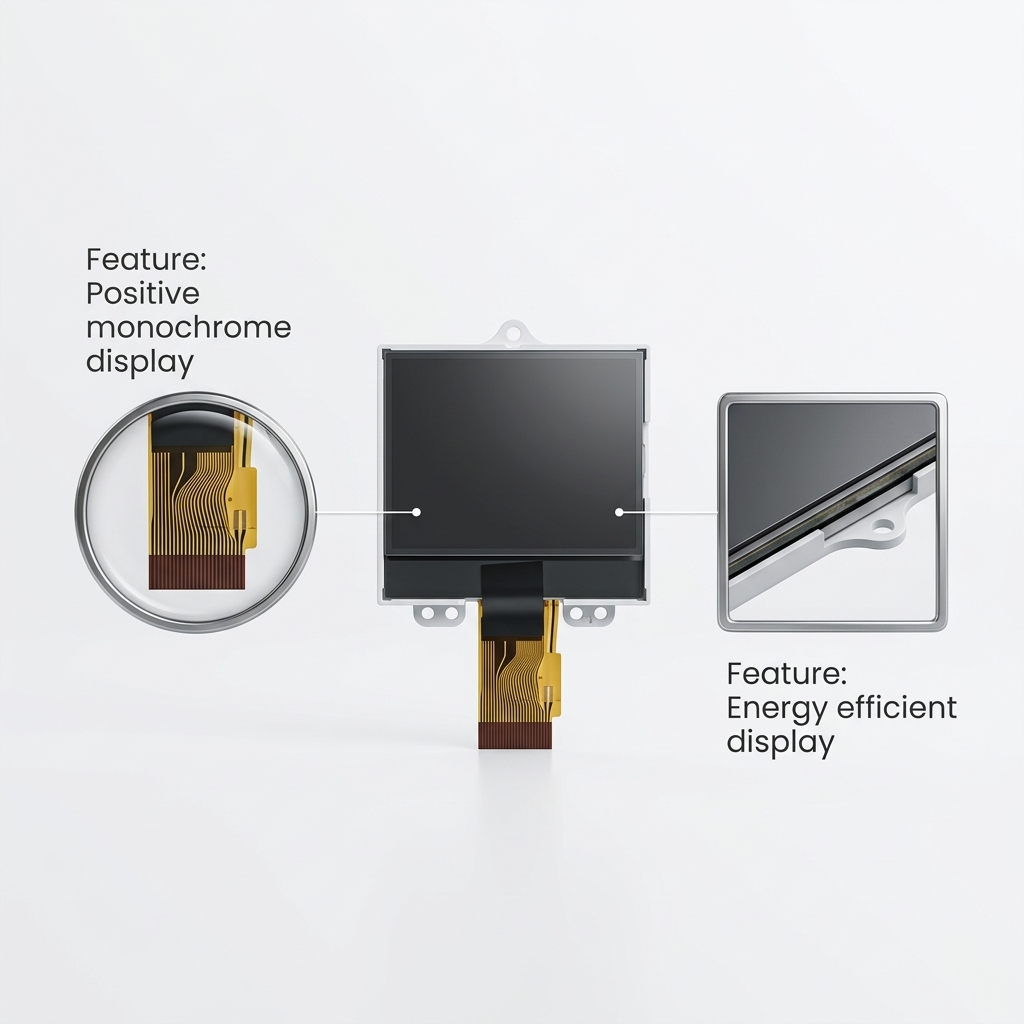

Transflecitve Positive Monochrome LCD Display 300cd/M2 6 O'Clock 0 Transflecitve Positive Monochrome LCD Display 300cd/M2 6 O'Clock 1 Transflecitve Positive Monochrome LCD Display 300cd/M2 6 O'Clock 2
Packaging & Shipping

Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements. Different countries may have specific packaging requirements.

Transflecitve Positive Monochrome LCD Display 300cd/M2 6 O'Clock 3

Shipping: Available via DHL, Fedex, EMS, UPS, air shipping, or sea shipping. Customer can choose preferred shipping method.

Transflecitve Positive Monochrome LCD Display 300cd/M2 6 O'Clock 4
Payment Method
Transflecitve Positive Monochrome LCD Display 300cd/M2 6 O'Clock 5
FAQ
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?

Answer: No problem. Please send us your specification/drawing. If you don't have specifications, you can provide samples; we will recommend suitable standard products or customize based on your requirements.

2. This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.

Answer: For segment type LCD modules, modifying outline size or display content requires a new LCD glass module with new tooling.

3. This LCD display is HTN type, but I want STN type, can you make?

Answer: Yes, we can change the display type according to your request.

4. I want to customize a new LCD module. Can you do?

Answer: Yes, we can. Please send your drawing or provide outline size, display information (glass thickness, polarizer, display type, connector mode, storage/operating temperature, supply voltage, viewing direction, drive condition).

5. What is lead time for tooling?

Answer: Typically 15 to 25 days after drawing confirmation and tooling charge payment. Exact time will be confirmed after drawing approval.

6. Can you send us samples for checking?

Answer: Yes, sample orders are available.

7. What is the Lead Time?

Answer: For standard products in stock, lead time is one day after payment. For special mass production, lead time is about 15-30 days. We will inform you if we can finish earlier.

Our Services
  • Free repair within one year after shipment
  • Replacement within 30 days for product problems
  • Custom logo and model number printing
  • Professional shipping arrangements with discounted rates
  • Technical support and responsive after-sales service
  • Quality inspection before shipment
  • 24-hour response to inquiries
  • Custom LCD display solutions based on your specifications
Product Applications
  • Household appliances: refrigerators, air conditioners, fans, heaters, water heaters, electric blankets, air purifiers, washing machines, dryers, vacuum cleaners, microwave ovens, cookers, rice cookers
  • Communication equipment: telephones, interphones, fax machines, wireless wifi
  • Automotive electronics: entertainment systems, navigators, car audio, reverse radar, cameras, anti-theft devices
  • Instruments: water meters, electric meters, multimeters, electronic scales, pressure/temperature/flow meters
  • Fitness equipment: treadmills, exercise bikes, training devices, pedometers, weighing scales
  • Financial equipment: POS machines, cheque printers, banknote counting machines
  • Consumer electronics: MP3/MP4 players, DVD players, electronic dictionaries, e-readers, calculators
Key Features
  • High resolution and definition
  • High brightness
  • Cost-effective
  • Energy efficient
  • Wide temperature range operation
  • Available in positive or negative display
