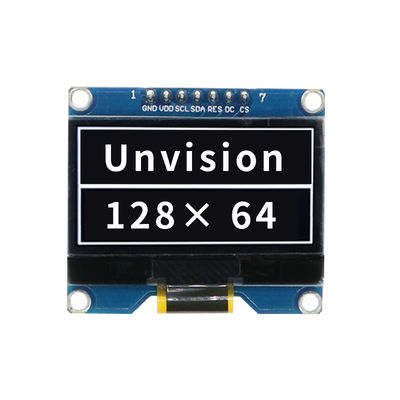

Serial Interface 1.54 Inch OLED Display Panel Blue Color 128x64 Dots 24PIN
The 1.54-inch OLED SPD0301 display is a small, monochrome or color OLED display that uses the SPD0301 controller. It's commonly used in embedded systems, smartwatches, fitness trackers, and other portable devices that need a compact, low-power display.
SPD0301 Controller Overview
The SPD0301 is an OLED driver/controller that supports both monochrome and color OLED displays. It is typically used in small, low-power applications. It supports SPI (and potentially I2C) interfaces for communication with a microcontroller.
While the SPD0301 controller is not as common as other OLED controllers like the SSD1306, it is still widely supported in some libraries for use with Arduino and other microcontrollers.
Detailed Parameters
| 1 |
Brand Name |
Bibuke |
| 2 |
Model Description |
Serial Interface 1.54 Inch OLED Display |
| 3 |
Display Mode |
OLED(Organic Light Emitting Diode) |
| 4 |
Color |
Blue |
| 5 |
Size |
1.54 Inch |
| 6 |
Dot Matrix |
128*64 Pixels |
| 7 |
Module Size |
42.04(W)x27.22(H)x1.41(D) mm |
| 8 |
View Area |
37.052 (W) x 19.516(H) mm |
| 9 |
Active Area |
35.052(W) x17.516(H) mm |
| 10 |
Dot Size |
0.254(W)*0.254(H) mm |
| 11 |
Dot Pitch |
0.274(W)*0.274(H) mm |
| 12 |
Drive IC |
SPD0301ZD |
| 13 |
Interface |
6800/8080 interface, 4 wire serial interface, I2C |
| 14 |
FPC Connector |
24PIN, socket type |
| 15 |
FPC Pitch |
0.5 mm |
| 16 |
Drive Method |
VDD=1.65V~3.3V, Vin=11.5~12.5V |
| 17 |
Viewing Angle |
160° |
Packaging & Shipping
Packaging: Carton boxes, Cupboard, EPE, Blister Tray. The packaging method depends on product size and customer requirements, which may vary by country.
Shipping: Express via DHL, Fedex, EMS, UPS, air shipping, or sea shipping. Any shipping method can be arranged based on customer preference.
Payment Method: Various payment options available.
Frequently Asked Questions
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
Answer: No problem. Please send us your specification/drawing. If unavailable, we can recommend suitable standard products or customize based on your requirements.
2. This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
Answer: For segment type LCD modules requiring size or content modifications, we can create new tooling for customized solutions.
3. This LCD display is HTN type, but I want STN type, can you make?
Answer: Yes, we can modify the display type according to your requirements.
4. I want to customize a new LCD module. Can you do?
Answer: Yes, we can customize based on your specifications. Please provide drawings or detailed requirements including outline size, display information, and technical parameters.
5. What is lead time for tooling?
Answer: Typically 15-25 days after drawing confirmation and tooling payment. Exact timing will be confirmed upon order.
6. Can you send us samples for checking?
Answer: Yes, sample orders are available.
7. What is the Lead Time?
Answer: For standard products in stock, 1 day after payment. For special mass production, 15-30 days. We'll update if earlier completion is possible.
Our Services
- Free repair within one year after shipment
- Replacement within 30 days for product issues
- Custom logo and model number printing available
- Competitive shipping rates through established partnerships
- Professional technical support and after-sales service
- Rigorous quality inspection before shipment
- 24-hour response to customer inquiries
- Customization services based on customer specifications
Product Applications
- Household appliances: Refrigerators, air conditioners, fans, heaters, washing machines, microwave ovens, etc.
- Communication equipment: Telephones, interphones, fax machines, wireless wifi devices
- Automotive electronics: Entertainment systems, navigators, car audio, cameras, anti-theft devices
- Instruments: Water meters, electric meters, multimeters, electronic scales, analytical instruments
- Fitness equipment: Treadmills, fitness bikes, pedometers, electronic sphygmomanometers
- Financial devices: Tax control cash machines, POS systems, banknote counting machines
- Consumer electronics: MP3/MP4 players, electronic dictionaries, learning machines, electronic clocks
Features: High resolution, high definition, high brightness, cost-effective, energy efficient, wide temperature range operation (both positive and negative display options available).
