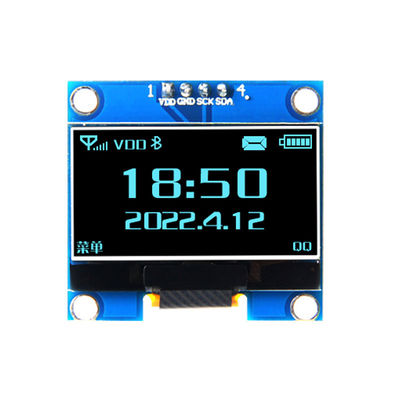

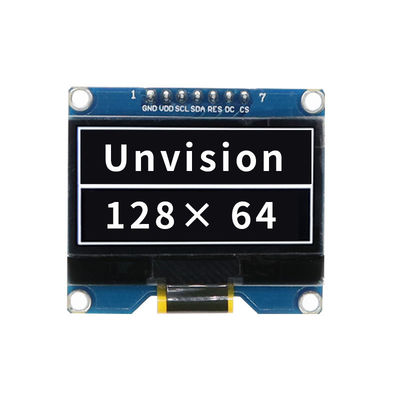

High Contrast 1.54" OLED Display White Color 128x64 Resolution SPD0301 24pin FPC
Product Description
Key Features of the 1.54-inch PMOLED 128x64 Display:
- Display Size: 1.54 inches (diagonal)
- Resolution: 128x64 pixels (monochrome)
- Technology: PMOLED (Passive Matrix OLED), typically black-and-white
- Controller IC: Common controllers include SSD1309 or similar drivers
- Interface: Most commonly I2C or SPI
- Low Power Consumption: Energy-efficient, especially when displaying dark content
- High Contrast: Provides true blacks and high contrast for clear visibility
Detailed Parameters:
| 1 |
Brand Name |
Bibuke |
| 2 |
Model Description |
High Contrast 1.54" OLED Display |
| 3 |
Display Mode |
OLED(Organic Light Emitting Diode) |
| 4 |
Color |
White |
| 5 |
Size |
1.54 Inch |
| 6 |
Dot Matrix |
128*64 Pixels |
| 7 |
Module Size |
42.04(W)x27.22(H)x1.41(D) mm |
| 8 |
View Area |
37.052 (W) x 19.516(H) mm |
| 9 |
Active Area |
35.052(W) x17.516(H) mm |
| 10 |
Dot Size |
0.254(W)*0.254(H) mm |
| 11 |
Dot Pitch |
0.274(W)*0.274(H) mm |
| 12 |
Drive IC |
SPD0301ZD |
| 13 |
Interface |
6800/8080 interface, 4 wire serial interface, I2C |
| 14 |
FPC Connector |
24PIN, socket type |
| 15 |
FPC Pitch |
0.5 mm |
| 16 |
Drive Method |
VDD=1.65V~3.3V, Vin=11.5~12.5V |
| 17 |
Viewing Angle |
160° |
Packaging & Shipping:
Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements, which vary by country.
Shipping: Express options include DHL, Fedex, EMS, UPS, air shipping, and sea shipping. We accommodate preferred shipping methods.
FAQ:
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
Answer: Please send your specification/drawing. If unavailable, we can recommend suitable standard products or customize based on your requirements.
2. This LCD is what we want but too large. Do you have smaller sizes with modified display content?
Answer: For segment type LCD modules requiring size or content changes, we can create new tooling for customized solutions.
3. This LCD display is HTN type, but I want STN type. Can you make it?
Answer: Yes, we can modify the display type according to your specifications.
4. Can you customize a new LCD module?
Answer: Yes. Please provide drawings or specifications including outline size, display information, glass thickness, polarizer type, connector mode, temperature requirements, and drive conditions.
5. What is the lead time for tooling?
Answer: Typically 15-25 days after drawing confirmation and tooling payment. Exact timing will be confirmed upon order.
6. Can you send samples for checking?
Answer: Yes, sample orders are available.
7. What is the lead time?
Answer: For standard products in stock: 1 day after payment. For mass production of special orders: 15-30 days. We'll update if completed earlier.
Our Services:
- Free repair within one year after shipment
- Replacement within 30 days for product issues
- Custom logo and model number printing available
- Discounted shipping rates through our partner carriers
- Professional technical support and after-sales service
- All products inspected and tested before shipment
- 24-hour response time for customer inquiries
- Custom LCD display solutions based on your specifications
Product Applications:
- Household appliances: Refrigerators, air conditioners, water heaters, washing machines, microwave ovens, etc.
- Communication equipment: Telephones, interphones, fax machines, wireless wifi devices
- Automotive electronics: On-board entertainment systems, navigation, car audio, cameras
- Instruments: Water meters, electric meters, multimeters, analytical instruments
- Fitness equipment: Treadmills, fitness bikes, electronic scales
- Financial devices: Tax control machines, POS systems, banknote counters
- Consumer electronics: MP3/MP4 players, electronic dictionaries, calculators
Features: High resolution, high definition, brightness, cost-effective, energy efficient, wide temperature range operation.
