SH1106 1.3 Inch OLED Display 128x64 Dots with 30PIN Soldering FPC

1000
MOQ
DISCUSSABLE
Price
SH1106 1.3 Inch OLED Display 128x64 Dots with 30PIN Soldering FPC
Features Gallery Product Description Chat Now
Features
Specifications
Color: White
Active Area: 29.42(W) X14.7(H) Mm
Interface: 6800/8080 Interface, 4 Wire Serial Interface, I2C
Viewing Angle: 160°
Size: 1.3inch
Drive IC: SH1106G
Module Size: 34.5(W)x23.0(H)x1.427(D) Mm
Backlight Technology: LED
Highlight:

128x64 Dots OLED Display

,

30PIN Soldering FPC OLED Display

,

SH1106 OLED
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
SH1106 1.3 Inch OLED Display 128x64 Dots with 30PIN Soldering FPC
High Contrast 1.3 Inch OLED Display 128x64 Dots SH1106 30PIN Soldering FPC
Product Overview
This 1.3-inch OLED display features a high-contrast white-on-black display with 128x64 resolution, driven by SH1106 controller with 30-pin soldering FPC interface.
Key Specifications
Panel Size 1.3 Inch (Diagonal)
Resolution 128*64 Dots
Display Color White
Driver IC SH1106
FPC 30pin, Soldering
Key Features
  • High Contrast: Self-illuminating OLED technology delivers true blacks and excellent contrast
  • Wide Viewing Angle: 160° viewing angle with minimal color shift
  • Ultra-Thin Design: Only 1.4mm thickness with lightweight construction
  • Low Power Consumption: Approximately 0.06W during operation
  • Wide Temperature Range: Operates from -40°C to 80°C
  • Multiple Interfaces: Supports 6800/8080 parallel, 4-wire serial, and I2C interfaces
Technical Parameters
Display Mode OLED (Organic Light Emitting Diode)
Module Size 34.5(W) * 23.0(H) * 1.427(D) mm
View Area 31.42(W) * 16.7(H) mm
Active Area 29.42(W) * 14.7(H) mm
Dot Size 0.21(W) * 0.21(H) mm
Dot Pitch 0.23(W) * 0.23(H) mm
Drive IC SH1106G
Voltage VDD=1.65~3.3V, Vin=3.5~4.2V
Applications
Ideal for wearable devices (smart watches, fitness trackers), instrumentation, medical equipment, communication devices, electronic timers, and various industrial applications requiring high-visibility displays.

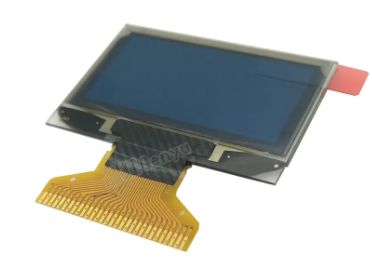

SH1106 1.3 Inch OLED Display 128x64 Dots with 30PIN Soldering FPC 0

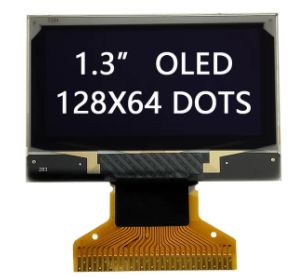

SH1106 1.3 Inch OLED Display 128x64 Dots with 30PIN Soldering FPC 1

SH1106 1.3 Inch OLED Display 128x64 Dots with 30PIN Soldering FPC 2
