Vertical 0.96 Inch OLED Screen 128x64 Dots SH1107 Display with 13PIN Soldering FPC

1000
MOQ
DISCUSSABLE
Price
Vertical 0.96 Inch OLED Screen 128x64 Dots SH1107 Display with 13PIN Soldering FPC
Features Gallery Product Description Chat Now
Features
Specifications
Pins Number: 13Pins
Size: 0.96inch
Resolution: 128 X 64
Va Size: 11.86 (W) X 22.74(H) Mm
Touchscreen: No
Active Area: 10.86 (W) X 21.74(H) Mm
Fpc Connect: 13PIN, Soldering
Colors: White
Highlight:

Vertical 0.96 Inch OLED Screen

,

128x64 Dots OLED Screen

,

SH1107 Display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
Vertical 0.96 Inch OLED Screen 128x64 Dots SH1107 Display

This vertical type 0.96-inch OLED display with SH1107 driver and 13PIN soldering FPC is a popular small OLED display frequently used in microcontroller projects. It offers similar functionality to displays using other controllers like SSD1306, with differences in communication and display handling.

Key Features
  • Driver IC: SH1107 controller
  • Resolution: 128×64 pixels
  • Display Type: Monochrome (black and white) OLED
  • Size: 0.96 inches diagonally
  • Communication Protocol: Typically uses I2C or SPI (I2C more common)
  • Interface: Compatible with both I2C and SPI interfaces
Detailed Specifications
Display Mode OLED (Organic Light Emitting Diode)
Color White
Size 0.96 inch
Dot Matrix 64×128 Pixels
Module Size 14.0(W)×28.0(H)×1.227(D) mm
View Area 11.86(W)×22.74(H) mm
Active Area 10.86(W)×21.74(H) mm
Dot Size 0.15(W)×0.15(H) mm
Dot Pitch 0.17(W)×0.17(H) mm
Drive IC SH1107
Interface 4-wire serial, I2C
FPC Connector 13PIN, soldering
Voltage VDD=1.65~3.3V, Vin=8.5~9.5V
Viewing Angle 160°

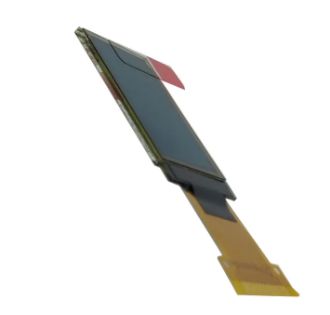

Vertical 0.96 Inch OLED Screen 128x64 Dots SH1107 Display with 13PIN Soldering FPC 0

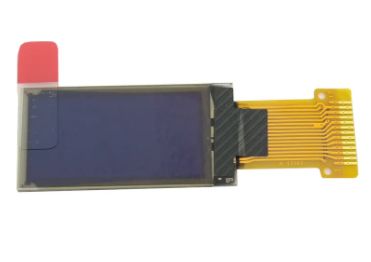

Vertical 0.96 Inch OLED Screen 128x64 Dots SH1107 Display with 13PIN Soldering FPC 1
Applications
Smart Wearable Devices
Ideal for smart watches and bracelets, with vertical design and small size suitable for wrist wear. The 128×64 resolution clearly displays health data and notifications, while low power consumption extends battery life.
Smart Home Devices
Used in control panels and sensor devices, displaying environmental data in real time with high contrast visibility in various lighting conditions.
Instrumentation
Suitable for portable instruments like multimeters and gas detectors, providing clear measurement data display and enhancing portability.
Consumer Electronics
Used in music players, electronic dictionaries, and game consoles, offering clear display interfaces and compact product integration.
Industrial Control
Applied in automation controllers and indicator panels, displaying operational status and fault information with stable performance in industrial environments.

Vertical 0.96 Inch OLED Screen 128x64 Dots SH1107 Display with 13PIN Soldering FPC 2
