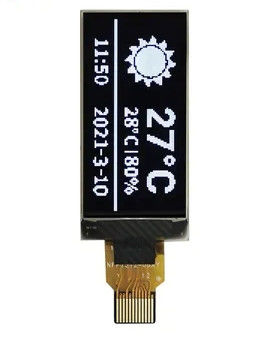

Energy Efficient 1.3 Inch OLED Display White Fonts 128x64 Dots SSD1312 OLED Screen
The 1.3-inch OLED display with the SSD1312 controller is a small, high-resolution OLED display commonly used in various embedded and DIY electronics projects. Like other OLED displays, it offers excellent contrast, low power consumption, and a compact form factor, making it ideal for small handheld devices, wearables, and IoT applications.
Key Features of 1.3-inch OLED (SSD1312):
- Display Size: 1.3 inches (diagonal)
- Resolution: 128x64 pixels (monochrome)
- Controller IC: SSD1312
- Interface: Supports I2C or SPI communication (though I2C is more commonly used)
- Color: Monochrome (usually black and white, though some color versions may exist)
- Low Power Consumption: OLED displays are energy-efficient, especially for dark content
- Excellent Contrast: OLED provides true blacks and vibrant colors due to each pixel being individually controlled
Detailed Parameters:
| Parameter |
Value |
| Brand Name |
Bibuke |
| Model Description |
Energy Efficient 1.3 Inch OLED Display |
| Display Mode |
OLED (Organic Light Emitting Diode) |
| Color |
White |
| Size |
1.3 inch |
| Dot Matrix |
64*128 Pixels |
| Module Size |
17.1(W) x 35.8(H) x 1.43(D) mm |
| View Area |
15.06 (W) x 30.42(H) mm |
| Active Area |
14.10 (W) x 28.82(H) mm |
| Dot Size |
0.21(W)*0.21(H) mm |
| Dot Pitch |
0.23(W)*0.23(H) mm |
| Drive IC |
SSD1312 |
| Interface |
4-wire SPI, I2C |
| FPC Connector |
12PIN, socket type |
| FPC Pitch |
0.5 mm |
| Viewing Angle |
160° |
Packaging & Shipping:
Packaging: Carton boxes, Cupboard, EPE, Blister Tray. The packaging method depends on product size and customer requirements, which may vary by country.
Shipping: Express options include DHL, Fedex, EMS, UPS, air shipping, and sea shipping. Any shipping method can be arranged based on customer preference.
Payment Method:
FAQ:
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
Answer: No problem. Please send us your specification/drawing. If unavailable, we can recommend suitable standard products or customize based on your requirements.
2. This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
Answer: For segment type LCD modules requiring size or content modifications, new LCD glass module tooling would be required.
3. This LCD display is HTN type, but I want STN type, can you make?
Answer: Yes, we can modify the display type according to your request.
4. I want to customize a new LCD module. Can you do?
Answer: Yes, we can customize based on your specifications. Please provide drawings or details including outline size, display information, glass thickness, polarizer type, connector mode, and operating conditions.
5. What is lead time for tooling?
Answer: Typically 15-25 days after drawing confirmation and tooling payment. Exact timeline will be confirmed upon drawing approval.
6. Can you send us samples for checking?
Answer: Yes, sample orders are available.
7. What is the Lead Time?
Answer: Standard products in stock ship within 1 day after payment. Custom mass production typically takes 15-30 days, with earlier completion updates provided when possible.
Our Services:
- Free repair within one year after shipment
- Replacement within 30 days for product-related issues
- Custom branding with your logo and model number
- Competitive shipping rates through established partnerships
- Professional technical support and responsive after-sales service
- Rigorous quality control with pre-shipment inspection
- 24-hour response time for customer inquiries
- Custom LCD display solutions based on your specifications
Production Line:
☆ Clean Room class 10k@0.8um, Pressure 0.8kgf
☆ Antistatic floor, resistance: 1x10 ohm to 1x10 ohm
☆ COG production lines: 4
☆ Backlight production lines: 2
☆ Monthly production capacity: 1 million units
In compliance with ISO9001 Quality Management
One year's guarantee for unartificial damage
Small LCD display screen
Reasonable price
Large capacity
Certifications: ISO, Rohs, REACH
Custom dimensions available
STN blue small LCD display screen
