1.3 Inch I2C OLED Display Module White Color 128x64 Resolution SH1106

1000
MOQ
DISCUSSABLE
Price
1.3 Inch I2C OLED Display Module White Color 128x64 Resolution SH1106
Features Gallery Product Description Chat Now
Features
Specifications
Outline Drawing: According To The Annexed Outline Drawing
Pixel Pitch: 0.7*0.7MM
Display: Oled
FPC Connector: 4PIN, Soldering
Sizes Range: 1.3 Inch
Pixel: 128*64
Name: OLED Display
Highlight:

1.3 Inch I2C OLED Display

,

I2C OLED Module

,

SH1106 OLED Display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Model Number: BBI-001
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
1.3 Inch I2C OLED Display Module White Color 128x64 Resolution SH1106
Key Features
  • Display Size: 1.3 inches (diagonal)
  • Resolution: 128x64 pixels (monochrome)
  • Controller: SH1106
  • Interface: I2C (or SPI, but I2C is more common for this display)
  • Power Consumption: Very low, especially when displaying darker content
  • Excellent Contrast: OLED technology provides perfect black levels and high contrast ratios
  • Color: Typically black/white, but other color combinations may exist (blue/white)
Detailed Parameters
1 Brand Name Bibuke
2 Model Description 1.3 Inch I2C OLED Display
3 Display Mode OLED(Organic Light Emitting Diode)
4 Color White
5 Size 1.3 Inch
6 Dot Matrix 128*64 Pixels
7 Module Size 35.5(W) x 33.5(H) x 11.3(D) mm
8 View Area 31.42 (W) x 16.70(H) mm
9 Active Area 29.42 (W) x 14.70(H) mm
10 Dot Size 0.21(W)*0.21(H) mm
11 Dot Pitch 0.23(W)*0.23(H) mm
12 Drive IC SH1106G
13 Interface I2C
14 FPC Connector 4PIN, soldering
15 PIN Pitch 2.54 mm
16 Drive Method VCC=3.3V~4.2V
17 Viewing Angle 160°

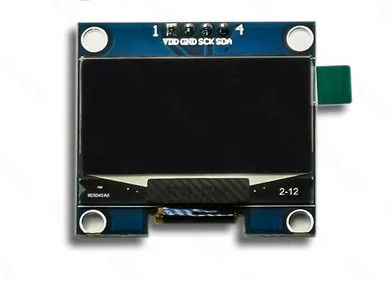

1.3 Inch I2C OLED Display Module White Color 128x64 Resolution SH1106 0 1.3 Inch I2C OLED Display Module White Color 128x64 Resolution SH1106 1 1.3 Inch I2C OLED Display Module White Color 128x64 Resolution SH1106 2
Packaging & Shipping

Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements, which may vary by country.

1.3 Inch I2C OLED Display Module White Color 128x64 Resolution SH1106 3

Shipping: Express via DHL, Fedex, EMS, UPS, air shipping, or sea shipping. Any shipping method available based on customer preference.

1.3 Inch I2C OLED Display Module White Color 128x64 Resolution SH1106 4
Payment Method
1.3 Inch I2C OLED Display Module White Color 128x64 Resolution SH1106 5
Frequently Asked Questions
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
Answer: No problem. Please send us your specification/drawing. If you don't have specifications, you can provide samples and we'll recommend suitable products or customize based on your requirements.
2. This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
Answer: For segment type LCD modules, modifying outline size or display content requires new LCD glass module tooling.
3. This LCD display is HTN type, but I want STN type, can you make?
Answer: Yes, we can change the display type according to your request.
4. I want to customize a new LCD module. Can you do?
Answer: Yes, we can. Please send your drawing or provide outline size, display information (glass thickness, polarizer, display type, connector mode, temperature ranges, supply voltage, viewing direction, drive conditions).
5. What is leading time for tooling?
Answer: Typically 15 to 25 days after drawing confirmation and tooling payment. Exact time will be confirmed after drawing approval.
6. Can you send us samples for checking?
Answer: Yes, sample orders are available.
7. What is the Leading Time?
Answer: For standard products in stock, 1 day after payment. For special mass production, 15-30 days. We'll inform you if we can finish earlier.
Our Services
  • Free repair within one year after shipment
  • Replacement within 30 days for product defects
  • Custom logo and model number printing available
  • Discounted shipping rates through our partner carriers
  • Professional technical support and after-sales service
  • All products inspected and tested before shipment
  • 24-hour response time for customer inquiries
  • Customization available based on your specifications
Product Applications
  • Household appliances: Refrigerators, air conditioners, fans, heaters, water heaters, electric blankets, air purifiers, washing machines, dryers, vacuum cleaners, microwave ovens, cookers, rice cookers
  • Communication equipment: Telephones, interphones, fax machines, wireless wifi
  • Automotive electronics: Entertainment systems, car navigation, audio systems, reverse radar, cameras, anti-theft devices
  • Instruments: Water meters, electric meters, multimeters, electronic scales, pressure meters, temperature meters, flow meters
  • Fitness equipment: Treadmills, exercise bikes, training devices, pedometers, weighing scales
  • Financial equipment: POS machines, cheque printers, banknote counting machines, tax control invoice machines
  • Consumer electronics: MP3/MP4 players, DVD players, electronic dictionaries, e-readers, learning machines, electronic clocks, calculators
Production Line
  • Clean Room class 10k@0.8um, Pressure 0.8kgf
  • Antistatic floor, resistance: 1x10 ohm to 1x10 ohm
  • COG production lines: 4
  • Backlight production lines: 2
  • Monthly capacity: 1 million units
1.3 Inch I2C OLED Display Module White Color 128x64 Resolution SH1106 6
  • ISO9001 Quality Management certified
  • One year warranty for non-artificial damage
  • Small LCD display screens
  • Competitive pricing
  • Large production capacity
  • Certifications: ISO, RoHS, REACH
  • Custom dimensions available
  • STN blue small LCD display screens

1.3 Inch I2C OLED Display Module White Color 128x64 Resolution SH1106 7
