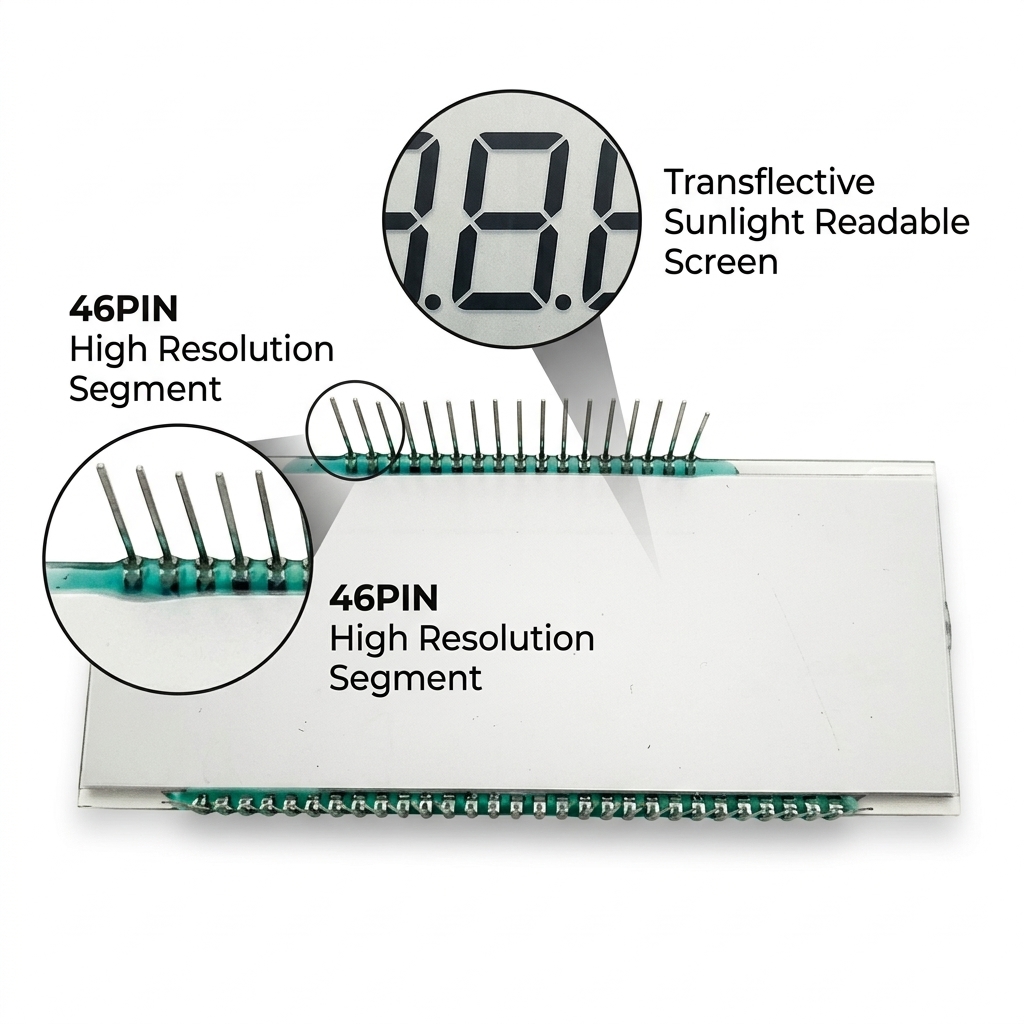

Custom Made LCD Display HTN Segment Screen 46PIN Transflective Sunlight Readable

Product Description

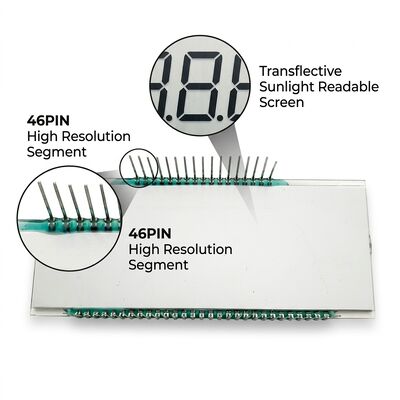

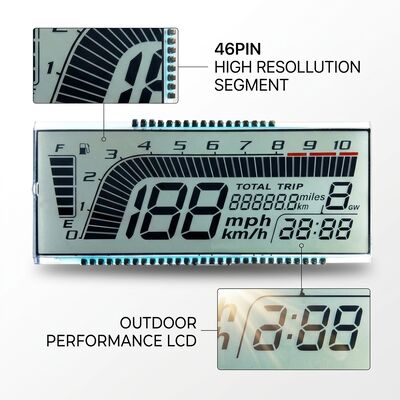

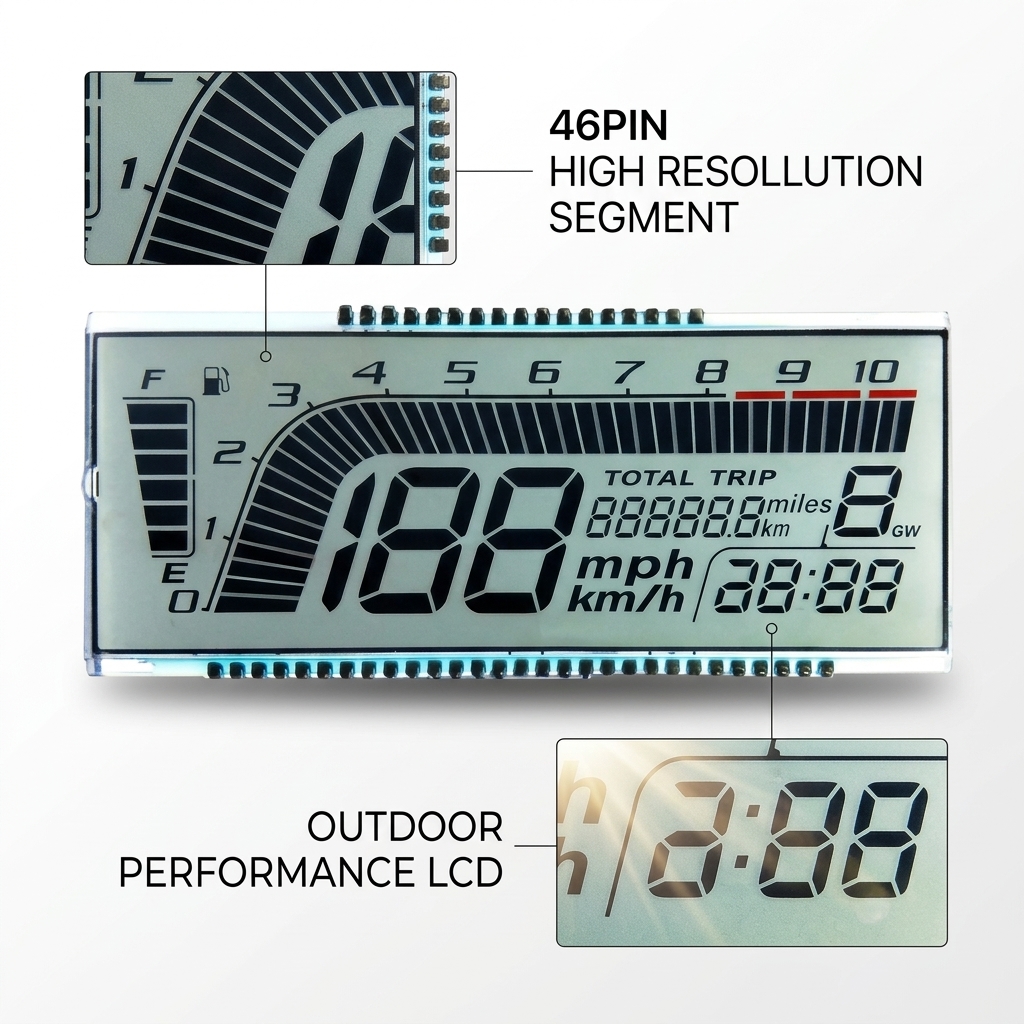

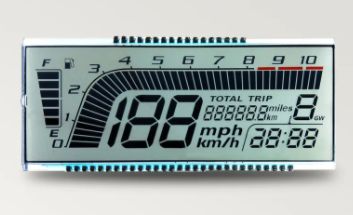

Custom Made LCD Display HTN Segment Screen 46PIN Transflective Sunlight Readable

A segment LCD (Liquid Crystal Display) uses liquid crystals to create visual output, typically for displaying numbers, letters, and simple symbols. Segment LCDs are most commonly used in devices such as clocks, calculators, thermometers, and other appliances where numeric or alphanumeric output is needed.

Key Specifications

LCD Type	HTN Positive
Polarizer Type	Transflective
Viewing Angle	6 O' Clock
Operating Temperature	0~+50℃
Connector	PIN, 46 Numbers
Working Voltage	5.0V
Backlight	White

Structure and Working Principle

How It Works: Each segment is an individual pixel in the display. When a voltage is applied to a segment, the liquid crystals change alignment, allowing light to pass through or be blocked.
Control and Driver Circuits: Segment LCDs require a controller or driver circuit that can control the activation of each segment, typically achieved with multiplexing techniques.

Detailed Parameters

NO.	ITEM	SPECIFICATIONS
1	LCD Type	HTN positive, Transflective
2	Viewing Angle	6 O'clock
3	Drive Method	1/4 Duty, 1/3 Bias, VOP=5.0V
4	Operating Temperature	0~+50℃
5	Storage Temperature	-10~+60℃
6	Connector	PIN, 46 numbers
7	Backlight	LED, white
8	LCD Outline Dimension	99.8(W)* 42.0(H)* 2.8(T) mm
9	View Area	96.8(W)* 35.0(H) mm

HTN Segment Screen Features

HTN (High-Twist Nematic) LCD screen is an improved type of TN (Twisted Nematic) liquid crystal display technology with advantages such as high contrast, wide viewing angle (usually over 120°), fast response time, and relatively low cost with high cost-effectiveness.

46PIN Interface

The 46PIN interface is used to connect LCD screens with other components such as driving circuits, and can transmit data and control signals to drive and control the screen display content.

Transmissive Sunlight Readable

To achieve sunlight readability, it is usually necessary to increase the screen's light transmittance and contrast, reduce reflection, and may adopt special optical design or coatings to ensure clear visibility even in strong sunlight.

Customization Process

Demand Analysis: Communicate with the supplier to clarify specific requirements and determine technical parameters.
Solution Design: Supplier designs a preliminary technical solution and provides samples for confirmation.
Sample Production and Testing: Produce samples and conduct strict functional and environmental tests.
Mass Production and Quality Control: After sample confirmation, conduct mass production with strict quality control.

Custom Made LCD Display HTN Segment Screen 46PIN Transflective Sunlight Readable 2
