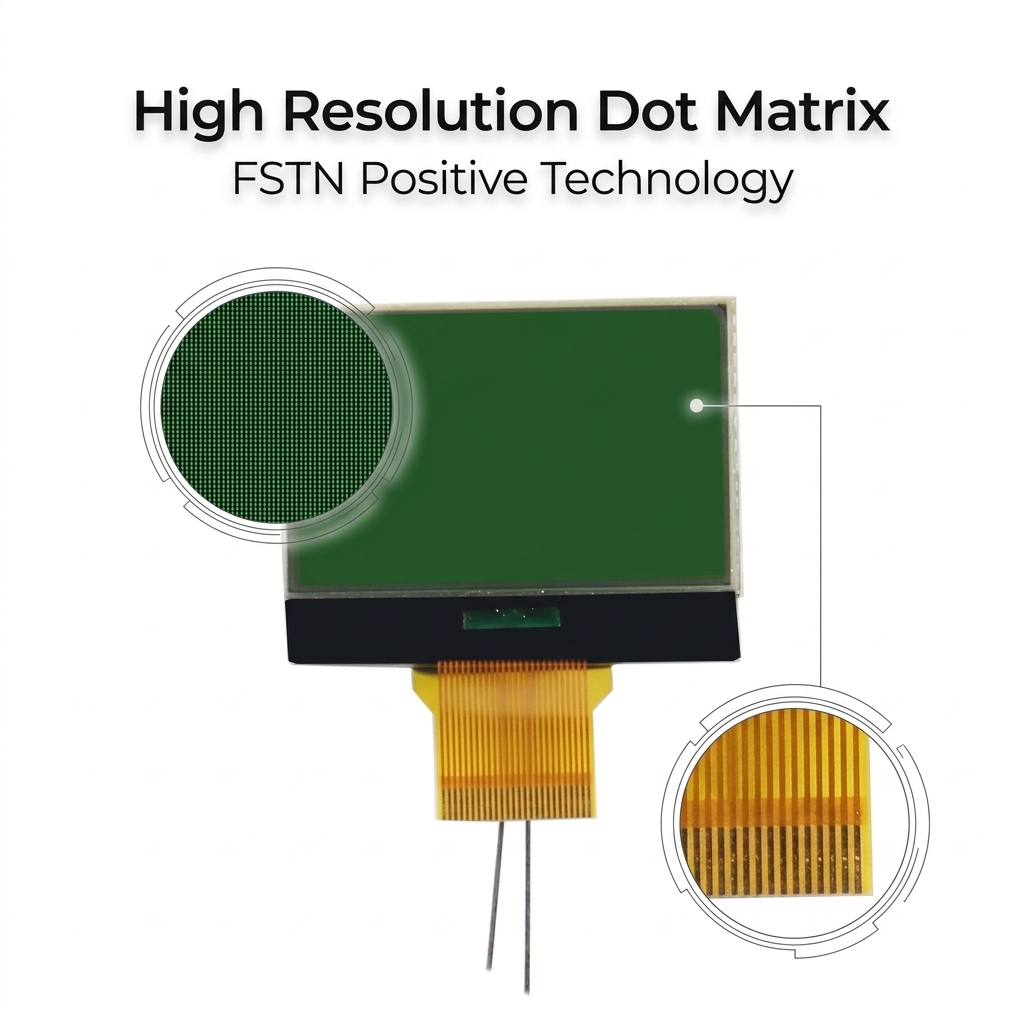

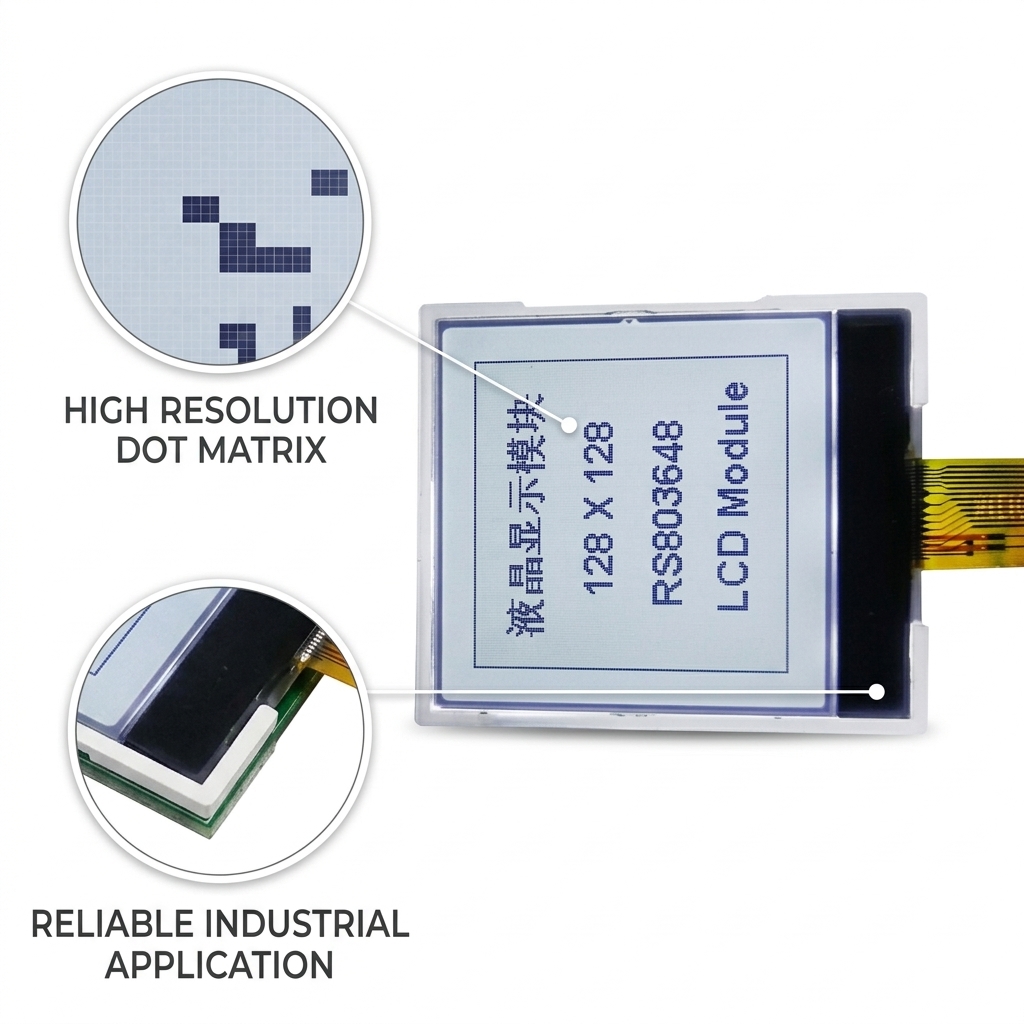

Custom Segment LCD Display 128x128 DOTS FSTN Positive Transflective
Custom Segment LCD Display 128*128 DOTS FSTN, Positive, Transflective
General Specification:
| Display Format |
128*128 DOTS |
| Power Supply |
3.0 V |
| Display Type |
FSTN, Positive, Transflective |
| Viewing Direction |
12 O'clock |
| LCD Driving Method |
1/128 Duty, 1/11 Bias,13.5 V |
| Driver IC |
UC1617S |
| Input Data |
Serial |
| Module Size (W*H*T) |
51.9*57.38*4.0 mm |
| Viewing Area (W*H) |
46.68*45.78mm |
| Active Area (W*H) |
40.94*40.94mm |
| Dot Size (W*H) |
0.30*0.30mm |
| Dot Pitch (W*H) |
0.32*0.32mm |
| Backlight |
sidelight, White, 4PCS, LED, 60mA, 3.1 V(TYP.) |
ABSOLUTE MAXIMUM RATINGS:
| Item |
Symbol |
MIN |
Max |
Unit |
| Supply Voltage |
VDD |
-0.3 |
4.0 |
V |
| VLCD |
|
-0.3 |
19.8 |
V |
| Input Voltage |
Vin |
-0.4 |
VDD+0.5 |
V |
| Absolute maximum forward current (Backlight) |
Ifm |
-- |
60 |
mA |
| Reverse voltage (Backlight) |
Vr |
-- |
3.1 |
V |
| Operating temperature |
Topr |
-20 |
70 |
℃ |
| Storage temperature |
Tstr |
-30 |
80 |
℃ |
PRODUCT DRAWING
Packaging & Shipping:
Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements, which may vary by country.
Shipping: Available via DHL, Fedex, EMS, UPS, air shipping, or sea shipping. We accommodate preferred shipping methods.
Payment Method:
FAQ:
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
Answer: No problem. Please send us your specification/drawing. If unavailable, we can recommend suitable standard products or customize based on your requirements.
2. This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
Answer: For segment type LCD modules requiring size or content modifications, we can create new tooling for a custom LCD glass module.
3. This LCD display is HTN type, but I want STN type, can you make?
Answer: Yes, we can modify the display type according to your request.
4. I want to customize a new LCD module. Can you do?
Answer: Yes. Please provide your drawing or specifications including outline size, display information (glass thickness, polarizer, display type, connector mode, temperature ranges, voltage, viewing direction, drive conditions).
5. What is leading time for tooling?
Answer: Typically 15-25 days after drawing confirmation and tooling payment. Exact timeline will be confirmed upon drawing approval.
6. Can you send us samples for checking?
Answer: Yes, sample orders are available.
7. What is the Leading Time?
Answer: Standard products in stock ship within 1 day after payment. Custom mass production typically takes 15-30 days, with updates provided if completed earlier.
