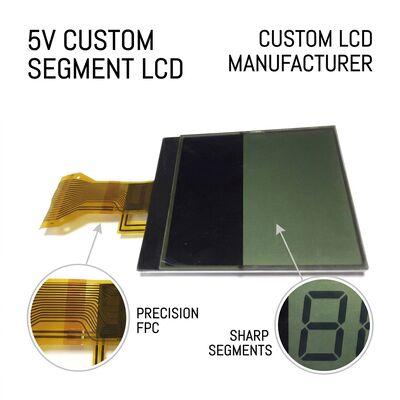

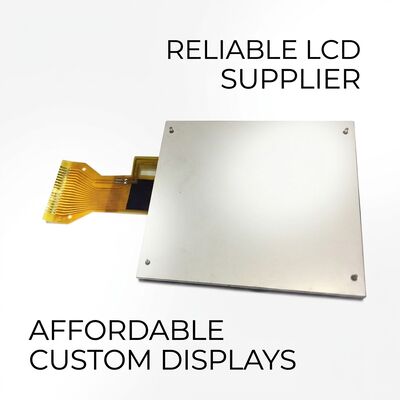

5.0V Custom Segment LCD Display 1/6 Duty 1/3 Bias Custom LCD Screen Manufacturer

1000
MOQ
DISCUSSABLE
Price
5.0V Custom Segment LCD Display 1/6 Duty 1/3 Bias Custom LCD Screen Manufacturer
Features Gallery Product Description Chat Now
Features
Specifications
Name: Custom Segment LCD Display
Drive Voltage: 3.3V
Drive Method: 1/6 Duty, 1/3 Bias
Display Type: Segment
Customization Options: Customizable
Storage Temperature: Customizable
Backlight Type: LED
Highlight:

5.0V Custom Segment LCD Display

,

Custom Made LCD Screens 1/6 Duty

,

1/3 Bias Custom LCD Screen Manufacturer
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
5.0V Custom Segment LCD Display 1/6 Duty 1/3 Bias Custom LCD Screen Manufacturer
General Specification
Display Format 216*64DOTS
Power Supply 3.3V
Display Type STN-BLUE, TRANSMISSIVE
Viewing Direction 12.00 O'clock
LCD Driving Method 1/64 Duty, 1/9 Bias, 9.0V
Driver IC ST75256
ABSOLUTE MAXIMUM RATINGS
Item Symbol MIN Max Unit
Supply Voltage VDD -0.3 3.6 V
VLCD -0.3 13.5 V
Operating temperature Topr -20 70 ℃
Storage temperature Tstr -30 80 ℃
5.0V Custom Segment LCD Display 1/6 Duty 1/3 Bias Custom LCD Screen Manufacturer 0 5.0V Custom Segment LCD Display 1/6 Duty 1/3 Bias Custom LCD Screen Manufacturer 1 5.0V Custom Segment LCD Display 1/6 Duty 1/3 Bias Custom LCD Screen Manufacturer 2 5.0V Custom Segment LCD Display 1/6 Duty 1/3 Bias Custom LCD Screen Manufacturer 3
Packaging & Shipping

Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements, which may vary by country.

5.0V Custom Segment LCD Display 1/6 Duty 1/3 Bias Custom LCD Screen Manufacturer 4

Shipping: Express options include DHL, Fedex, EMS, UPS, air shipping, and sea shipping. We accommodate preferred shipping methods.

5.0V Custom Segment LCD Display 1/6 Duty 1/3 Bias Custom LCD Screen Manufacturer 5 5.0V Custom Segment LCD Display 1/6 Duty 1/3 Bias Custom LCD Screen Manufacturer 6
FAQ
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?

Answer: No problem. Please send us your specification/drawing. If unavailable, provide samples and we'll recommend suitable options or customize based on your requirements.

2. This LCD is what we want, but it's too large. Do you have smaller sizes? The display content needs minor changes.

Answer: For segment type LCD modules requiring size or content modifications, we'll create new tooling for a custom LCD glass module.

3. This LCD display is HTN type, but I want STN type. Can you make it?

Answer: Yes, we can modify the display type according to your request.

4. I want to customize a new LCD module. Can you do this?

Answer: Absolutely. Please send your drawing or provide specifications including outline size, display information, glass thickness, polarizer type, connector mode, temperature ranges, voltage, viewing direction, and drive conditions.

5. What is the lead time for tooling?

Answer: Typically 15-25 days after drawing confirmation and tooling payment. We'll provide exact timelines upon drawing approval.

6. Can you send samples for evaluation?

Answer: Yes, sample orders are available.

7. What is the lead time?

Answer: For standard products in stock, 1 day after payment. For special mass production, approximately 15-30 days. We'll notify you if we can complete earlier.

List of Existing COB LCD Modules
Model Content Module size W×H(mm) View area W×H(mm) Dot size W×H(mm) Character size W×H(mm) Driving Method Controller LSI or Equiv IC Package STN-TYPE FSTN-TYPE
8D-C0802A 8×2 84.0×44.0 63.0×25.0 1.15×1.36 6.07×11.56 1/16 S6A0069 COB Y Y
OUR SERVICES
  • Free repair within one year after shipment
  • Replacement within 30 days for product issues
  • Custom logo printing and model number labeling
  • Discounted shipping through our partner network
  • Professional technical support and after-sales service
  • All products inspected and tested before shipment
  • 24-hour response to customer inquiries
  • Custom LCD display manufacturing based on your specifications
