Home /Products/Custom Segment LCD Display/Customized TN LCD Segment LCD Display Transmissive White Backlight 4.5V 24PIN

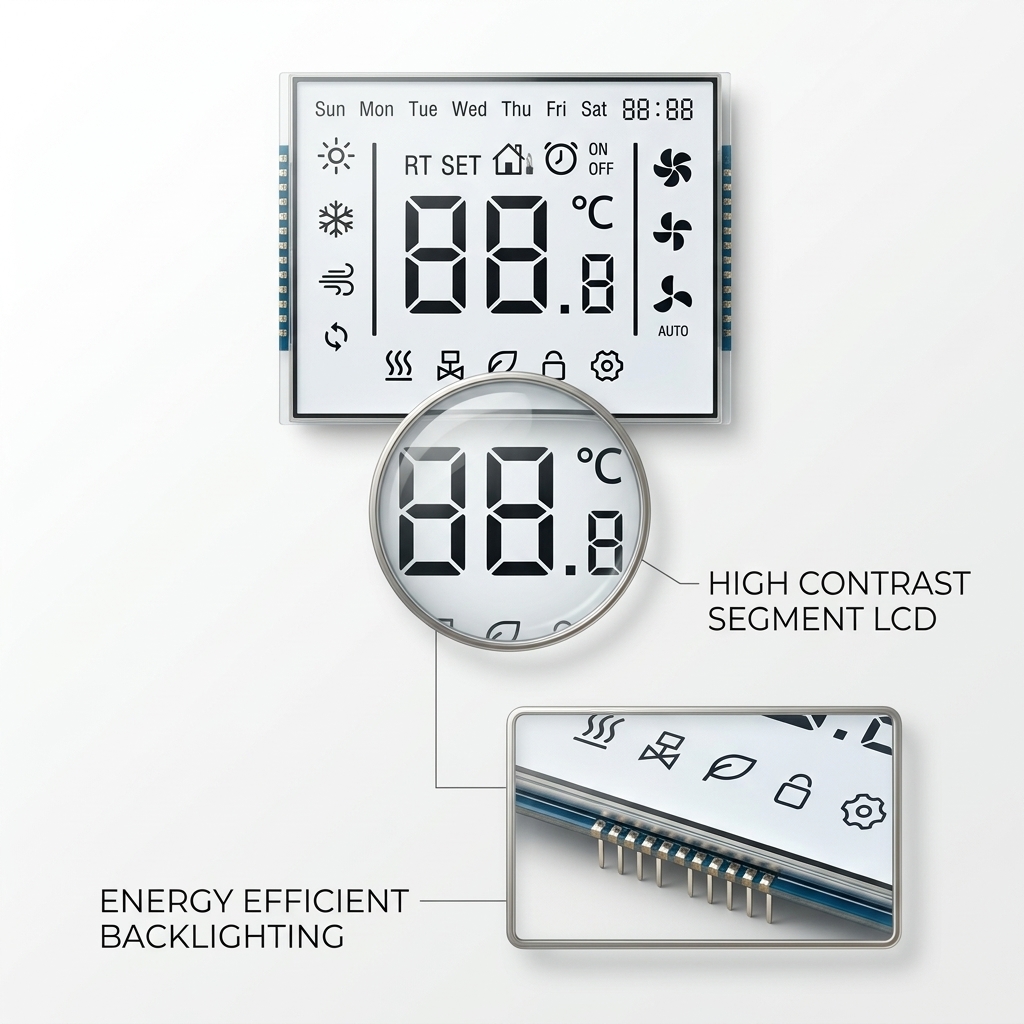

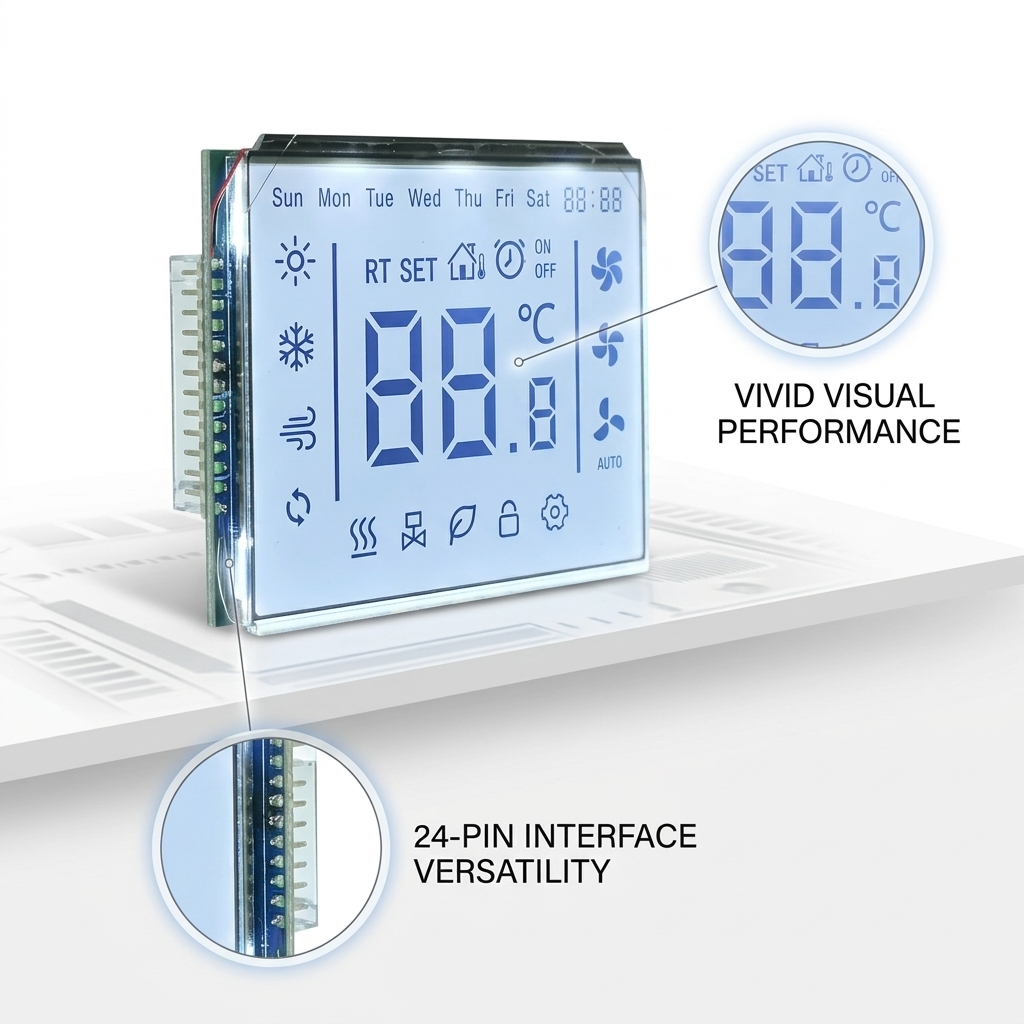

Customized TN LCD Segment LCD Display Transmissive White Backlight 4.5V 24PIN

1000
MOQ
DISCUSSABLE
Price
Customized TN LCD Segment LCD Display Transmissive White Backlight 4.5V 24PIN
Features Gallery Product Description Chat Now
Features
Specifications
Operate Temperature: 0~+50℃
Backlight Type: LED
Drive Method: 1/4 Duty, 1/3 Bias
Dimensions: Customizable
Storage Temperature: -10°C To 60°C
Working Voltage: 4.5V
Application: Industrial/Consumer Electronics
Display Type: Segment
Highlight:

Custom TN LCD segment display

,

Transmissive white backlight LCD

,

4.5V 24PIN segment LCD
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
Customized TN LCD Segment LCD Display Transmissive White Backlight 4.5V 24PIN
High-quality TN LCD segment display with transmissive white backlight, designed for low-power applications requiring clear visibility and reliable performance.
Detail Information
LCD Type: TN(Gray), Positive
Viewing Angle: 6 O'clock
Connector: PIN
Voltage: 4.5V
Drive Mode: 1/4 Duty, 1/3 Bias
Operating Temperature: 0~+50℃
Detailed Parameters
NO. ITEM SPECIFICATIONS
1 LCD Type TN positive, transmissive
2 Viewing Angle 12 O'clock
3 Drive Method 1/4 Duty, 1/3 Bias, 4.5V
4 Operating Temperature 0~+50℃
5 Storage Temperature -10~+60℃
6 Connector PIN, 24 numbers
7 Backlight White
8 Outline Dimension 77.6(W)* 60.0(H)* 2.0(T) mm
9 LCD View Area 70.5(W)* 56.0(H) mm
Customized TN LCD Segment LCD Display Transmissive White Backlight 4.5V 24PIN 0 Customized TN LCD Segment LCD Display Transmissive White Backlight 4.5V 24PIN 1
Why TN LCDs Are Chosen for These Products
  • Very Low Power Consumption (great for battery devices)
  • Simple Interface (static or multiplexed)
  • Inexpensive to Produce
  • Fast Response Times (compared to other passive types)
  • Customizable Segment Layouts
Main Product Applications of TN LCDs
  • Digital Watches
  • Calculators
  • Remote Controls
  • Thermometers / Hygrometers
  • Electronic Scales
  • Home Weather Stations
  • Pedometers / Fitness Devices
  • Electronic Toys

Customized TN LCD Segment LCD Display Transmissive White Backlight 4.5V 24PIN 2
