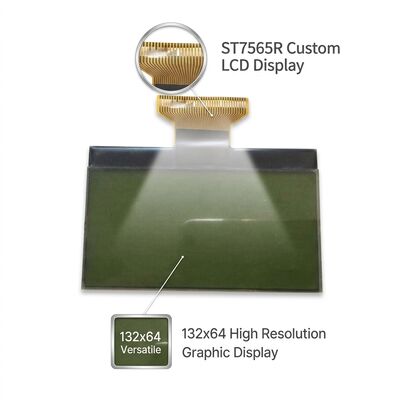

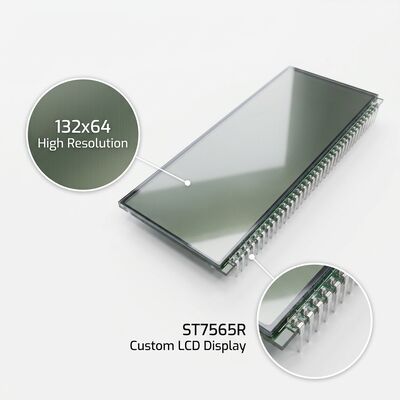

ST7565R Custom Segment LCD Display 3.0V 5V 132*64 DOTS Custom Shape LCD Screen
General Specification
| Display Format |
132*64DOTS |
| Power Supply |
3.0V |
| Display Type |
FSTN, POSITIVE, TRANSFLECTIVE |
| Viewing Direction |
6.00 O'clock |
| LCD Driving Method |
1/65 Duty, 1/9 Bias, 9.2V |
| Driver IC |
ST7565R |
| Input Data |
Parallel 6800 Series MPU Interface / Parallel 8080 Series MPU Interface / Serial 4-Line SPI Interface |
| Module Size (W*H*T) |
73.4*37.8/44.8 *2.85(MAX)mm |
| Viewing Area (W*H) |
67.50*34.40mm |
| Active Area (W*H) |
58.04*30.68mm |
| Dot Size (W*H) |
0.40*0.44 mm |
| Dot Pitch (W*H) |
0.44*0.48 mm |
Absolute Maximum Ratings
| Item |
Symbol |
MIN |
Max |
Unit |
| Supply Voltage |
VDD |
-0.3 |
3.6 |
V |
| VLCD |
|
-0.3 |
13.5 |
V |
| Operating temperature |
Topr |
-20 |
70 |
℃ |
| Storage temperature |
Tstr |
-30 |
80 |
℃ |
Packaging & Shipping
Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements, which may vary by country.
Shipping: Express via DHL, Fedex, EMS, UPS, air shipping, or sea shipping - any preferred method.
Payment Method:
Frequently Asked Questions
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
Answer: No problem. Please send us your specification/drawing or samples. We can recommend suitable standard products or customize based on your requirements.
2. This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
Answer: For segment type LCD modules, modifying outline size or display content requires a new LCD glass module with new tooling.
3. This LCD display is HTN type, but I want STN type, can you make?
Answer: Yes, we can change the display type according to your request.
4. I want to customize a new LCD module. Can you do?
Answer: Yes, we can. Please send your drawing or provide specifications including outline size, display information, glass thickness, polarizer, display type, connector mode, temperature ranges, supply voltage, viewing direction, and drive conditions.
5. What is lead time for tooling?
Answer: Typically 15 to 25 days after drawing confirmation and tooling charge payment. Exact time will be confirmed upon drawing approval.
6. Can you send us samples for checking?
Answer: Yes, sample orders are available.
7. What is the Lead Time?
Answer: For standard products in stock: 1 day after payment. For special mass production: 15-30 days. We'll inform you if we can finish earlier.
Product Application Fields
Audio products
Medical Equipment
Industrial products (water meters, electronic meters, equipment)
Automobiles
Sports Equipment
Watches
Household appliances (air conditioners, washing machines, electronic coolers, refrigerators, disinfection cabinets, wash bowl machines, calculators, electronic scales etc.)
Our Services
- Free repair within one year after shipment
- Replacement within 30 days for product-related issues
- Custom logo and model number printing available
- Discounted shipping rates through our partner companies
- Professional technical support and responsive after-sales service
- All products inspected and tested by engineers before shipment
- 24-hour response time for customer inquiries
- Custom LCD display solutions based on your specifications
