White Backlight Custom LCD Screen HTN Segmented 28PIN Energy Meter LCD Display

1000
MOQ
DISCUSSABLE
Price
White Backlight Custom LCD Screen HTN Segmented 28PIN Energy Meter LCD Display
Features Gallery Product Description Chat Now
Features
Specifications
Connection Way: PIN
Backlight: White
Display Color: Customizable
Operating Temperature: -20°C To 70°C
Display Size: Customizable
Display Type: Segment
Number Of Segments: CUSTOM
Segment Size: Customizable
Highlight:

White backlight HTN LCD display

,

28PIN energy meter LCD screen

,

Custom segmented LCD display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
White Backlight Custom LCD Screen HTN Segmented 28PIN Energy Meter LCD Display
Technical Specifications
LCD Type HTN Positive
Polarizer Type Transmissive
Viewing Angle 6 O'clock
Operating Temperature -30~+70℃
Working Voltage 3.2V
Connector PIN, 28 Numbers
Backlight White LEDs
Detailed Product Specifications
NO. ITEM SPECIFICATIONS
1 LCD Type HTN positive, Transmissive
2 Viewing Angle 6 O'clock
3 Drive Method 1/4 Duty, 1/3 Bias, VDD=3.2V
4 Operating Temperature -30~+70℃
5 Storage Temperature -30~+85℃
6 Connector PIN
7 PIN Pitch 2.54 mm
8 Backlight White LEDs
9 Driver IC /
10 Outline Dimension 61(W)* 29(H)* 2.8(T) mm
11 View Area 59(W)* 22(H) mm

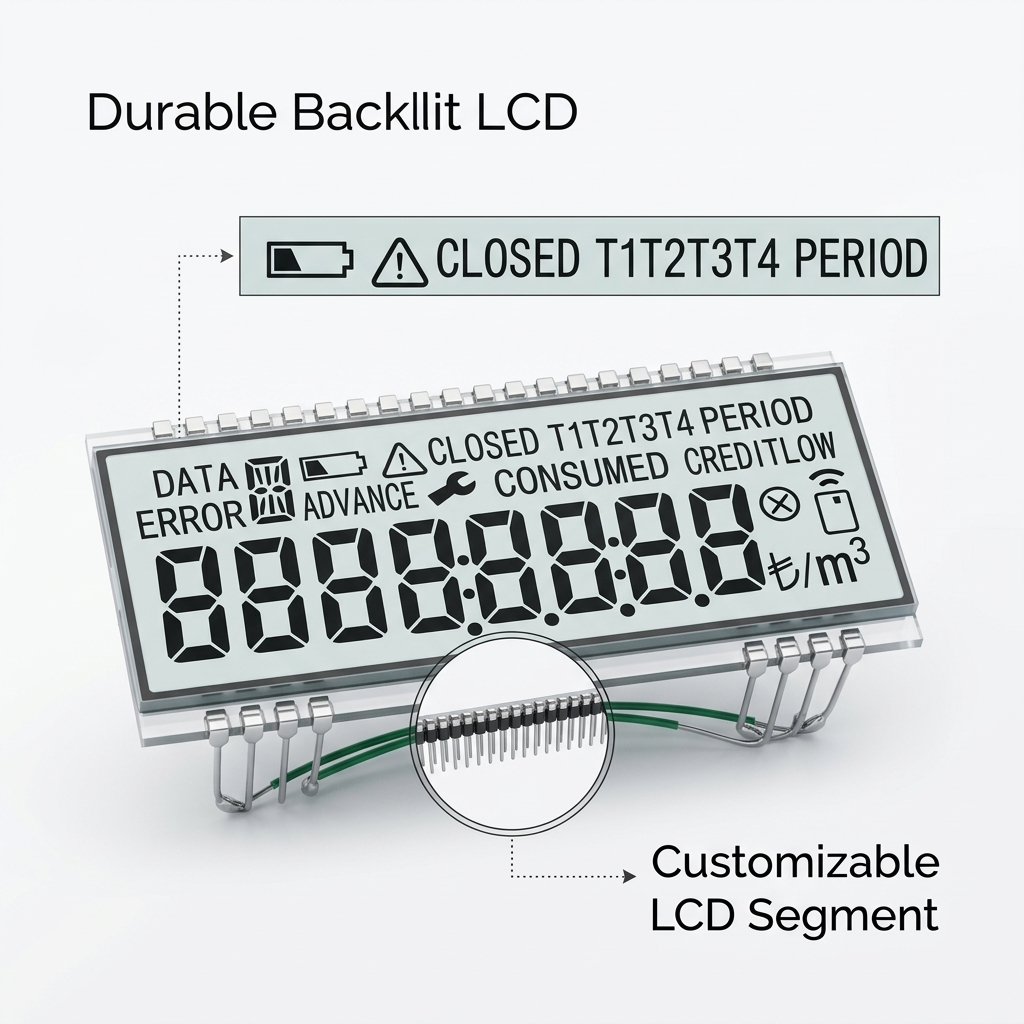

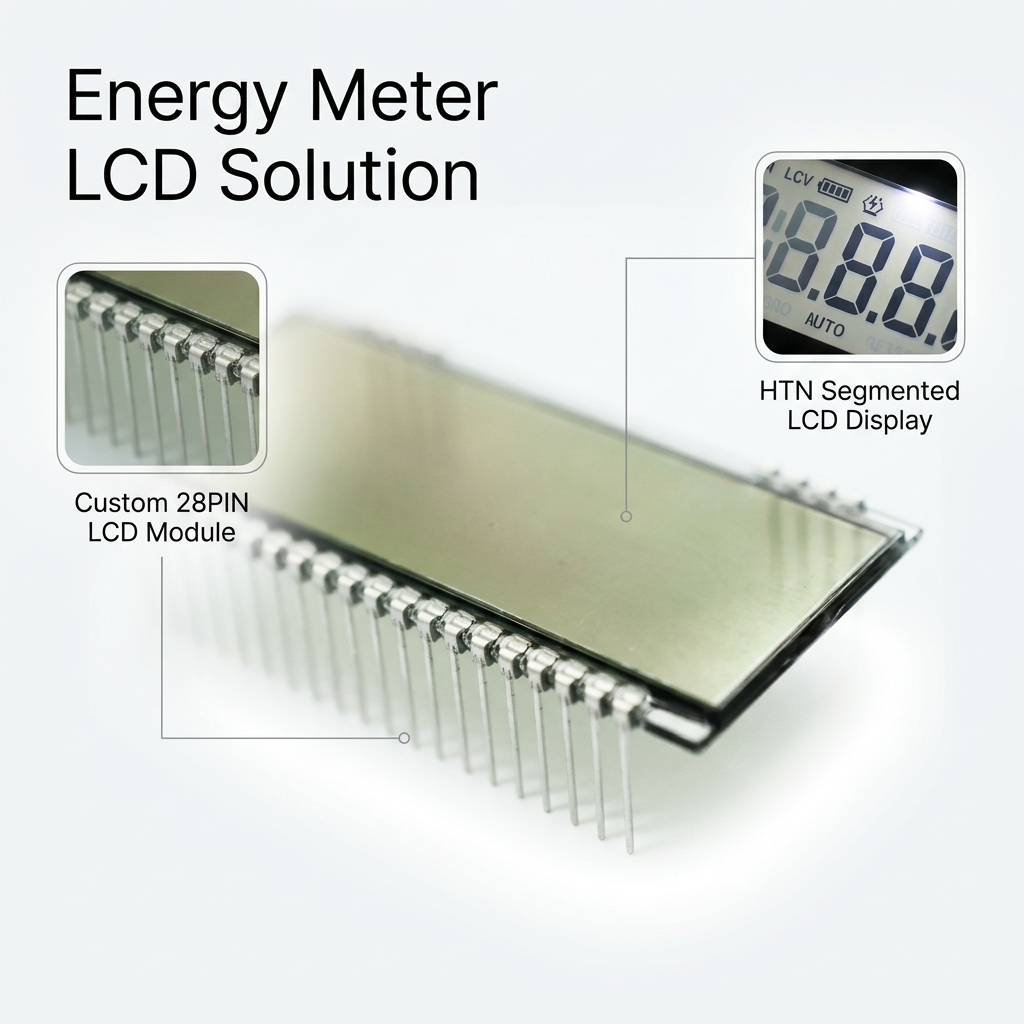

White Backlight Custom LCD Screen HTN Segmented 28PIN Energy Meter LCD Display 0 White Backlight Custom LCD Screen HTN Segmented 28PIN Energy Meter LCD Display 1
Product Features
  • HTN Technology: High Twisted Nematic LCD with improved viewing angle (±120°), enhanced contrast (30:1), and temperature resistance (-30°C to 80°C).
  • White Backlight: Provides clear visibility in low-light conditions with high-contrast black-on-white display.
  • Segmented Display: Designed for fixed content display in energy meters with simple numeric and symbolic output.
  • 28PIN Interface: Ensures stable connection and communication with energy meter control boards.
  • Customizable Design: Available in various sizes, layouts, and interface configurations to meet specific application requirements.

White Backlight Custom LCD Screen HTN Segmented 28PIN Energy Meter LCD Display 2
