Features

Specifications

Customization Options: Customizable

Display Mode: Custom

Operate Temperature: -20~+70℃

Connector: PIN, 30 Numbers

Lcd Type: STN Negative, Transmissive

Resolution: High

Segment Size: Customizable

Drive Method: 1/8 Duty, 1/4 Bias

Highlight:

custom STN segment LCD display

blue LCD screen for cleaning machine

30PIN LCD display with warranty

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

Custom Design LCD Display Screen STN Segment Blue 30PIN For Cleaning Machine

Product Description

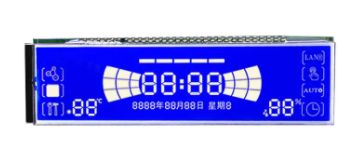

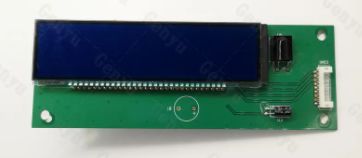

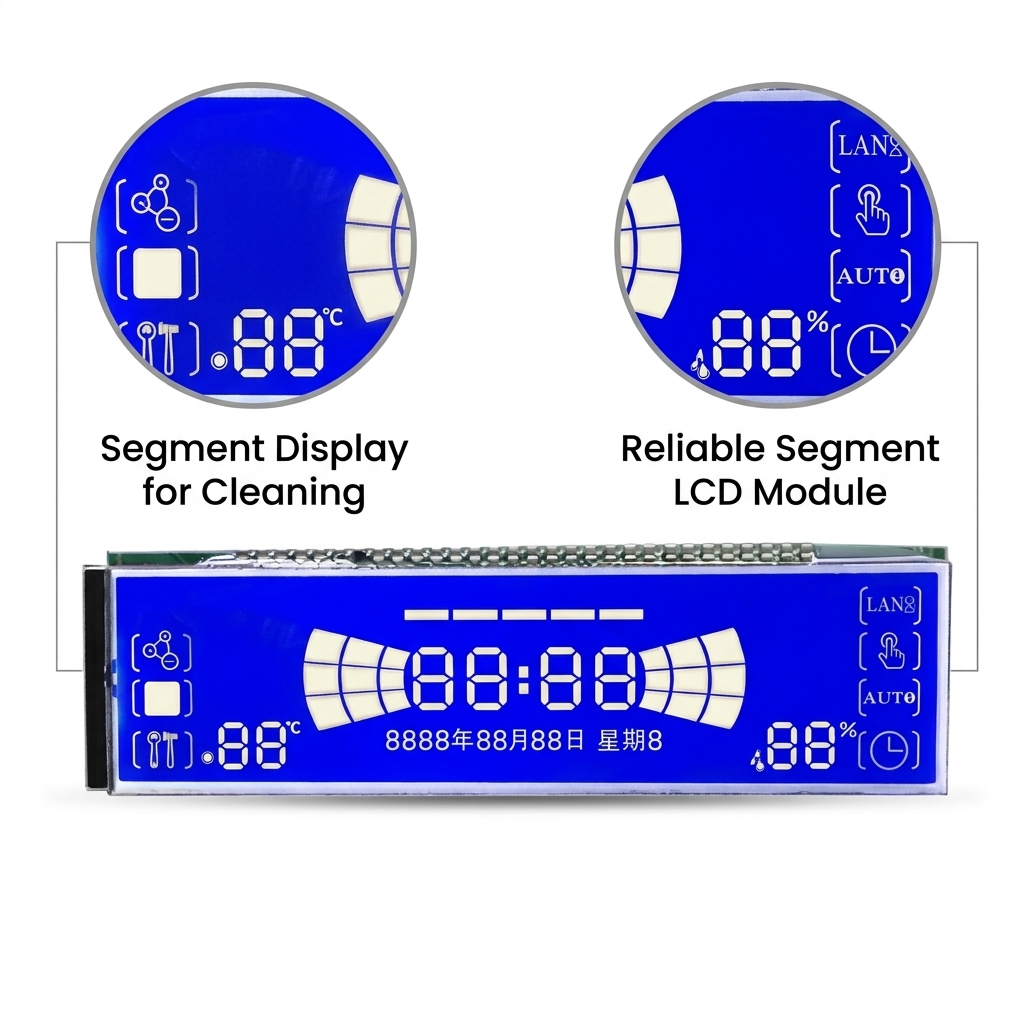

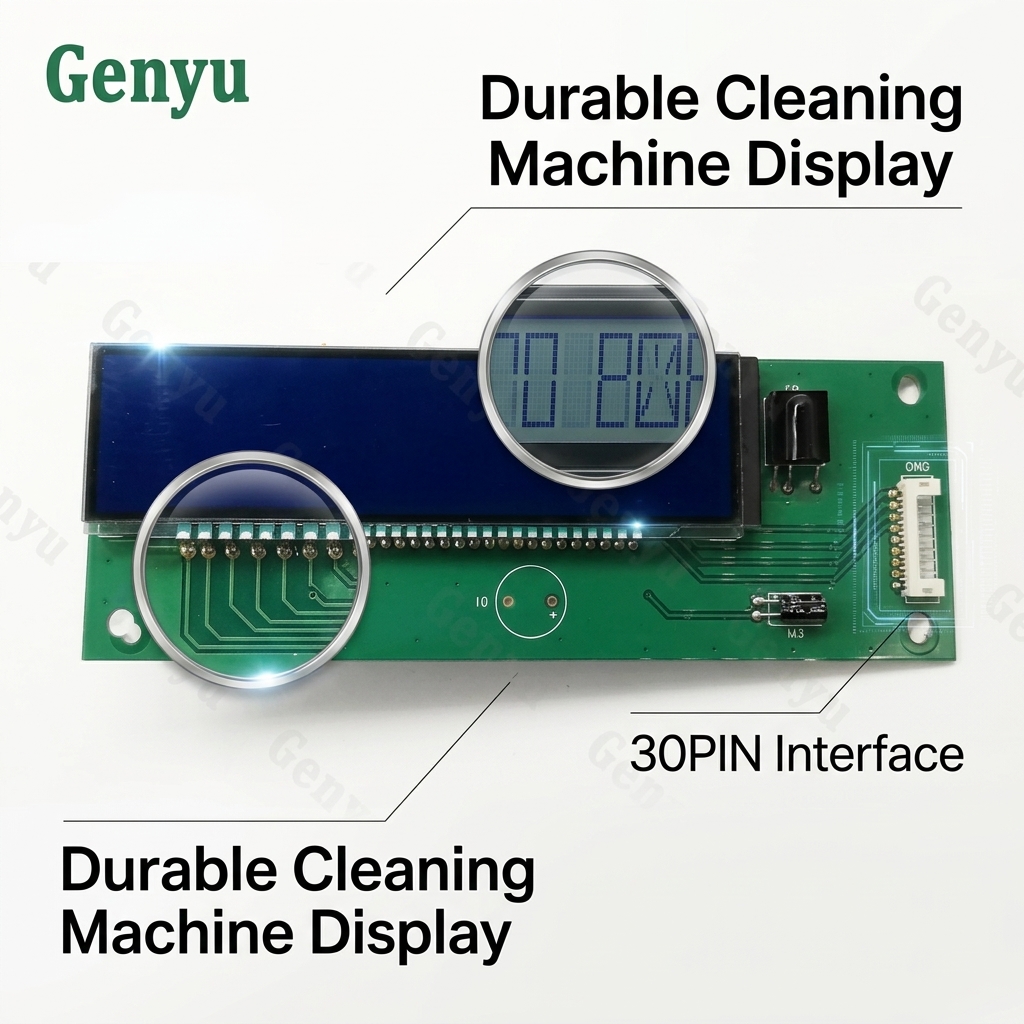

Custom Design LCD Display Screen STN Segment Blue 30PIN For Cleaning Machine

A Segment LCD (or Segmented LCD) is a type of LCD (Liquid Crystal Display) that uses a series of segments to form numbers, letters, or other characters.

Key Features:

Low Power Consumption
Simple Characters
Backlighting (optional)
High Visibility

Customization Supported, ODM/OEM Services. Including the sizes, interface, voltage, temperature, color, backlight, etc.

Detailed Specifications:

NO.	ITEM	SPECIFICATIONS
1	LCD Type	STN Negative, Transmissive
2	Viewing Angle	6 O'clock
3	Drive Method	1/8 Duty, 1/4 Bias, VOP=5.0V
4	Operating Temperature	-20~+70℃
5	Storage Temperature	-30~+80℃
6	Connector	PIN, 30 numbers
7	PIN Pitch	2.54 mm
8	Backlight	White LEDs
9	Driver IC	/
10	Outline Dimension	110(W)* 32(H)* 2.8(T) mm
11	View Area	107(W)* 27(H) mm

Applications:

The STN segment blue 30PIN liquid crystal display, with its low cost, moderate power consumption, clear display, and strong interface adaptability, is widely used in several fields:

Industrial Control and Instrumentations

Equipment control panels: operation panels of machine tools, injection molding machines, and assembly line equipment
Measurement instruments: multimeters, oscilloscopes, temperature and humidity meters, pressure gauges

Consumer Electronics and Small Appliances

Appliance displays: control panels of microwave ovens, ovens, washing machines, air conditioners
Small electronic devices: electronic scales, alarm clocks, coffee machines, humidifiers

Automotive Electronics and Vehicle Equipment

Vehicle auxiliary equipment: vehicle chargers, tire pressure monitors, dash cameras
Vehicle instrument accessories: air conditioning control screens, window adjustment panels

Medical and Health Equipment

Basic medical instruments: blood pressure monitors, blood glucose meters, blood oxygen monitors
Medical auxiliary equipment: infusion pumps, temperature control panels of thermometers

Smart Hardware and IoT Terminals

Low-power IoT devices: smart water meters, electricity meters, gas meters
Simple controllers: lighting controllers and window remote controls in smart home

Custom Design LCD Display Screen STN Segment Blue 30PIN For Cleaning Machine 2
