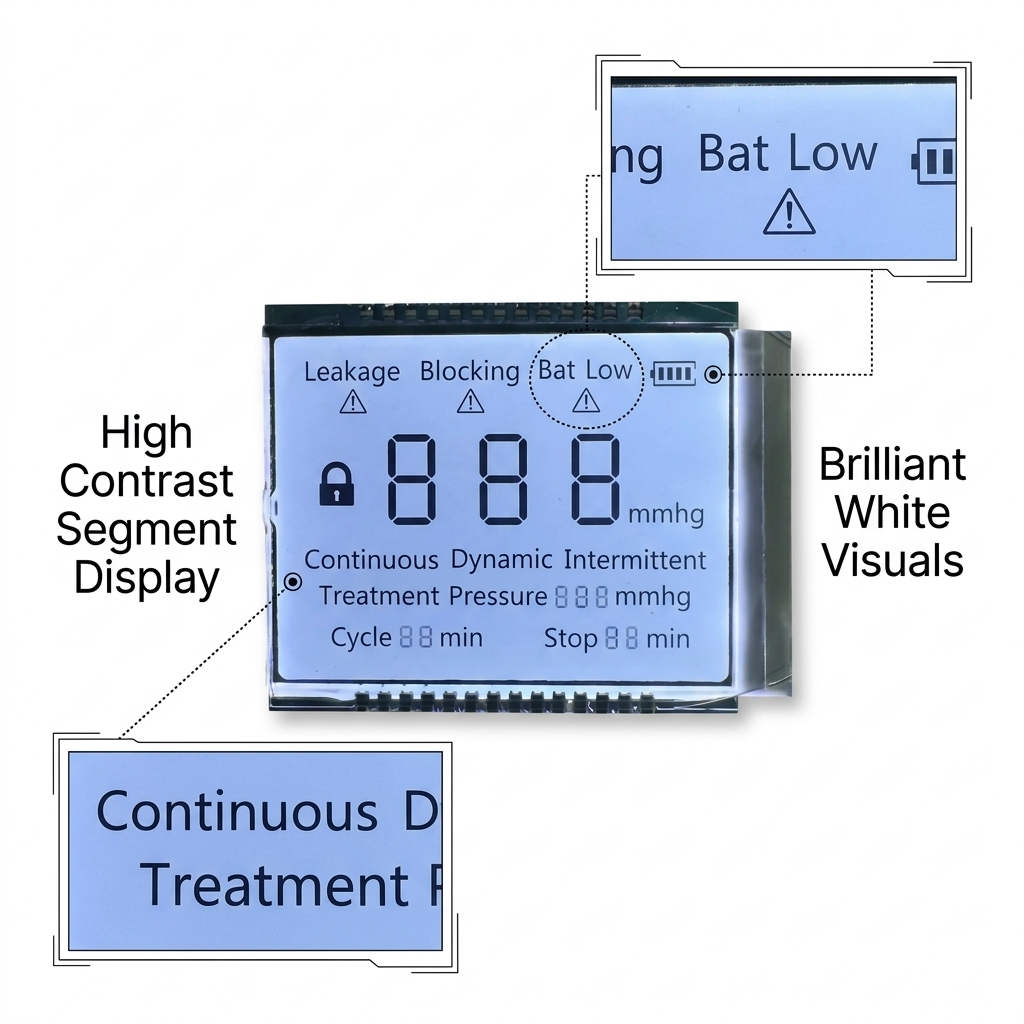

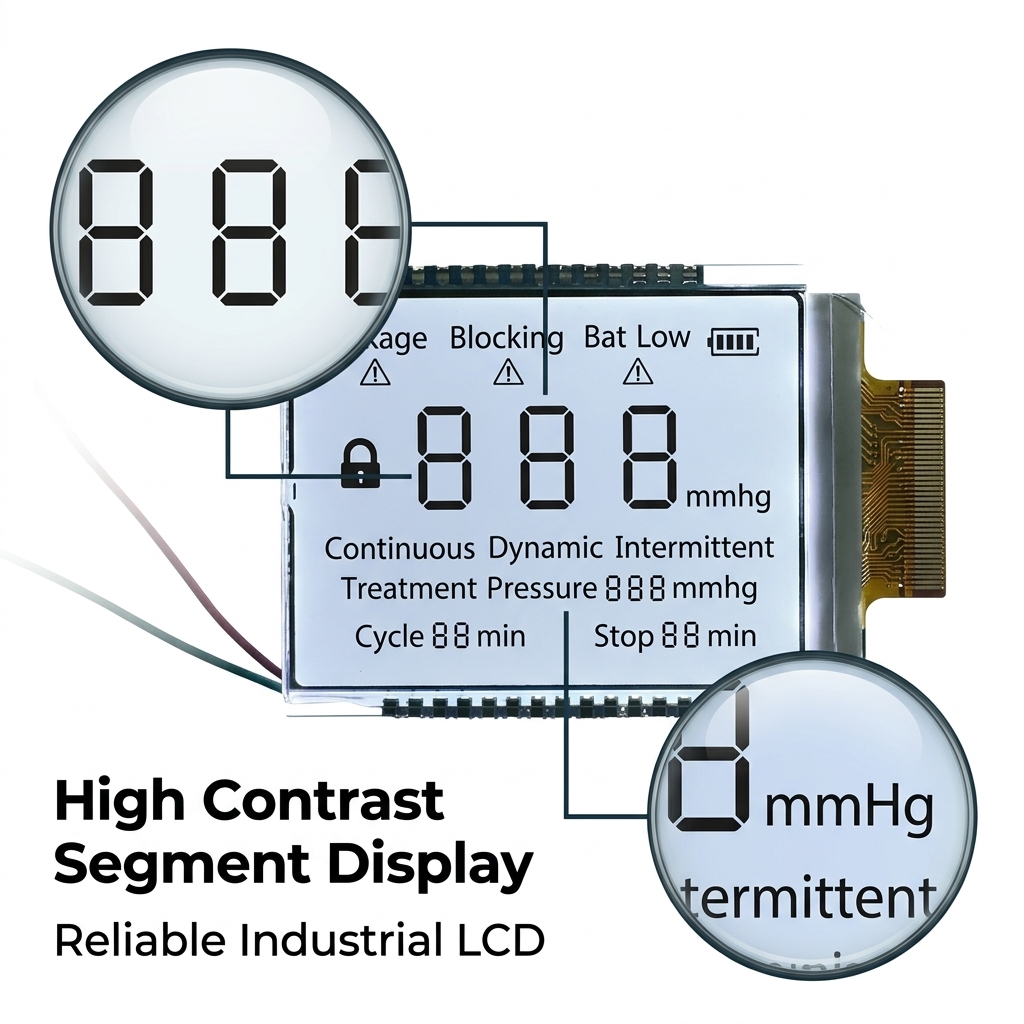

Monochrome White Custom Segment LCD Display HTN Positive 3.3V 27PIN

1000
MOQ
DISCUSSABLE
Price
Monochrome White Custom Segment LCD Display HTN Positive 3.3V 27PIN
Features Gallery Product Description Chat Now
Features
Specifications
Voltage: 3.0V
Segment Size: Customizable
Operate Temperature: 0~+50℃
Number Of Segments: CUSTOM
Lcd Type: HTN Positive, Transmissive
Display Size: Customizable
Drive Method: 1/4 Duty, 1/3 Bias
Interface Type: PIN, 27 Numbers
Highlight:

custom segment LCD display 3.3V

,

monochrome white HTN LCD

,

27PIN positive LCD display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
Monochrome White Custom Segment LCD Display HTN Positive 3.3V 27PIN
Product Description

Monochrome White custom Segment HTN Positive LCD Display 3.3V 27PIN

Detail Information
LCD Type: HTN(Gray), Positive
Viewing Angle: 12 O'clock
Operating Temperature: 0~+50℃
Connector: PIN, 27 Numbers
Voltage: 3.3V
What is HTN LCD?

HTN (High Twisted Nematic) is a variation of TN (Twisted Nematic) LCDs that offers:

  • Higher twist angle (about 110° to 160°, compared to 90° for TN)
  • Better viewing angles than standard TN
  • Lower cost than STN (Super Twisted Nematic)
  • Faster response time than STN
  • Common in segment LCDs, not dot-matrix or graphic LCDs
What does "Positive Mode" mean?

In positive mode LCDs:

  • Segments appear dark on a light background in transmissive or reflective displays.
  • Depending on the backlight and polarizer configuration, backlit displays often show light segments on a dark background.
  • Requires positive voltage bias to activate segments.
Detailed Parameters:
NO. ITEM SPECIFICATIONS
1 LCD Type HTN positive, transmissive
2 Viewing Angle 12 O'clock
3 Drive Method 1/4 Duty, 1/3 Bias, 3.0V
4 Operating Temperature 0~+50℃
5 Storage Temperature -10~+60℃
6 Connector PIN, 27 numbers
7 Outline Dimension 43(W)* 37(H)* 2.0(T) mm
8 LCD View Area 40(W)* 30(H) mm

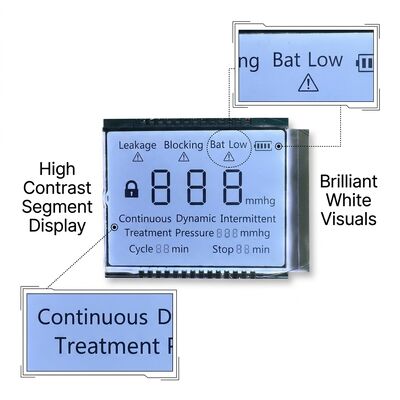

Monochrome White Custom Segment LCD Display HTN Positive 3.3V 27PIN 0

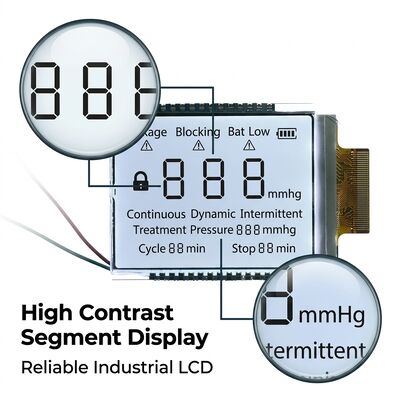

Monochrome White Custom Segment LCD Display HTN Positive 3.3V 27PIN 1
Monochrome White Custom Segment LCD Display HTN Positive 3.3V 27PIN 2
Monochrome White Custom Segment LCD Display HTN Positive 3.3V 27PIN 3
Monochrome White Custom Segment LCD Display HTN Positive 3.3V 27PIN 4
Monochrome White Custom Segment LCD Display HTN Positive 3.3V 27PIN 5
Monochrome White Custom Segment LCD Display HTN Positive 3.3V 27PIN 6
Monochrome White Custom Segment LCD Display HTN Positive 3.3V 27PIN 7

Monochrome White Custom Segment LCD Display HTN Positive 3.3V 27PIN 8
