Features

Specifications

Voltage: 3V

Storage Temperature: -40°C To 80°C

Number Of Segments: CUSTOM

Operating Temperature: -30°C To 70°C

Drive Mode: 1/8 Duty, 1/4 Bias

Display Size: Customizable

Display Mode: Custom

Customization Options: Customizable

Highlight:

TN positive reflective LCD display

black digits Monochrome LCD Display

Custom Segment Monochrome LCD Display

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

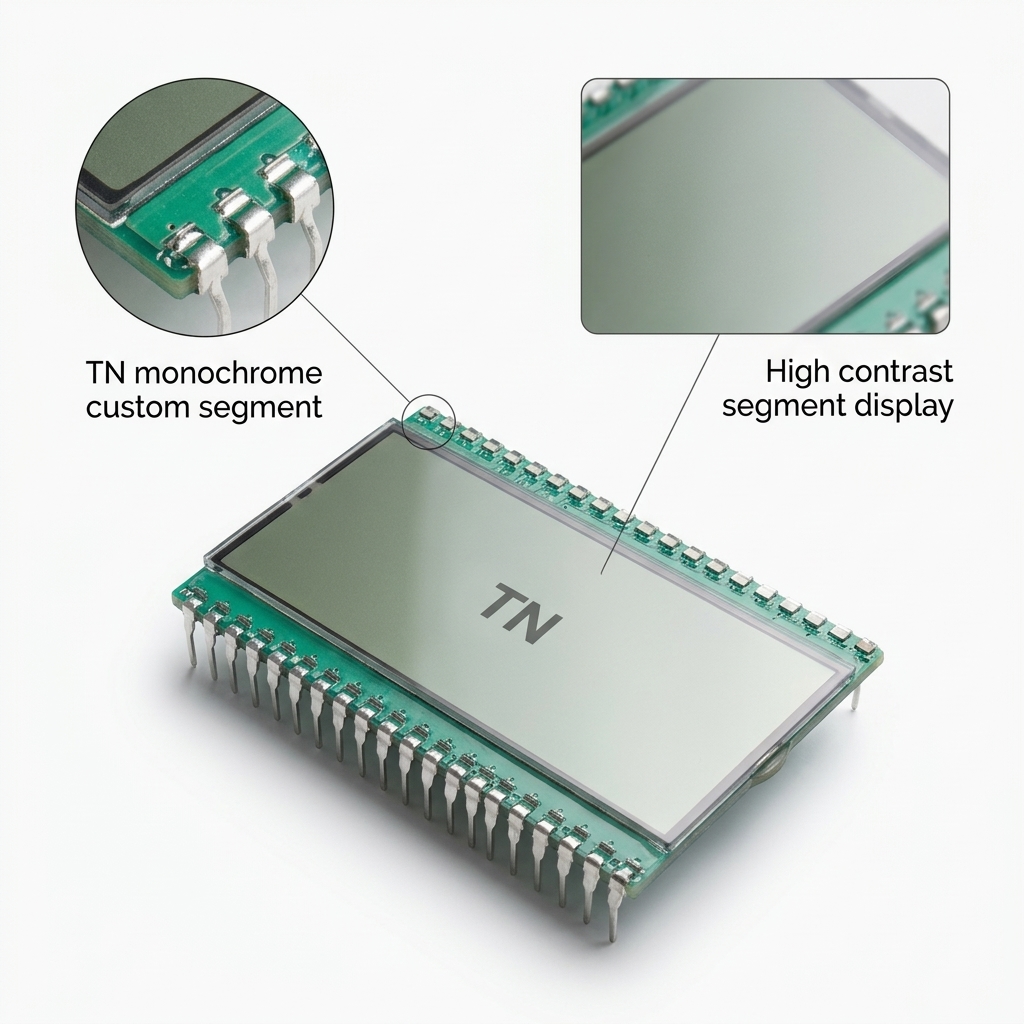

TN Positive Reflective Monochrome LCD Display Black Digits Custom Segment

Product Description

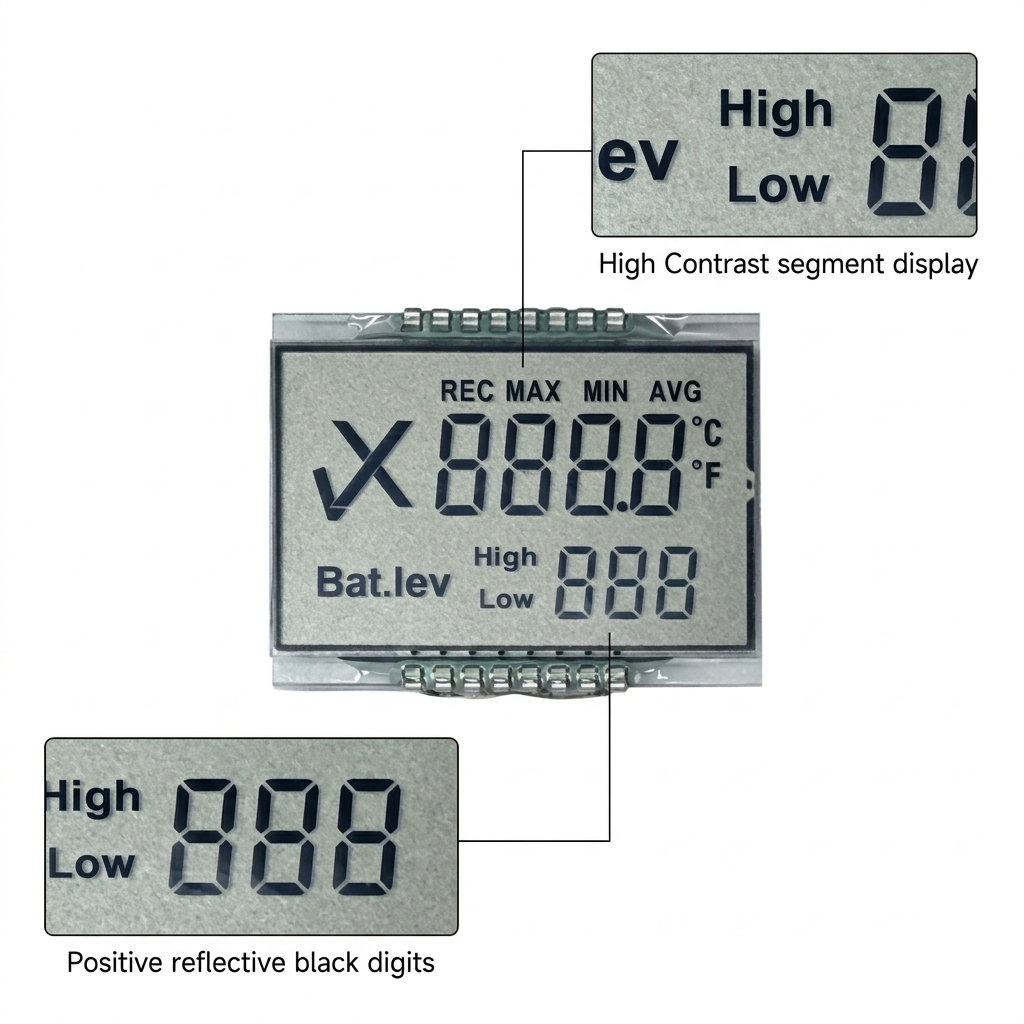

TN Positive Reflective Monochrome LCD Display Black Digits Custom Segment

TN Positive Reflective Monochrome Black Digits Custom Segment LCD Display

Detail Information

LCD Type:	TN, Positive
Viewing Angle:	6 O'clock
Operating Temperature:	-30~+70℃
Connector:	PIN, 16 Numbers
Voltage:	3.0V

Product Description

A TN reflective LCD is a Twisted Nematic display that uses a reflective layer instead of a backlight, making it highly power-efficient and sunlight-readable. These displays work best in bright environments, using ambient light to make the screen visible.

Detailed Parameters:

NO.	ITEM	SPECIFICATIONS
1	Model Number	BBI256T
2	LCD Type	TN positive, reflective
3	Viewing Angle	6 O'clock
4	Drive Method	1/8 Duty, 1/4 Bias, 3.0V
5	Operating Temperature	-30~+70℃
6	Storage Temperature	-40~+80℃
7	Connector	PIN, 16 numbers
8	LED Backlight	Without
9	Outline Dimension	34.0(W)* 26.0(H)* 2.8(T) mm
10	LCD View Area	31(W)* 19(H) mm
