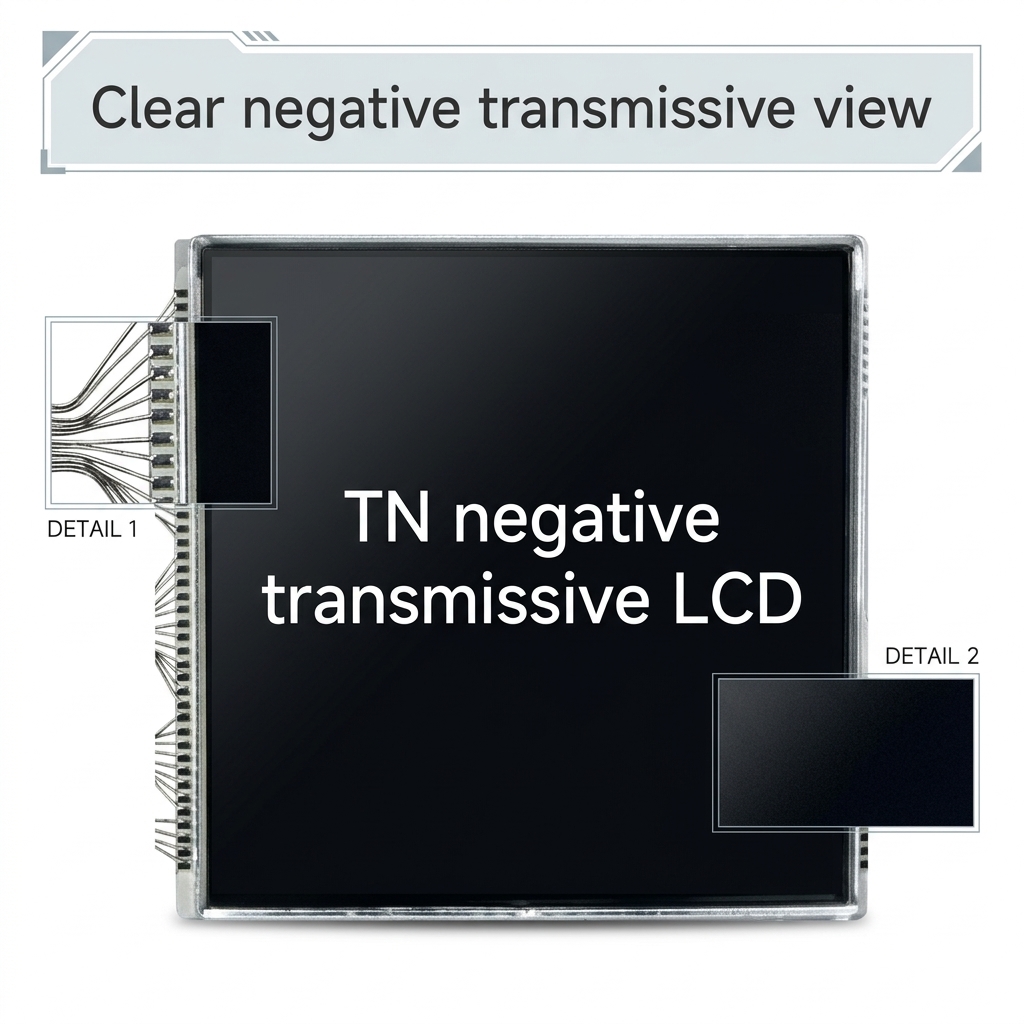

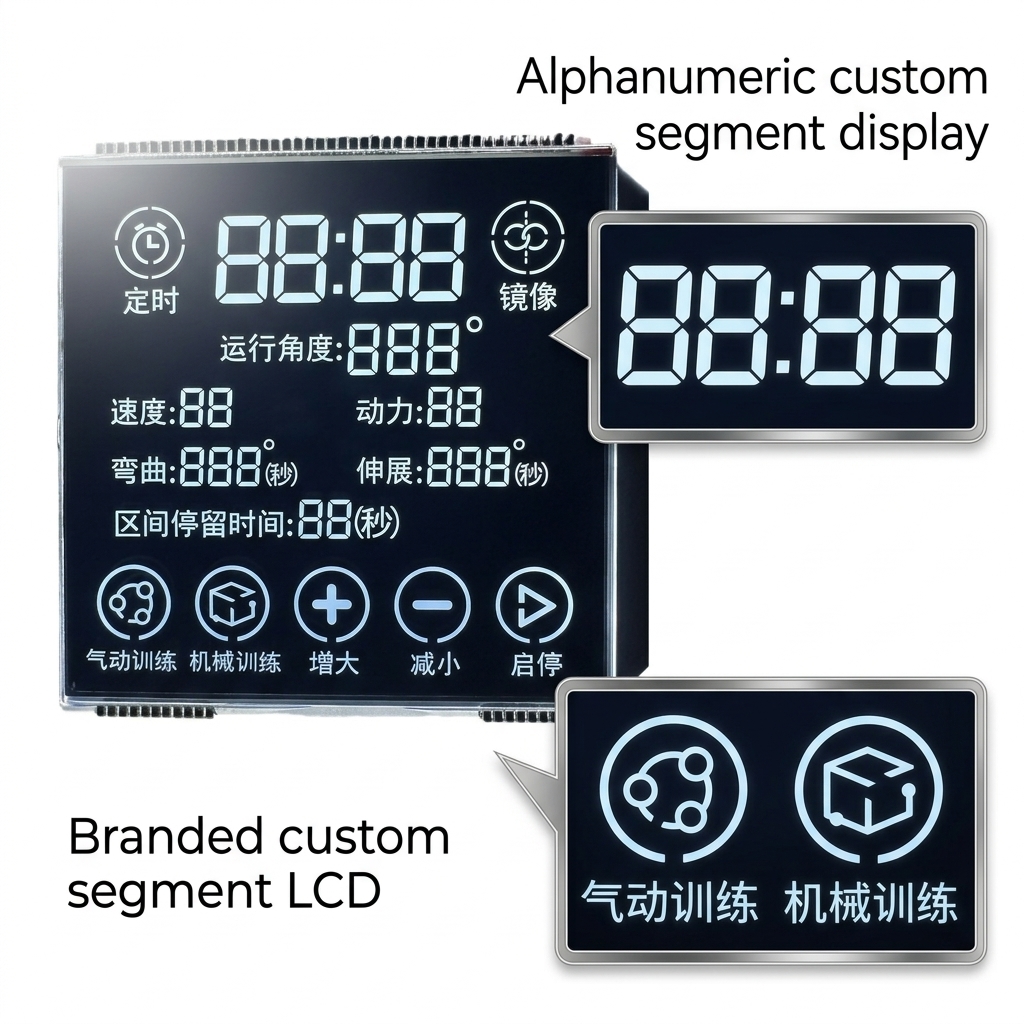

VATN Alphanumeric Custom Segment LCD Display TN / Negative / Transmissive
VATN Alphanumeric Custom Segment LCD Display TN, Negative, Transmissive
Product Specifications
| Display Mode: |
VATN Segment LCD |
Driving Condition: |
1/4Duty, 1/2Bias, 5.0V |
| Glass: |
TN, Negative, Transmissive |
Optics: |
6:00 Viewing Direction |
| Backlight: |
Customizable |
Operating Temp: |
-30°C To +80°C |
| Pin Number: |
36 Pins |
Surface Printing: |
None (Customizable) |
| Connector: |
Metal Pin |
Compliance: |
ISO9001 & RoHS |
Packaging & Shipping
Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements. Different countries may have specific requirements.
Shipping: Express options include DHL, Fedex, EMS, UPS. Also available: air shipping, sea shipping. Any shipping method can be arranged.
Payment Method: Various payment options available.
Frequently Asked Questions
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
Answer: No problem. Please send us your specification/drawing. If you don't have specifications, you can provide samples; we'll recommend suitable standard products or customize based on your requirements.
2. This LCD is what we want, but it's too big. Do you have smaller size? The display content needs minor changes.
Answer: For segment type LCD modules, modifying outline size or display content requires a new LCD glass module with new tooling.
3. This LCD display is HTN type, but I want STN type. Can you make?
Answer: Yes, we can change to STN type per your request.
4. I want to customize a new LCD module. Can you do?
Answer: Yes. Please send your drawing. If unavailable, provide outline size and display information (glass thickness, polarizer, display type, connector mode, storage/operating temp, supply voltage, viewing direction, drive condition).
5. What is the lead time for tooling?
Answer: Typically 15-25 days after drawing confirmation and tooling payment. Exact time will be confirmed upon drawing approval.
6. Can you send samples for checking?
Answer: Yes, sample orders are available.
7. What is the lead time?
Answer: For standard products in stock: 1 day after payment. For special mass production: 15-30 days. We'll inform you if we can finish earlier.
Our Services
- Free repair within one year after shipment
- Replacement within 30 days for product-related issues
- Custom logo and model number printing available
- Discounted shipping rates through long-term partnerships
- Professional technical support and responsive after-sales service
- All products inspected and tested by engineers before shipment
- 24-hour response time for inquiries
- Custom LCD displays based on your specifications or drawings
Product Applications
- Household appliances: Refrigerators, air conditioners, fans, heaters, water heaters, electric blankets, air purifiers, washing machines, dryers, vacuum cleaners, microwave ovens, cookers, rice cookers, etc.
- Communication equipment: Telephones, interphones, fax machines, wireless wifi devices
- Automotive electronics: On-board entertainment systems, car audio, navigation systems, reverse radar, cameras, anti-theft devices
- Instruments: Water meters, electric meters, multimeters, electronic scales, pressure/temperature/flow meters, display instruments
- Fitness equipment: Treadmills, exercise bikes, training devices, pedometers, electronic scales
- Financial equipment: Tax control cash machines, POS systems, banknote counters
- Consumer electronics: MP3/MP4 players, DVDs, electronic dictionaries, e-readers, learning machines, electronic clocks, calculators
Features: High resolution, high definition, high brightness, cost-effective, energy efficient, wide temperature range (-30°C to +80°C), positive/negative display options.
Production Line
- Clean Room class 10k@0.8um, Pressure 0.8kgf
- Antistatic floor, resistance: 1x10 ohm to 1x10 ohm
- COG production lines: 4
- Backlight production lines: 2
- Monthly capacity: 1 million units
In compliance with ISO9001 Quality Management
One year guarantee for non-artificial damage
- Small LCD display screens
- Competitive pricing
- Large production capacity
- Certifications: ISO, RoHS
- Custom dimensions available
- STN blue small LCD display screens
