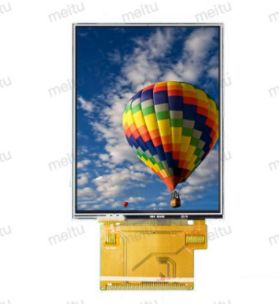

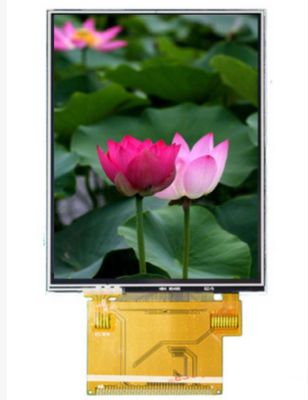

2.8 Inch LCD Touch Screen Module with 240x320 Dots Matrix 65K Colors

1000
MOQ
DISCUSSABLE
Price
2.8 Inch LCD Touch Screen Module with 240x320 Dots Matrix 65K Colors
Features Gallery Product Description Chat Now
Features
Specifications
Colors: 65K
Viewing: 6:00
Backlight Color: White
Visible Area Size: 43.2mm×57.6mm
Outline Size: 50 Mm * 69.20 Mm * 2.30 Mm
Bcaklight: 4 Pcs White LED
Highlight:

2.8 Inch LCD Screen Module

,

240x320 Dots Matrix LCD Module

,

65K LCD Touch Screen Module
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
2.8 Inch LCD Touch Screen Module with 240x320 Dots Matrix 65K Colors
High-quality 2.8-inch TFT LCD display module with touch screen capability, featuring 240×320 resolution and SPI interface.
Product Specifications
Parameter Value
Resolution 240 × 320
Size 2.8 Inch
Viewing Direction 6 O'Clock
TFT Mode TFT, Transmissive
Outline Size 50 × 69.20 × 2.3 mm
Brightness 280 Cd/M2
Technical Details
Item Contents Description
1 Product Name 2.8 Inch TFT 240RGB × 320 LCD Module
2 Module Size 50 mm × 69.20 mm × 2.30 mm T
3 Resolution 240 × 320
4 Interface SPI
5 Touch-Panel Type RESISTIVE or WITHOUT, CAPACITIVE
6 Interface Type 16 Bit MCU
7 Colors 65K
8 Controller/Driver ST7789V
9 Light Source 4 White LEDs in Parallel
Structure Diagram
2.8 Inch LCD Touch Screen Module with 240x320 Dots Matrix 65K Colors 0
2.8 Inch LCD Touch Screen Module with 240x320 Dots Matrix 65K Colors 1
2.8 Inch LCD Touch Screen Module with 240x320 Dots Matrix 65K Colors 2
2.8 Inch LCD Touch Screen Module with 240x320 Dots Matrix 65K Colors 3
Application Fields
  • Consumer Electronics: MP4 players, digital cameras, portable game consoles - providing excellent visual experiences and convenient touch operations.
  • Industrial Control: Display interface for industrial instruments and control panels, showing real-time equipment status and parameters with high reliability.
  • Vehicle Electronics: Navigation devices, driving recorders - offering clear route guidance and vehicle information with touch operation convenience.
  • Medical Equipment: ECG machines, blood pressure monitors - helping medical staff quickly access patient information to improve diagnosis efficiency.
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
Answer: No problem. Please send us your specification/drawing paper. If you don't have specifications, you can provide samples; we'll recommend suitable standard products or customize based on your requirements.
This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
Answer: For segment type LCD modules, modifying outline size or display content requires a new LCD glass module with new tooling.
This LCD display is HTN type, but I want STN type, can you make?
Answer: Yes, we can change the display type according to your request.
I want to customize a new LCD module. Can you do?
Answer: Yes, we can. Please send your drawing paper or provide details including outline size, display information (glass thickness, polarizer, display type, connector mode, storage/operating temperature, supply voltage, viewing direction, drive condition).
What is lead time for tooling?
Answer: Typically 15 to 25 days after drawing confirmation and tooling charge payment. We'll provide exact timing upon drawing confirmation.
Can you send us samples for checking?
Answer: Yes, sample orders are available.
What is the Lead Time?
Answer: For standard products in stock, lead time is one day after payment. For mass production of special orders, lead time is about 15-30 days. We'll inform you if we can finish earlier.

2.8 Inch LCD Touch Screen Module with 240x320 Dots Matrix 65K Colors 4
