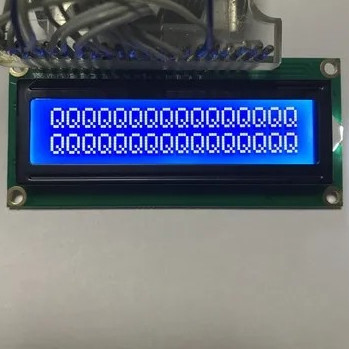

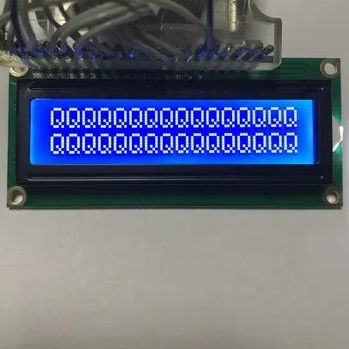

7 Inch 16x2 LCD Display Module Character 1602 STN Blue Background White Backlight
This 7-inch 16x2 LCD display module features an STN blue background with white backlight, ideal for various industrial and commercial applications.
Product Specifications
- Display Type: STN/BLUE, Negative, Transmissive
- Display Mode: 16 characters x 2 lines
- Backlight Type: White LEDs, Side
- Driving Method: 1/16 Duty, 1/5 Bias, 3.3V
- Interface: 4-bits or 8-bits interface
- Viewing Angle: 6 O'clock
Technical Details
| Structure |
LCD + IC + ZEBRA + BL + PCB |
| PCB Size |
80(L)*36(W)*11(D) mm |
| Viewing Area |
66(W)*17(H) mm |
| Active Area |
56.21(W)*11.5(H) mm |
| Dot Size |
0.56(W)*0.56(H) mm |
| Operating Temperature |
-20~+70 °C |
| Storage Temperature |
-30~+80 °C |
Packaging & Shipping
Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements, varying by country regulations.
Shipping: Available via DHL, Fedex, EMS, UPS, air shipping, or sea shipping - whichever method you prefer.
Payment Method: Various payment options available.
Frequently Asked Questions
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
No problem. Please send us your specification/drawing. If unavailable, we can recommend suitable standard products or customize based on your requirements.
2. This LCD is what we want, but it's too large. Do you have smaller sizes?
For segment type LCD modules requiring size or content modifications, we can create new LCD glass modules with custom tooling.
3. This LCD display is HTN type, but I want STN type. Can you make it?
Yes, we can modify the display type according to your request.
4. I want to customize a new LCD module. Can you do this?
Yes. Please provide your drawing or specifications including outline size, display information, glass thickness, polarizer type, connector mode, temperature ranges, and drive conditions.
5. What is the lead time for tooling?
Typically 15-25 days after drawing confirmation and tooling payment. Exact timing will be confirmed upon drawing approval.
6. Can you send samples for checking?
Yes, sample orders are available.
7. What is the lead time?
For standard products in stock: 1 day after payment. For special mass production: 15-30 days (we'll inform you if completed earlier).
Our Services
- Free repair within one year after shipment
- Replacement within 30 days for product-related issues
- Custom logo and model number printing available
- Discounted shipping rates through our partner carriers
- Professional technical support and after-sales service
- All products inspected and tested before shipment
- 24-hour response time for customer inquiries
- Custom LCD display solutions based on your specifications
Character/Graphic Type LCD Modules List
| Model |
Content (W X H) |
Module Size W x H(mm) |
View Area W x H(mm) |
Dot Size W x H(mm) |
Dot Pitch W x H(mm) |
Driving Method |
Controller LSI or Equiv |
IC Package |
STN-TYPE |
FSTN-TYPE |
| 8D -C2004A |
20X4 |
98.0X60.0 |
76.0X25.2 |
0.55X0.55 |
2.95X4.75 |
1/16 |
S6A0069 |
COB |
Y |
Y |
