Home /Products/LCD Display Module/Transmissive LCD Display Module 4.3 Inch TFT CH430WQ15A-CTB

Transmissive LCD Display Module 4.3 Inch TFT CH430WQ15A-CTB

1000
MOQ
DISCUSSABLE
Price
Transmissive LCD Display Module 4.3 Inch TFT CH430WQ15A-CTB
Features Gallery Product Description Chat Now
Features
Specifications
Operating Voltage: 3.3V
Tft Active Area: 95.04(W)*53.856(H)mm
Operating Temperature: -20°C To 70°C
Luminace: 300cd/m2
Module Size: 105.5(W)*67.2(H)*4.95(T)mm
Display Mode: IPS/Transmissive/Normally Black
Name: LCD Display Module
Highlight:

Transmissive LCD Display Module

,

LCD Display Module 4.3 Inch

,

Transmissive LCD Display 4.3 Inch
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
Transmissive LCD Display Module 4.3 Inch TFT CH430WQ15A-CTB
Product Overview

The Transmissive LCD Display Module 4.3 Inch TFT CH430WQ15A-CTB is a high-quality display solution featuring IPS technology with transmissive display mode and normally black operation.

Technical Specifications
Size 4.3 Inch Dot Arrangement 480*3(RGB)*272
Display Mode IPS / Transmissive / Normally Black Module Size 105.5(W)*67.2(H)*4.95(T)mm
TFT Active Area 95.04(W)*53.856(H)mm Luminance 300cd/m2
Interface SPI
Key Features
  • 4.3-inch IPS TFT LCD module with touch screen capability
  • ROHS compliant design
  • Compact module size: 105.5mm × 67.2mm × 4.95mm
  • High brightness: 300cd/m²
  • SPI interface for easy integration
  • Available in sizes ranging from 0.96" to 10.1"
  • Custom touch solutions available (resistive or capacitive)
  • Brightness options from 250 to 1000 nits for various environments
Product Images

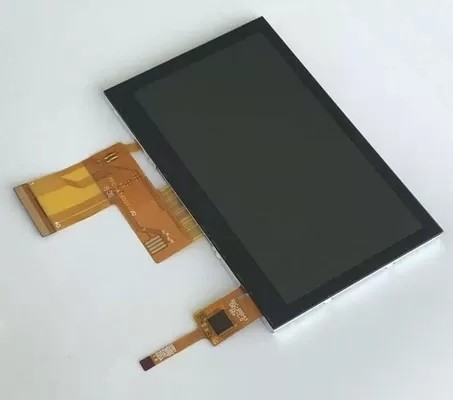

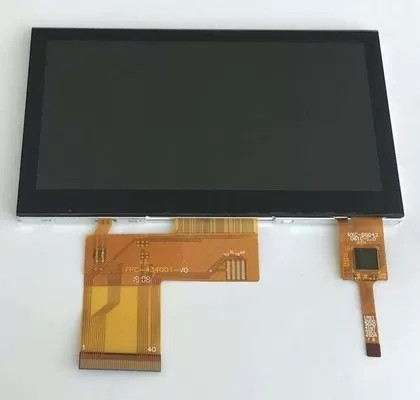

Transmissive LCD Display Module 4.3 Inch TFT CH430WQ15A-CTB 0 Transmissive LCD Display Module 4.3 Inch TFT CH430WQ15A-CTB 1
Packaging & Shipping
Packaging Options

Carton boxes, cupboard, EPE, blister tray. Packaging method depends on product size and customer requirements, with consideration for different country regulations.

Transmissive LCD Display Module 4.3 Inch TFT CH430WQ15A-CTB 2
Shipping Methods

Available shipping options include DHL, FedEx, EMS, UPS, air shipping, and sea shipping. Customers may choose their preferred method.

Transmissive LCD Display Module 4.3 Inch TFT CH430WQ15A-CTB 3
Payment Methods
Transmissive LCD Display Module 4.3 Inch TFT CH430WQ15A-CTB 4
Frequently Asked Questions
1. I want an LCD display with 8 digits and outline size of 65x30x2.8mm. Is this possible?

Yes. Please send us your specifications or drawings. If you don't have specifications, you can send samples and we'll recommend suitable products or customize based on your requirements.

2. Can you provide a smaller size version of this LCD with modified display content?

For segment type LCD modules requiring size or content modifications, we would need to create new tooling for a custom LCD glass module.

3. Can you produce this display in STN type instead of HTN?

Yes, we can modify the display type according to your requirements.

4. Do you offer custom LCD module development?

Yes. Please provide your drawings or specifications including outline size, display information, glass thickness, polarizer type, display type, connector mode, temperature requirements, supply voltage, viewing direction, and drive conditions.

5. What is the lead time for tooling?

Typically 15-25 days after drawing confirmation and tooling payment. Exact timing will be confirmed upon drawing approval.

6. Can you provide samples for evaluation?

Yes, sample orders are available.

7. What is the production lead time?

For standard products in stock: 1 day after payment. For special mass production: approximately 15-30 days. We will inform you if we can complete earlier.

Our Services
  • Free repair within one year of shipment
  • Replacement within 30 days for product-related issues
  • Custom logo printing and model number labeling
  • Competitive shipping rates through our partner network
  • Professional technical support and responsive after-sales service
  • Rigorous quality control with pre-shipment inspection
  • 24-hour response time for customer inquiries
  • Custom LCD display solutions based on your specifications
Product Applications
Household Appliances
  • Refrigerators, air conditioners, fans
  • Water heaters, electric blankets, heaters
  • Washing machines, clothes dryers, vacuum cleaners
  • Microwave ovens, cookers, rice cookers
Communication Equipment
  • Telephones, interphones, fax machines
  • Wireless WiFi devices
Automotive Electronics
  • On-board entertainment systems
  • Navigation systems, car audio
  • Reverse radar systems, cameras
Instruments
  • Water meters, electric meters
  • Pressure meters, temperature meters
  • Analytical instruments, optical instruments
Fitness Equipment
  • Treadmills, exercise bikes
  • Electronic scales, sphygmomanometers
Financial Equipment
  • POS machines, cheque printers
  • Banknote counting machines
Consumer Electronics
  • MP3/MP4 players, DVD players
  • Electronic dictionaries, calculators
  • Electronic clocks, chronographs
