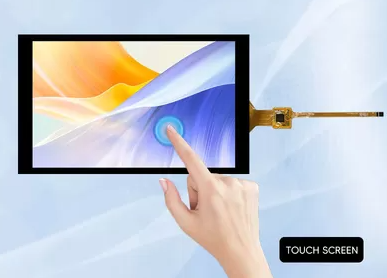

7-Inch TFT Display Module 900 nits High Brightness Normally Black

1000
MOQ
DISCUSSABLE
Price
7-Inch TFT Display Module 900 nits High Brightness Normally Black
Features Gallery Product Description Chat Now
Features
Specifications
Viewing Direction: Full
Active Display Area: 94.2(H) * 150.72(V)
Operating Temperature: -20+70
Original Place: CHINA
Pin Count: 40 Pin
Type: TFT
Highlight:

7-inch TFT display module

,

high brightness TFT display

,

normally black LCD module
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
7-Inch TFT Display Module 900 nits High Brightness Normally Black
Product Specifications
LCD Type Normally Black
Active Area 94.2(H) × 150.72(V) mm
Mechanical Outline Size (W×H×T) 104.5(W) × 171.5(H) × 4.43(T) mm
Drive Element TFT Active Matrix
Size 7 inch
Lumens Degrees 350-500 cd/m²
Viewing Direction ALL O'CLOCK
Technical Parameters
Item Standard Value Unit
Size 7 Inch
LCD Type Normally black --
Drive element TFT active matrix --
Number of pixels 800×3RGB(H)×1280(V) Dots
Pixel arrangement RGB stripe --
Pixel Pitch (W×H) 0.11775(H) × 0.11775(V) mm
Active area 94.2(H) × 150.72(V) mm
Mechanical Outline Size (W×H×T) 104.5(W) × 171.5(H) × 4.43(T) mm
Viewing direction ALL O'CLOCK -
LCM Driver IC NV3051F-L -
LCM pin count 40
Backlight LEDs 20 pcs
Backlight current 80 mA
Backlight voltage 15 V
Cover material Asahi Glass Tempered Glass
Touch Driver IC GT911 -
Touch Interface IIC
Operating temperature -20~70 ℃
Storage temperature -30~80 ℃
Lumens degrees 350-500 cd/m²
7-Inch TFT Display Module 900 nits High Brightness Normally Black 0 7-Inch TFT Display Module 900 nits High Brightness Normally Black 1
Production Line Specifications
Clean Room class 10k@0.8um, Pressure 0.8kgf
Antistatic floor, resistance: 1×10 ohm to 1×10 ohm
COG production lines: 4
Backlight production lines: 2
Existing machine capacity will be 1KK per month
7-Inch TFT Display Module 900 nits High Brightness Normally Black 2
Quality Assurance
In compliance with ISO9001:2015 Quality Management
One year's guarantee for unartificial damage
Key Features
Small LCD display screen
Reasonable price
Large capacity
Certificate ISO; Rohs, REACH
Dimension as customer request
STN blue small LCD display screen

7-Inch TFT Display Module 900 nits High Brightness Normally Black 3
