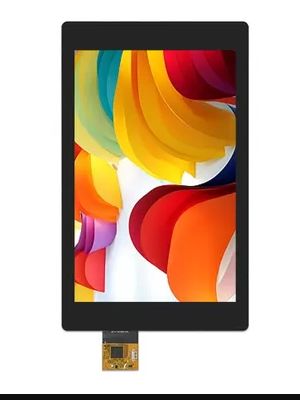

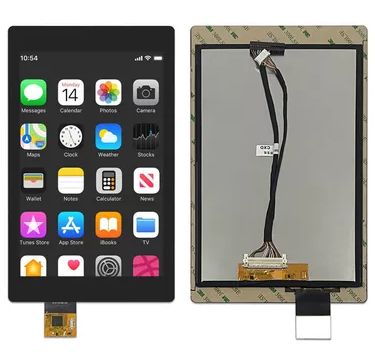

10.1-Inch 800×1280 High-Definition 300-500nits IPS LCD TFT Display Module LVDS
Key Specifications
| LCD Type |
Normally Black |
| Operating Temperature |
-20~70°C |
| Lumens Degrees |
300-500Cd/M² |
| Pixel Arrangement |
RGB Stripe |
| Drive Element |
TFT Active Matrix |
| Number Of Pixels |
800×3RGB(H)×1280(V) |
| Active Area |
135.36(H) × 216.576(V) mm |
| Size |
10.1 inches |
Technical Parameters
| Item |
Standard Value |
Unit |
| Size |
10.1 |
Inch |
| LCD Type |
Normally Black |
-- |
| Drive element |
TFT active matrix |
-- |
| Number of pixels |
800×3RGB(H)×1280(V) |
Dots |
| Pixel arrangement |
RGB stripe |
-- |
| Pixel Pitch (W×H) |
0.1692×0.1692 |
mm |
| Active area |
135.36(H) × 216.576(V) |
mm |
| Mechanical Outline Size (W×H×T) |
156×264×4.85 |
mm |
| Viewing direction |
ALL O'CLOCK |
- |
| LCM Driver IC |
NV3051F-L |
- |
| LCM interface |
LVDS |
- |
| LCM pin count |
30 |
- |
| Backlight LEDs |
32 |
pcs |
| Backlight current |
80 |
mA |
| Backlight voltage |
22.4-25.6 |
V |
| Cover material |
Asahi Glass |
- |
| Touch screen structure |
G+G |
- |
| Touch Driver IC |
ILI2511 |
- |
| Touch Interface |
USB |
- |
| Laminating process |
OCA |
- |
| Operating temperature |
50 |
℃ |
| Storage temperature |
50 |
℃ |
| Lumens degrees |
300-500 |
cd/㎡ |
Packaging & Shipping
Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements, with variations for different countries.
Shipping: Available via DHL, FedEx, EMS, UPS, air shipping, or sea shipping - customer's preferred method.
Payment Method:
Frequently Asked Questions
1. I want the LCD display 8 digits and the outline size is 65×30×2.8mm?
Answer: No problem. Please send us your specification/drawing. If unavailable, provide samples and we'll recommend suitable standard products or customize based on your requirements.
2. This LCD is what we want, but it's too large. Do you have smaller sizes?
Answer: For segment type LCD modules requiring size or display content modifications, new LCD glass modules with custom tooling are needed.
3. Can you make STN type instead of HTN type?
Answer: Yes, we can modify the display type per your request.
4. Can you customize a new LCD module?
Answer: Yes. Please provide drawings or specifications including outline size, display information, glass thickness, polarizer type, connector mode, temperature ranges, and drive conditions.
5. What is the lead time for tooling?
Answer: Typically 15-25 days after drawing confirmation and tooling payment. Exact timeline provided upon drawing approval.
6. Can you send samples for checking?
Answer: Yes, sample orders are available.
7. What is the lead time?
Answer: Standard products in stock ship within 1 day after payment. Custom mass production takes 15-30 days, with earlier completion updates when possible.
Our Services
- Free repair within one year after shipment
- Replacement within 30 days for product-related issues
- Custom logo printing and model number labeling
- Competitive shipping rates through established partnerships
- Professional technical support and responsive after-sales service
- Comprehensive quality inspection before shipment
- 24-hour response to inquiries and issues
- Custom LCD display solutions based on your specifications
Product Applications
Household Appliances: Refrigerators, air conditioners, water heaters, washing machines, microwave ovens, rice cookers, and other home electronics.
Communication Equipment: Telephones, interphones, fax machines, wireless WiFi devices.
Automotive Electronics: On-board entertainment systems, navigation, car audio, reverse cameras, anti-theft devices.
Instruments: Water/electric meters, multimeters, electronic scales, pressure/temperature meters, analytical instruments.
Fitness Equipment: Treadmills, exercise bikes, pedometers, electronic scales, blood pressure monitors.
Financial: POS machines, tax control cash machines, banknote counters, invoice printers.
Consumer Electronics: MP3/MP4 players, DVD players, electronic dictionaries, calculators, electronic clocks.
Features: High resolution, high definition, high brightness, cost-effective, energy efficient, wide temperature range operation (positive/negative).
