High Definition High Brightness LCD Module 800 X 1280 Resolution 1200cd/M2

1000
MOQ
DISCUSSABLE
Price
High Definition High Brightness LCD Module 800 X 1280 Resolution 1200cd/M2
Features Gallery Product Description Chat Now
Features
Specifications
LCM Interface: MIPI
Luminace: 1200cd/m2
Active Area: 94.2(H) * 150.72(V)
Operating Temperature: -20°C To 70°C
Fpc Pin Number: 40 Pins
Number Of Pixel: 800(RGB)*1280
Highlight:

High Definition LCD Screen Module

,

High Brightness LCD Module 1200cd/m2

,

800x1280 resolution LCD module
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
High Definition High Brightness LCD Module 800 X 1280 Resolution 1200cd/M2
High-Definition High Brightness 800 X 1280 LCD Display Module
Detail Information
IC/LCM Driver IC: ILI9881C
Drive Element: TFT Active Matrix
LCM Interface: MIPI Interface
Lcm Pin N Count: 40
Operating Temperature: -20~70°c
LCD Type: Normally Black

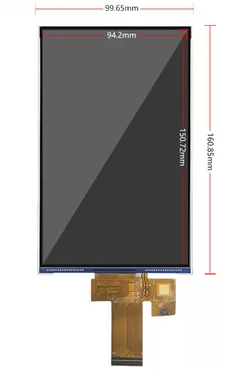

Mechanical OutlineSize(W*H*T): 99.65*160.85*2.4
Active Area: 94.2(H) * 150.72(V)
Technical Parameters:
ITEM Standard value Unit
size 7 Inch
LCD Type Normally black --
Drive element TFT active matrix --
Number of pixels 800*3RGB(H)X1280(V) Dots
Pixel arrangement RGB stripe --
Pixel Pitch (W*H) 0.11775(H) *0.11775(V) mm
Active area 94.2(H) * 150.72(V) mm
Mechanical OutlineSize(W*H*T) 99.65*160.85*2.4 mm
Viewing direction ALL O'CLOCK -
LCM Driver IC ILI9881C -
LCM interface MIPI Interface -
Lcm pin n count 40
Backlight leds 20 pcs
Backlight current 80 mA
Backligh voltage 30 V
operating temperature 50 ℃
storage temperature 50 ℃
Lumens degrees 1200 cd/㎡
High Definition High Brightness LCD Module 800 X 1280 Resolution 1200cd/M2 0 High Definition High Brightness LCD Module 800 X 1280 Resolution 1200cd/M2 1
Production Line:
  • Clean Room class 10k@0.8um, Pressurec 0.8kgf
  • Antistatic floor, resistance : 1x10 ohm to 1x10 ohm
  • COG production lines: 4
  • Backlight production lines: 2
  • Existing machine capacity will be 1KK per month
High Definition High Brightness LCD Module 800 X 1280 Resolution 1200cd/M2 2
In compliance with ISO9001: 2008 Quality Management
One year's guarantee for unartificial damage
High Definition High Brightness LCD Module 800 X 1280 Resolution 1200cd/M2 3
  • Small lcd display screen
  • Reasonable price
  • Large capacity
  • Certificate ISO; Rohs, REACH
  • Dimension as customer request
  • STN blue small lcd display screen

High Definition High Brightness LCD Module 800 X 1280 Resolution 1200cd/M2 4
