Home /Products/Small LCD Display/3.5 Inch 320x480 RGB TFT LCD Display with 400 cd/m² Brightness and IPS Panel

3.5 Inch 320x480 RGB TFT LCD Display with 400 cd/m² Brightness and IPS Panel

1000
MOQ
DISCUSSABLE
Price
3.5 Inch 320x480 RGB TFT LCD Display with 400 cd/m² Brightness and IPS Panel
Features Gallery Product Description Chat Now
Features
Specifications
Interface: 4Line SPI
Driver Lc: ILI9488
Active Area: 48.96(H)x73.44(V)
Brightness: 400 Cd/m²
Display Colors: 262K
Display Mode: Normally White
Backlight: LED Side-light Type
Operation Temperature: -20~70
Highlight:

3.5 Inch TFT LCD Display

,

320x480 RGB LCD Display

,

400 cd/m² IPS Panel
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description

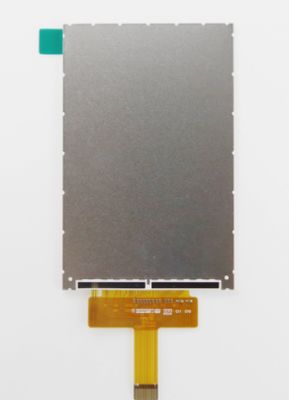

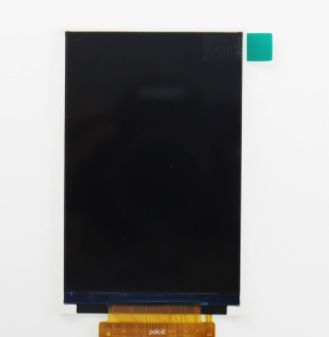

3.5 Inch 320x480 RGB TFT LCD Display with 400 cd/m² Brightness and IPS Panel
3.5 Inch Small TFT LCD Display 320x480 RGB Transmissive IPS Viewing Angle
3.5 Inch 320x480 RGB TFT LCD Display with 400 cd/m² Brightness and IPS Panel 0 3.5 Inch 320x480 RGB TFT LCD Display with 400 cd/m² Brightness and IPS Panel 1
Product Overview
3.5-inch 320x480 RGB transmissive IPS display with a small-sized TFT panel is a common display component found in portable electronic devices and industrial control fields.
Key Specifications
Parameter Value Unit
Screen Size 3.5 inch Diagonal
Number of Pixel 320RGB(H)x480(V) Pixels
Display area 48.96(H)x73.44(V) mm
Pixel pitch 0.153(H)x0.153(V) mm
Outline Dimension 54.48x84.71x2.20 mm
Display Color 262K --
Luminance 400 nit
Contrast Ratio 500:1 --
Interface 4Line SPI --
Drive IC ILI9488 --
Operation Temperature -20~70 ℃
Storage Temperature -30~80 ℃
Technical Features
  • Resolution: 320x480 pixels (153,600 total pixels)
  • Display Type: Transmissive TFT-LCD panel with constant black mode
  • Viewing Angle: IPS technology provides clear display from all angles (80°+ range)
  • Color Performance: 262K color display with high contrast ratio
  • Brightness: 400cd/m² suitable for various lighting conditions
  • Interface Options: 4Line SPI interface for easy microcontroller integration
  • Environmental Resistance: Operates in -20℃ to 70℃ range
Packaging & Shipping
Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Custom packaging available based on customer requirements and destination country regulations.
3.5 Inch 320x480 RGB TFT LCD Display with 400 cd/m² Brightness and IPS Panel 2
Shipping: Express (DHL, Fedex, EMS, UPS), air shipping, or sea shipping available based on customer preference.
3.5 Inch 320x480 RGB TFT LCD Display with 400 cd/m² Brightness and IPS Panel 3

3.5 Inch 320x480 RGB TFT LCD Display with 400 cd/m² Brightness and IPS Panel 4
