Home /Products/Small LCD Display/1.54 Inch Small TFT LCD Display 240*240 Dots ST7789 2.8V

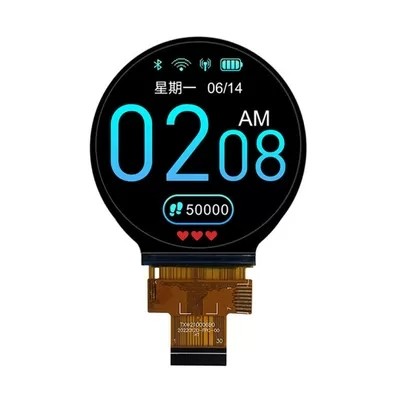

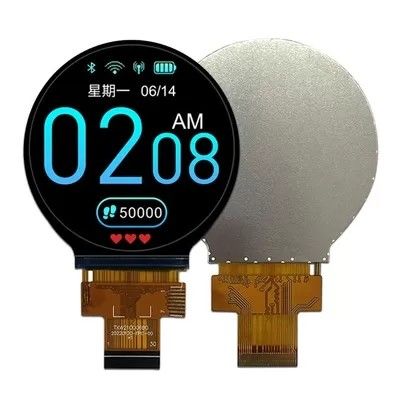

1.54 Inch Small TFT LCD Display 240*240 Dots ST7789 2.8V

1000
MOQ
DISCUSSABLE
Price
1.54 Inch Small TFT LCD Display 240*240 Dots ST7789 2.8V
Features Gallery Product Description Chat Now
Features
Specifications
Led Number: 3LEDs
Power Supply: 2.8V
Viewing Direction: 12 O'clock
Screen Size: 1.54 Inches
Driver Ic: ST7789T3
Lcd Resolution: 240x240 Pixels
Highlight:

240*240 Dots TFT LCD Display

,

ST7789 LCD Display

,

TFT LCD Display 2.8V
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
1.54 Inch Small TFT LCD Display 240*240 Dots ST7789 2.8V
Product Description

High-quality 1.54 inch TFT LCD display with 240×240 resolution, ST7789T3 driver IC, and SPI interface.

Detail Information
Panel Size: 1.54 Inch (Diagonal)
LCD Resolution: 240×240 Dots
Viewing Angle: All
Driver IC: ST7789T3
Interface: SPI
FPC: 15pin
Basic Parameters
NO. ITEM SPECIFICATIONS
1 Product Name 1.54 Inch TFT LCD
2 LCD Type IPS
3 Resolution 240×240 dots
4 Operating Temperature -20~+70℃
5 Storage Temperature -30~+80℃
6 FPC Connector 15PIN, ZIF type
7 Driver IC(COG) ST7789T3
8 Interface SPI
9 Backlight Type 3-LED, White
10 Luminance 250 cd/m²
11 Outline Dimension 31.52(H)×33.72(V)×1.92(D) mm
12 Active Area 27.72(H)×27.72(V) mm
1.54 Inch Small TFT LCD Display 240*240 Dots ST7789 2.8V 0 1.54 Inch Small TFT LCD Display 240*240 Dots ST7789 2.8V 1 1.54 Inch Small TFT LCD Display 240*240 Dots ST7789 2.8V 2
Packaging & Shipping

Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements.

1.54 Inch Small TFT LCD Display 240*240 Dots ST7789 2.8V 3

Shipping: Express via DHL, Fedex, EMS, UPS, air shipping, or sea shipping. Any shipping method available.

1.54 Inch Small TFT LCD Display 240*240 Dots ST7789 2.8V 4

Payment Method: Various payment options available.

1.54 Inch Small TFT LCD Display 240*240 Dots ST7789 2.8V 5
FAQ
1. I want the LCD display 8 digits and the outline size is 65×30×2.8mm?

Answer: Please send us your specification/drawing. If unavailable, we can recommend suitable standard products or customize based on your requirements.

2. This LCD is what we want but too large. Do you have smaller sizes?

Answer: For segment type LCD modules, modifying size or display content requires new tooling.

3. This LCD display is HTN type, but I want STN type. Can you make?

Answer: Yes, we can modify the display type per your request.

4. I want to customize a new LCD module. Can you do?

Answer: Yes. Please provide your drawing or specifications including outline size, display information, and technical requirements.

5. What is the lead time for tooling?

Answer: Typically 15-25 days after drawing confirmation and tooling payment.

6. Can you send samples for checking?

Answer: Yes, sample orders are available.

7. What is the lead time?

Answer: 1 day for standard products in stock. 15-30 days for mass production of special orders.

Our Services
  • Free repair within one year after shipment
  • Replacement within 30 days for product issues
  • Custom logo and model number printing
  • Competitive shipping rates through partner carriers
  • Professional technical support and after-sales service
  • Rigorous quality inspection before shipment
  • 24-hour response to customer inquiries
  • Custom LCD display solutions available
Product Applications
  • Household appliances: refrigerators, air conditioners, washing machines, etc.
  • Communication equipment: telephones, interphones, fax machines
  • Automotive electronics: entertainment systems, navigation, cameras
  • Instruments: water meters, electric meters, multimeters
  • Fitness equipment: treadmills, training devices, pedometers
  • Financial: tax control machines, POS systems
  • Consumer electronics: MP3 players, electronic dictionaries, calculators

1.54 Inch Small TFT LCD Display 240*240 Dots ST7789 2.8V 6
