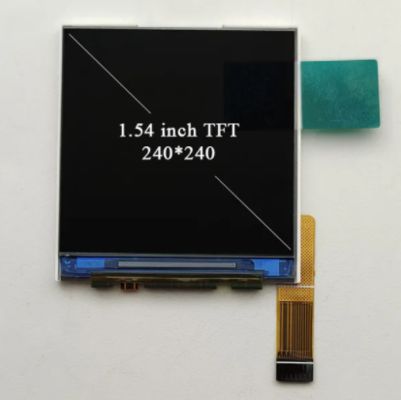

1.54 Inch TFT Small LCD Screen 240*240 Dots ST7789 2.8V 15pin FPC SPI
High-quality 1.54-inch TFT LCD display with 240×240 resolution, ST7789T3 driver IC, and SPI interface. Ideal for various industrial and consumer applications.
Detail Information
| Panel Size: |
1.54 Inch (Diagonal) |
| LCD Resolution: |
240×240 Dots |
| Viewing Angle: |
All |
| Driver IC: |
ST7789T3 |
| Interface: |
SPI |
| FPC: |
15pin |
Basic Parameters
| NO. |
ITEM |
SPECIFICATIONS |
| 1 |
Product Name |
1.54 Inch TFT LCD |
| 2 |
LCD Type |
IPS |
| 3 |
Resolution |
240×240 dots |
| 4 |
Operating Temperature |
-20~+70℃ |
| 5 |
Storage Temperature |
-30~+80℃ |
| 6 |
FPC Connector |
15PIN, ZIF type |
| 7 |
Driver IC(COG) |
ST7789T3 |
| 8 |
Interface |
SPI |
| 9 |
Backlight Type |
3-LED, White |
| 10 |
Luminance |
250 cd/m² |
| 11 |
Outline Dimension |
31.52(H)×33.72(V)×1.92(D) mm |
| 12 |
Active Area |
27.72(H)×27.72(V) mm |
Packaging & Shipping
Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements, with variations based on country-specific regulations.
Shipping: Available via DHL, FedEx, EMS, UPS, air shipping, or sea shipping. Customers can choose preferred shipping method.
Payment Method:
Frequently Asked Questions
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
No problem. Please send us your specification/drawing. If unavailable, we can recommend suitable standard products or customize based on your requirements.
2. This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
For segment type LCD modules requiring size or content modifications, new LCD glass modules with custom tooling are required.
3. This LCD display is HTN type, but I want STN type, can you make?
Yes, we can modify the display type according to your requirements.
4. I want to customize a new LCD module. Can you do?
Yes, we can customize based on your specifications. Please provide your drawing or details including outline size, display information, glass thickness, polarizer type, connector mode, temperature requirements, and drive conditions.
5. What is leading time for tooling?
Typically 15-25 days after drawing confirmation and tooling payment. Exact timeline will be confirmed upon drawing approval.
6. Can you send us samples for checking?
Yes, sample orders are available.
7. What is the Leading Time?
Standard products in stock ship within 1 day after payment. Custom mass production typically takes 15-30 days, with earlier completion updates when possible.
Our Services
- Free repair within one year after shipment
- Replacement within 30 days for product defects
- Custom logo and model number printing available
- Discounted shipping rates through established partnerships
- Professional technical support and responsive after-sales service
- Rigorous quality control with pre-shipment inspection
- 24-hour response time for customer inquiries
- Customization services available based on customer specifications
Product Applications
- Household appliances: Refrigerators, air conditioners, washing machines, microwave ovens, water heaters
- Communication equipment: Telephones, interphones, fax machines, wireless devices
- Automotive electronics: On-board entertainment systems, navigation, cameras, anti-theft devices
- Instruments: Water meters, electric meters, multimeters, analytical instruments
- Fitness equipment: Treadmills, fitness bikes, electronic scales, sphygmomanometers
- Financial equipment: POS machines, banknote counters, tax control devices
- Consumer electronics: MP3/MP4 players, electronic dictionaries, calculators, electronic clocks
Features: High resolution, high definition, high brightness, cost-effective, energy efficient, wide temperature range operation (both positive and negative displays available).
