Features

Specifications

Interface: MCU 8/16bit

Viewing Direction: All

Pixel Size: 0.18(H)x0.18(V)

Dimensions: 50.00x69.20x2.30

Display Color: 262k

Drive IC: ST7789V

Screen Size: 2.8inch

Brightness: 300 Cd/m2

Highlight:

MCU 8/16bit Interface TFT LCD Display

262K Display Color Small LCD Screen

43.20x57.60mm Display Area IPS LCD Panel

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

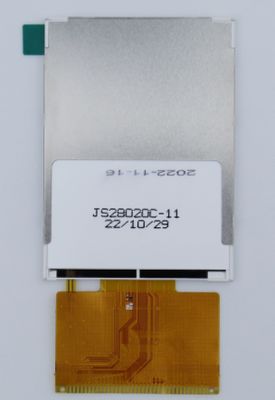

2.8 Inch 240x320 TFT LCD Display with MCU 8/16bit Interface and 262K Display Color

Product Description

2.8 Inch 240x320 TFT LCD Display with MCU 8/16bit Interface and 262K Display Color

Full Color 2.8 Inch 240x320 Small TFT LCD Display RGB Screen IPS All Viewing. This 2.8-inch TFT LCD display features 240x320 resolution with IPS technology for wide viewing angles and accurate color reproduction. Ideal for industrial, medical, and consumer electronics applications.

Key Specifications

Parameter	Value
Screen Size	2.8 Inch (diagonal)
Resolution	240RGB(H) × 320(V)
Display Area	43.20(H) × 57.60(V) mm
Brightness	300 cd/m²
Interface	MCU 8/16bit
Driver IC	ST7789V

Detailed Technical Specifications

Item	Specification	Unit
Pixel Pitch	0.18 × 0.18	mm
Outline Dimension	50.00 × 69.20 × 2.30	mm
Pixel Arrangement	RGB Vertical Stripe	--
Display Mode	Normally Black	--
Viewing Direction	ALL	--
Display Color	262K	--
Contrast Ratio	500:1	--
Back-light	LED Side-light type	--
Operation Temperature	-20 ~ 70	℃
Storage Temperature	-30 ~ 80	℃

Product Features

IPS Technology: Wide viewing angles with minimal color deviation from any direction
High Resolution: 240×320 pixels with 0.18×0.18mm pixel pitch for sharp display
Multiple Interfaces: Supports SPI serial port and 8/16-bit MCU parallel port
Excellent Color: 262K color depth with accurate color reproduction
Wide Temperature Range: Operates from -20℃ to +70℃
High Brightness: 300 cd/m² brightness with 500:1 contrast ratio

Applications

Industrial Control: Automation equipment, instruments and meters
Smart Home: Smart door locks, appliance control panels
Consumer Electronics: MP3 players, electronic dictionaries, portable game consoles
Medical Equipment: Portable diagnostic devices, medical monitors

Frequently Asked Questions

Can I get a custom LCD display with different dimensions?

Yes, we can customize the LCD display based on your specifications. Please provide your drawing or sample for reference.

Can you modify the display type (e.g., from HTN to STN)?

Yes, we can change the display type according to your requirements.

What is the lead time for custom LCD modules?

Tooling typically takes 15-25 days after drawing confirmation and payment. Mass production takes 15-30 days.

Do you provide samples?

Yes, we can provide samples of our standard products for evaluation.
