Home /Products/Small LCD Display/2.8 Inch 240x320 IPS Small LCD Display with 15 Pin SPI Interface

2.8 Inch 240x320 IPS Small LCD Display with 15 Pin SPI Interface

1000
MOQ
DISCUSSABLE
Price
2.8 Inch 240x320 IPS Small LCD Display with 15 Pin SPI Interface
Features Gallery Product Description Chat Now
Features
Specifications
Interface: 4wire SPI
Display Mode: Normally Black
Outline Dimension: 50.00x69.20x2.30mm
Driver Lc: ST7789V
Screen Size: 2.8"
Lcd Type: TFT
Fpc: 15pin
Active Screen Size: 43.20(H)x57.60(V)
Highlight:

SPI Interface Small LCD Display

,

2.8 Inch IPS LCD Screen

,

240x320 IPS LCD Panel
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
2.8 Inch 240x320 IPS Small LCD Display with 15 Pin SPI Interface
2.8'' 15 Pin 240x320 IPS Small LCD Touch Display Panel All View Angle

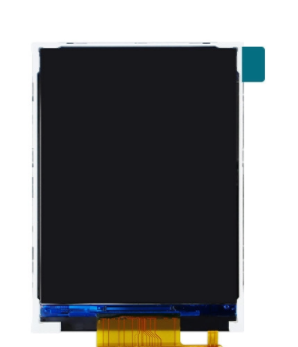

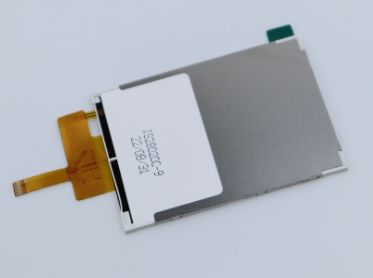

2.8 Inch 240x320 IPS Small LCD Display with 15 Pin SPI Interface 0 2.8 Inch 240x320 IPS Small LCD Display with 15 Pin SPI Interface 1
Product Overview

2.8-inch 15-pin 240x320 IPS small LCD touch display panel is a high-quality display screen designed for small electronic devices requiring excellent visibility and touch functionality.

Key Features
  • IPS Technology: Full viewing angle with consistent color and clarity from all directions
  • High Resolution: 240x320 pixel resolution for sharp image and text display
  • Multiple Interfaces: Supports SPI, MCU, and RGB interfaces for flexible connectivity
  • Touch Function: Capacitive touch screen with fast response and smooth operation
  • Wide Temperature Range: Operates from -20°C to 70°C, suitable for various environments
  • High Brightness: 300cd/m² standard brightness with high-brightness options available
Technical Specifications
Parameter Specification Unit
Screen Size 2.8 inch Diagonal
Resolution 240RGB(H) × 320(V) Pixels
Display Area 43.20(H) × 57.60(V) mm
Pixel Pitch 0.180(H) × 0.180(V) mm
Outline Dimension 50.00 × 69.20 × 2.30 mm
Display Mode Normally Black --
Viewing Direction ALL --
Display Color 262K --
Brightness 300 nit
Contrast Ratio 1200:1 --
Interface 4-wire SPI --
Driver IC ST7789V --
Operating Temperature -20 ~ 70 ℃
Storage Temperature -30 ~ 80 ℃
Our Services
  • Free repair within one year after shipment
  • Replacement within 30 days for defective products
  • Custom logo and model number printing available
  • Competitive shipping rates through established partnerships
  • Professional technical support and responsive after-sales service
  • Rigorous quality control with pre-shipment testing
  • 24-hour response time for customer inquiries
  • Custom LCD display solutions based on your specifications

2.8 Inch 240x320 IPS Small LCD Display with 15 Pin SPI Interface 2
