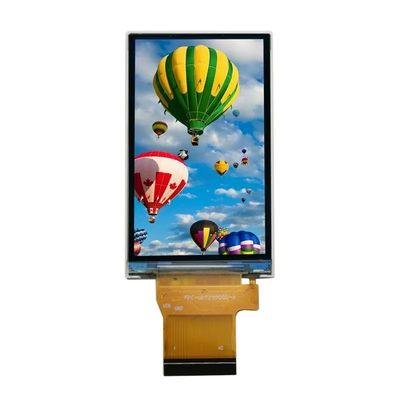

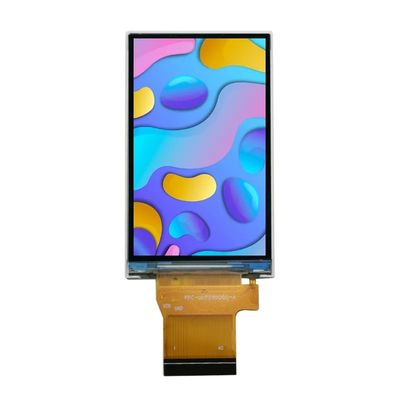

High Resolution 2.95 Inch Small LCD Display 480x854 Pixels With RGB MIPI Interface
Product Description
High Resolution 2.95 Inch Small LCD Display 480x854 Pixels With RGB+MIPI Interface
LCD Parameters
| NO. |
ITEM |
SPECIFICATIONS |
| 1 |
Product Name |
2.95-inch Rectangular TFT LCD Display |
| 2 |
Display Mode |
Normal black |
| 3 |
Viewing Direction |
All |
| 4 |
Resolution |
480x854 dots |
| 5 |
Operating Temperature |
-20~+70℃ |
| 6 |
Storage Temperature |
-30~+80℃ |
| 7 |
FPC Connector |
40 pins, ZIF type |
| 8 |
Contrast Ratio |
1200 |
| 9 |
Brightness |
300 cd/m2 |
| 10 |
Interface |
MIPI/ RGB |
| 11 |
Backlight Type |
6 LEDs, White, parallel |
| 12 |
Backlight Power |
20mA |
| 13 |
Outline Dimension |
42.7(W)* 74.7(H)* 2.1(T) mm |
| 14 |
Active Area |
36.72(W)* 65.28(H) mm |
| 15 |
Driver IC |
ST7701S |
| 16 |
Touch Screen |
Without |
Detail Information
| LCD Type: |
TFT |
| Panel Size: |
2.95 Inch (Diagonal) |
| Panel Type: |
IPS |
| Resolution: |
480*854 Pixels |
| Luminance: |
300 Cd/M2 |
| Driver IC: |
ST7701S |
| Interface: |
MIPI And RGB |
Packaging & Shipping
Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements, which may vary by country.
Shipping: Express options include DHL, Fedex, EMS, UPS, as well as air and sea shipping. Any shipping method can be accommodated.
Payment Method
FAQ
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
Answer: We can accommodate this request. Please send us your specifications or drawing. If unavailable, we can recommend suitable standard products or customize based on your requirements.
2. This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
Answer: For segment type LCD modules requiring size or content modifications, we would need to create new tooling for a custom LCD glass module.
3. This LCD display is HTN type, but I want STN type, can you make?
Answer: Yes, we can modify the display type according to your requirements.
4. I want to customize a new LCD module. Can you do?
Answer: Yes, we offer customization services. Please provide your drawing or specifications including outline size, display information (glass thickness, polarizer, display type, connector mode, temperature ranges, viewing direction, drive condition).
5. What is lead time for tooling?
Answer: Typically 15 to 25 days after drawing confirmation and tooling payment. Exact timeline will be confirmed upon drawing approval.
6. Can you send us samples for checking?
Answer: Yes, sample orders are available.
7. What is the Lead Time?
Answer: For standard products in stock, lead time is one day after payment. For special mass production orders, lead time is typically 15-30 days. We will inform you if we can complete earlier.
Our Services
- Free repair within one year after shipment
- Replacement within 30 days for product-related issues
- Custom logo printing and model number labeling
- Competitive shipping rates through established partnerships
- Professional technical support and responsive after-sales service
- Rigorous quality control with engineer inspection before shipment
- 24-hour response time for customer inquiries
- Customization services available based on your specifications
Product Applications
- Household appliances: refrigerators, air conditioners, fans, heaters, water heaters, electric blankets, air purifiers, washing machines, dryers, vacuum cleaners, range hoods, microwave ovens, cookers, electric ovens, rice cookers, water dispensers, tea sets
- Communication equipment: telephones, intercoms, fax machines, wireless wifi devices
- Automotive electronics: entertainment systems, diagnostic tools, navigation systems, audio systems, reverse radar, cameras, anti-theft devices
- Instruments: water meters, electric meters, multimeters, electronic scales, pressure meters, temperature meters, flow meters, display instruments
- Fitness equipment: treadmills, exercise bikes, training devices, pedometers, body fat analyzers, electronic blood pressure monitors, scales
- Financial equipment: POS systems, tax control cash machines, cheque printers, banknote counters
- Consumer electronics: MP3/MP4 players, DVDs, electronic dictionaries, e-readers, learning devices, electronic organs, clocks, calculators
Features: high resolution, high definition, high brightness, cost-effective, energy efficient, wide temperature range operation (-20℃ to +70℃), available in positive or negative display options.
