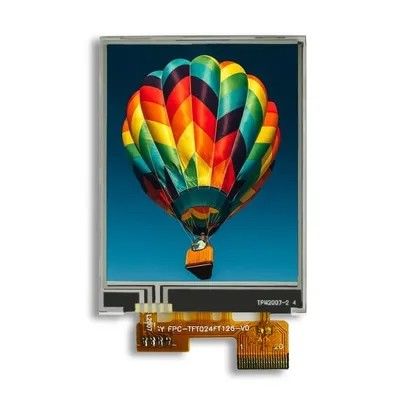

2.4 Inch TFT Touch Screen TN 240x320 ST7789V 20pin SPI With Resistive Touch

1000
MOQ
DISCUSSABLE
Price
2.4 Inch TFT Touch Screen TN 240x320 ST7789V 20pin SPI With Resistive Touch
Features Gallery Product Description Chat Now
Features
Specifications
Name: 2.4 Inch TFT Touch Screen
Screen_Type: TFT LCD
Display Scale: 4:3
Resolution: 240x320 Dots
Touth: Resistive
Active Area: 36.72(H)* 48.96(V) Mm
Interface: SPI
Highlight:

2.4 Inch TFT Touch Screen 20pin

,

2.4 Inch TFT Touch Screen TN

,

Display LCD TFT 2.4 Touchscreen
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Model Number: BBI-001
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
2.4 Inch TFT Touch Screen TN 240x320 ST7789V 20pin SPI With Resistive Touch
Product Description
TFT LCD Technology
  • Active Matrix Display: The TFT (Thin-Film Transistor) technology allows for bright, colorful, and sharp images with relatively good contrast.
  • Color Depth: Typically 16-bit color (65,536 colors), which provides vibrant and clear visuals.
  • LED Backlight: The display uses an LED backlight for better visibility in different lighting conditions.
Resistive Touchscreen
  • Resistive technology uses two conductive layers separated by a small gap. When the screen is pressed, the two layers make contact, and the device detects the location of the touch based on the voltage change.
  • Pressure Sensitivity: Unlike capacitive touchscreens, which respond to electrical fields from fingers, resistive screens can be activated with any object that applies pressure, such as a stylus, finger, or even a gloved hand.
  • Lower Sensitivity to Environmental Factors: Resistive touchscreens tend to be more robust in outdoor or industrial environments, as they are less sensitive to external factors like moisture, dust, or electrical interference.
Basic Parameters
NO. ITEM SPECIFICATIONS
1 Product Name 2.4 Inch TFT LCD touch screen
2 LCD Type TN, Transmissive
3 Viewing Angle 12 O'clock
4 Resolution 240x320 dots
5 Operating Temperature -20~+70℃
6 Storage Temperature -30~+80℃
7 FPC Connector 20PIN, ZIF type
8 Driver IC(COG) ST7789V
9 Interface SPI
10 Backlight Type 4-LED, White, 80mA
11 Outline Dimension 42.72(H)* 60.26(V)* 3.35(D) mm
12 Active Area 36.72(H)* 48.96(V) mm
2.4 Inch TFT Touch Screen TN 240x320 ST7789V 20pin SPI With Resistive Touch 0
2.4 Inch TFT Touch Screen TN 240x320 ST7789V 20pin SPI With Resistive Touch 1
2.4 Inch TFT Touch Screen TN 240x320 ST7789V 20pin SPI With Resistive Touch 2
Application Fields
  • Audio product
  • Medical Equipment
  • Industrial product (watermeter, electronicmeter, Equipment)
  • Automobiles
  • Sports Equipment
  • Watches
  • Household appliance (air condition/wash machine/electronic cooler/ refrigerator/disinfection cabinet/ wash bowl machine/ calculator /electronic scale etc.)
Production Line
  • Clean Room class 10k@0.8um, Pressure 0.8kgf
  • Antistatic floor, resistance: 1x10 ohm to 1x10 ohm
  • COG production lines: 4
  • Backlight production lines: 2
  • Existing machine capacity will be 1KK per month
2.4 Inch TFT Touch Screen TN 240x320 ST7789V 20pin SPI With Resistive Touch 3
2.4 Inch TFT Touch Screen TN 240x320 ST7789V 20pin SPI With Resistive Touch 4
2.4 Inch TFT Touch Screen TN 240x320 ST7789V 20pin SPI With Resistive Touch 5
Quality Assurance
  • In compliance with ISO9001 Quality Management
  • One year's guarantee for unartificial damage
  • Certificate: ISO; Rohs, REACH
Key Advantages
  • Small LCD display screen
  • Reasonable price
  • Large capacity
  • Dimension as customer request
  • STN blue small LCD display screen

2.4 Inch TFT Touch Screen TN 240x320 ST7789V 20pin SPI With Resistive Touch 6
