2.15 Inch 128x64 LCD Display 2.8V with 10 Pin FPC and 6 o'clock Viewing Angle

1000
MOQ
DISCUSSABLE
Price
2.15 Inch 128x64 LCD Display 2.8V with 10 Pin FPC and 6 o'clock Viewing Angle
Features Gallery Product Description Chat Now
Features
Specifications
Drive Method: 1/64 Duty, 1/7 Bias
Viewing Angle: 6 O'clock
Connector: 10 Pin Socket Type
Operating Temperature: -10°C To 60°C
Storage Temperature: -20°C To 70°C
Lcd Type: STN(Gray), Positive
Backlight Type: LED
Backlight Color: White
Highlight:

10 Pin FPC LCD Display

,

6 o'clock Viewing Angle Graphic LCD Display

,

128x64 LCD Display 2.8V
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description

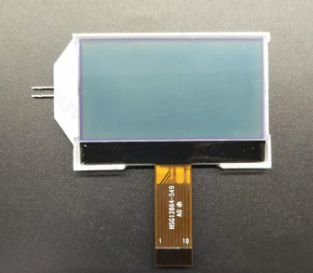

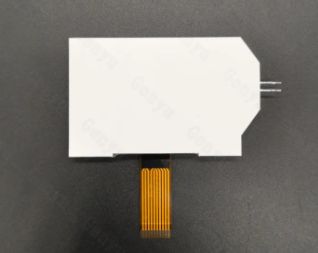

2.15 Inch 128x64 LCD Display 2.8V with 10 Pin FPC and 6 o'clock Viewing Angle
This high-quality 2.15-inch LCD display features STN technology with positive display type, COG+FPC construction, and SPI interface for reliable performance in various applications.
Key Characteristics
  • Resolution: 128x64 pixels for displaying both text and graphics
  • Graphical Capability: Supports custom graphics unlike character LCDs
  • Backlighting: LED backlight (white) for improved visibility
  • Power Consumption: Energy-efficient design ideal for battery-powered devices
  • Viewing Angle: 6 o'clock orientation with better visibility than standard TN displays
Detailed Specifications
LCD Type STN(Gray), Positive
Viewing Angle 6 O'clock
Driver IC ST7567
FPC 10pin
Interface SPI
Voltage 2.8V
Resolution 128x64 dots
Operating Temperature -10~+60℃
Outline Dimension 65.30(W)*40.70(H)*5.85(T) mm
Active Area 48.61(W)*24.93(H) mm
STN LCD Technology
STN (Super Twisted Nematic) LCD technology features liquid crystals arranged in a twisted orientation, offering:
  • Better contrast and wider viewing angles than standard TN displays
  • Faster response times for improved performance
  • Monochrome display with optional backlight colors
  • Improved visibility in various lighting conditions
2.15 Inch 128x64 LCD Display 2.8V with 10 Pin FPC and 6 o'clock Viewing Angle 0 2.15 Inch 128x64 LCD Display 2.8V with 10 Pin FPC and 6 o'clock Viewing Angle 1

2.15 Inch 128x64 LCD Display 2.8V with 10 Pin FPC and 6 o'clock Viewing Angle 2
