Features

Specifications

Name: Graphic LCD Display

Lcd Type: FSTN(Black-white), Positive

Display Size: 128x64 Pixels

Vdd: 3.0V

Brightness: ＞100 Cd/m2

Operating Temperature: -20°C To 70°C

Interface: SPI

Highlight:

2.9 Inch 128x64 LCD Display

12864 LCD Screen

18 Pin LCD Display SPI Interface

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

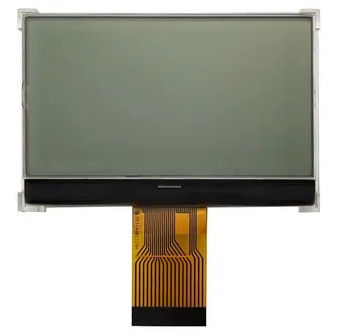

2.9 Inch 128x64 LCD Display FSTN Black White Transflective 18 Pin LCD Display SPI Interface

Product Description

2.9 Inch 128x64 LCD Display FSTN Black White Transflective 18 Pin LCD Display SPI Interface

Product Overview

This 128x64 graphic LCD display features an FSTN (Black-white) transflective screen with SPI interface. The 2.9-inch display is ideal for embedded systems and portable electronics requiring compact graphical or text-based output.

Key Features

Low power consumption compared to OLED or TFT displays
Transflective polarizer type for improved visibility
SPI interface with ST7565R-G driver IC
White LED backlight (4 LEDs) with >100 cd/m² luminance
Wide operating temperature range: -20°C to +70°C

Technical Specifications

Product Name	COG Graphic LCD Display
Model Brand	Bibuke
LCD Type	FSTN (Black-white), Positive
Resolution	128x64 dots
Working Voltage	3.0V
Interface	SPI
Outline Dimension	77.4(W) × 52.4(H) × 6.5(T) mm
View Area	70(W) × 43(H) mm
Dot Size	0.48(W) × 0.48(H) mm

Frequently Asked Questions

Can this LCD display be customized?

Yes, we can customize the display based on your specifications. Please provide your requirements or samples for reference.

What is the lead time for custom orders?

Typically 15-25 days after confirmation of drawings and payment of tooling charges.

Are samples available?

Yes, sample orders are available for standard products.

Packaging & Shipping

Products are packaged in carton boxes, cupboard, EPE, or blister trays depending on size and customer requirements. We support various shipping methods including DHL, FedEx, EMS, UPS, air and sea shipping.

Applications

Household appliances: refrigerators, air conditioners, washing machines
Automotive electronics: navigation systems, dash displays
Industrial instruments: measuring devices, control panels
Medical equipment: monitoring devices
Consumer electronics: calculators, portable devices
